Wishbonesuspension wheel bearing housing front pr 2 e 1 aaa — Mk3 Golf Front Axle (1997)

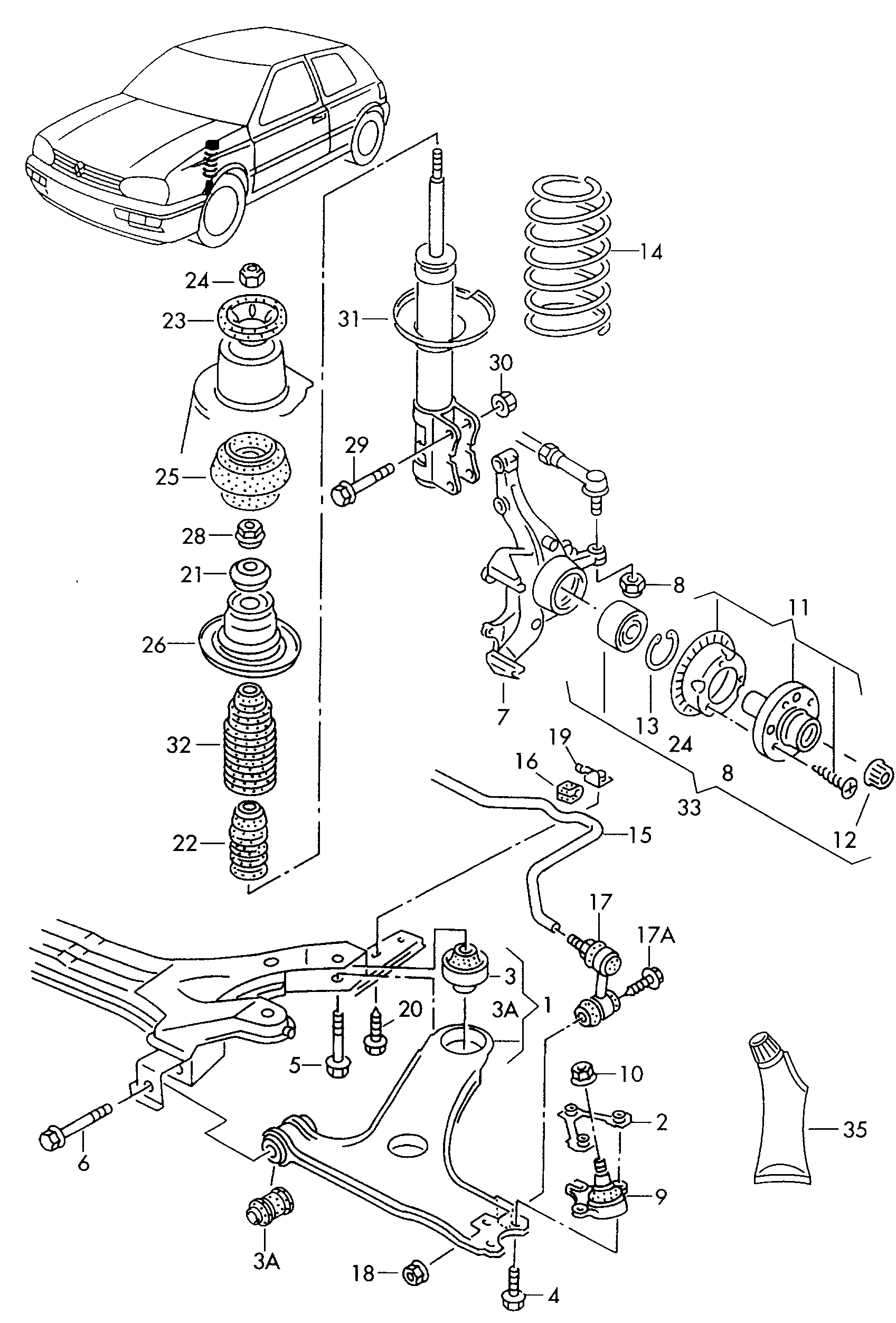

Factory title: Volkswagen Golf (1997 - 1998) - Wishbone. Wheel bearing housing. suspension
Wishbonesuspension wheel bearing housing front pr 2 e 1 aaa for the Volkswagen Golf Mk3 (1997): factory exploded diagram 407015 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 65 OEM part numbers across 66 catalogued positions including 1H0 614 150, N 102 316 01 and 1H0 407 152. Parts on this plate carry the engine codes ABF, AFN, AGG and AKR. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 65 OEM part numbers across 66 numbered positions.
| № | Description | Part number |
|---|---|---|
| Wishbonesuspension Wheel bearing housing front PR:2 E 1:AAA,ABF;PR:E 2 U:AFN;GTI:AGG,AKR front AKR | — | |
| - | rotor for speed sensor | 1H0 614 150 |
| - | countersunk bolt M 6 X 16 M 6 X 16 | N 102 316 01 |
| (1) | Wishbone | 1H0 407 152 |
| (14) | Coil spring 4 colour strokes 3 paint marks "BR.","CN.","GUS" | 357 411 105 R |
| (14) | Coil spring 1 paint mark 1 paint mark AGG,AKR AGGAKR | 6N0 411 105 B |
| (14) | Coil spring 1 paint mark 2 paint marks AAA;Air cond.+AAA | 1J0 411 105 AG |
| (14) | Coil spring 1 paint mark 4 colour strokes AAA;Air cond.+AAA | 1H0 411 105 E |
| (14) | Coil spring 1 paint mark 1 paint mark GTI 16 V:ABF ABF | 1J0 411 105 AF |
| (14) | Coil spring 2 paint marks 2 paint marks AGG,AKR AGGAKR | 1J0 411 105 BH |
| (14) | Coil spring 1 paint mark 3 paint marks GTI 16 V:ABF ABF | 1H0 411 105 D |
| (14) | Coil spring 1 paint mark 1 paint mark AFN AFN | 1H9 411 105 K |
| (14) | Coil spring 3 paint marks 1 paint mark Automatic+AAA | 357 411 105 P |
| (15) | Anti-roll bar 20 MM PR:0 AK 20 MM | 1H0 411 309 H |
| (15) | Anti-roll bar 20 MM PR:E 2 U:AFN 20 MM | 1H0 411 309 H |
| (16) | Rubber bush | 191 411 314 |
| (31) | Gas shock absorber 'ECO'Economy(use in pairs only)F 1 H-V-060 001>>* | JZW 413 031 AA |
| (31) | Shock absorbers F 1 H-V-060 001>>* | 1H0 413 031 Q |
| (31) | Gas shock absorber 'ECO'Economy(use in pairs only)F >> 1 H-V-060 000* | JZW 413 031 AA |
| (7) | Wheel bearing housing | 1H0 407 256 |
| 1 | Wishbone | 1H0 407 151 A |
| 10 | Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5 | N 903 237 03 |
| 10 | Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5 | N 903 237 04 |
| 11 | wheel hub with rotor 5/100 5/100 | 1H0 407 613 B |
| 12 | 12 point socket shouldered nutself-locking M 20 X 1,5 M 20 X 1,5 | N 905 876 01 |
| 12 | 12 point socket shouldered nutself-locking M 20 X 1,5 M 20 X 1,5 | N 905 876 02 |
| 13 | Securing ring 72 X 2 72 X 2 | N 903 293 01 |
| 14 | Coil spring 1 paint mark 2 paint marks Air cond.+AGG,AKR AKR | 1H0 411 105 C |
| 14 | Coil spring 1 paint mark 2 paint marks Air cond.+AGG,AKR AKR | 1J0 411 105 BG |
| 15 | Anti-roll bar 1 paint mark 20 MM PR:0 AC,0 AD 20 MM | 1H0 411 309 F |
| 16 | Rubber bush D=19 MM D=19 MM | 1H0 411 314 |
| 17 | Coupling rod | 535 411 315 |
| 17A | Hexagon bolt M 8 X 45 M 8 X 45 | N 019 504 3 |
| 18 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 03 |
| 19 | Clamp | 191 411 334 |
| 2 | Retaining plate | 1J0 407 175 |
| 2 | Retaining plate | 1H0 407 175 A |
| 20 | Hex collared bolt M 8 X 18 M 8 X 18 | N 019 538 2 |
| 21 | Deep groove ball thrust bearng | 1J0 412 249 |
| 21 | Deep groove ball thrust bearng | 357 412 249 |
| 22 | rubber stop forshock absorber 83 X 18 83 X 18 | 357 412 303 F |
| 23 | Stop | 357 412 319 B |
| 24 | hexagon nut, self-locking M 14 X 1,5 M 14 X 1,5 | N 022 150 1 |
| 25 | suspension strut storage | 357 412 331 A |
| 26 | spring disc | 357 412 341 A |
| 28 | Threaded bush M 14 X 1,5 M 14 X 1,5 | 1H0 412 365 A |
| 29 | Hex collared bolt BM 12 X 1,5 X 58 BM 12 X 1,5 X 58 | N 101 740 01 |
| 29 | Hex collared bolt M 12 X 1,5 X 58 X 25 M 12 X 1,5 X 58 X 25 | N 101 740 02 |
| 3 | Bonded rubber bush | 191 407 181 E |
| 3 | Bonded rubber bush | 191 407 181 D |
| 30 | Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5 | N 903 237 04 |
| 31 | Shock absorbers F >> 1 H-V-060 000* | 1H0 413 031 L |
| 32 | Bellows 221,5 MM 221,5 MM | 357 413 175 A |
| 33 | Wheel bearing with assemblyparts | 1H0 498 625 |
| 35 | universal grease 120 G 120 G | G 052 735 A2 |
| 3A | Bonded rubber bush | 357 407 182 |
| 4 | Hexagon bolt M 8 X 26 M 8 X 26 | N 101 277 02 |
| 4 | Hex collared bolt M 8 X 26 M 8 X 26 | N 101 277 06 |
| 5 | Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78 | N 102 078 01 |
| 5 | Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78 | N 102 078 03 |
| 6 | Hexagon bolt M 12 X 1,5 X 82 M 12 X 1,5 X 82 | N 904 840 03 |
| 6 | Hexagon bolt M 12 X 1,5 X 82 M 12 X 1,5 X 82 | N 904 840 01 |
| 7 | Wheel bearing housing | 1H0 407 255 |
| 8 | hexagon nut, self-locking M 12 X 1,5 M 12 X 1,5 | N 903 213 01 |
| 8 | hexagon nut, self-locking M 12 X 1,5 M 12 X 1,5 | N 903 213 02 |
| 9 | Guide joint | 1H0 407 365 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front axle diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- ABF, AFN, AGG, AKR
- Factory group
- 40 Front axle
- Factory subgroup
- 407015
