Charge air cooler — MK2 Golf Fresh Air Intake (1986 - 1991)
Factory title: Volkswagen Golf/Var.-syn./Rall./Coun. (1986 - 1991) - Vane pump. for power steering

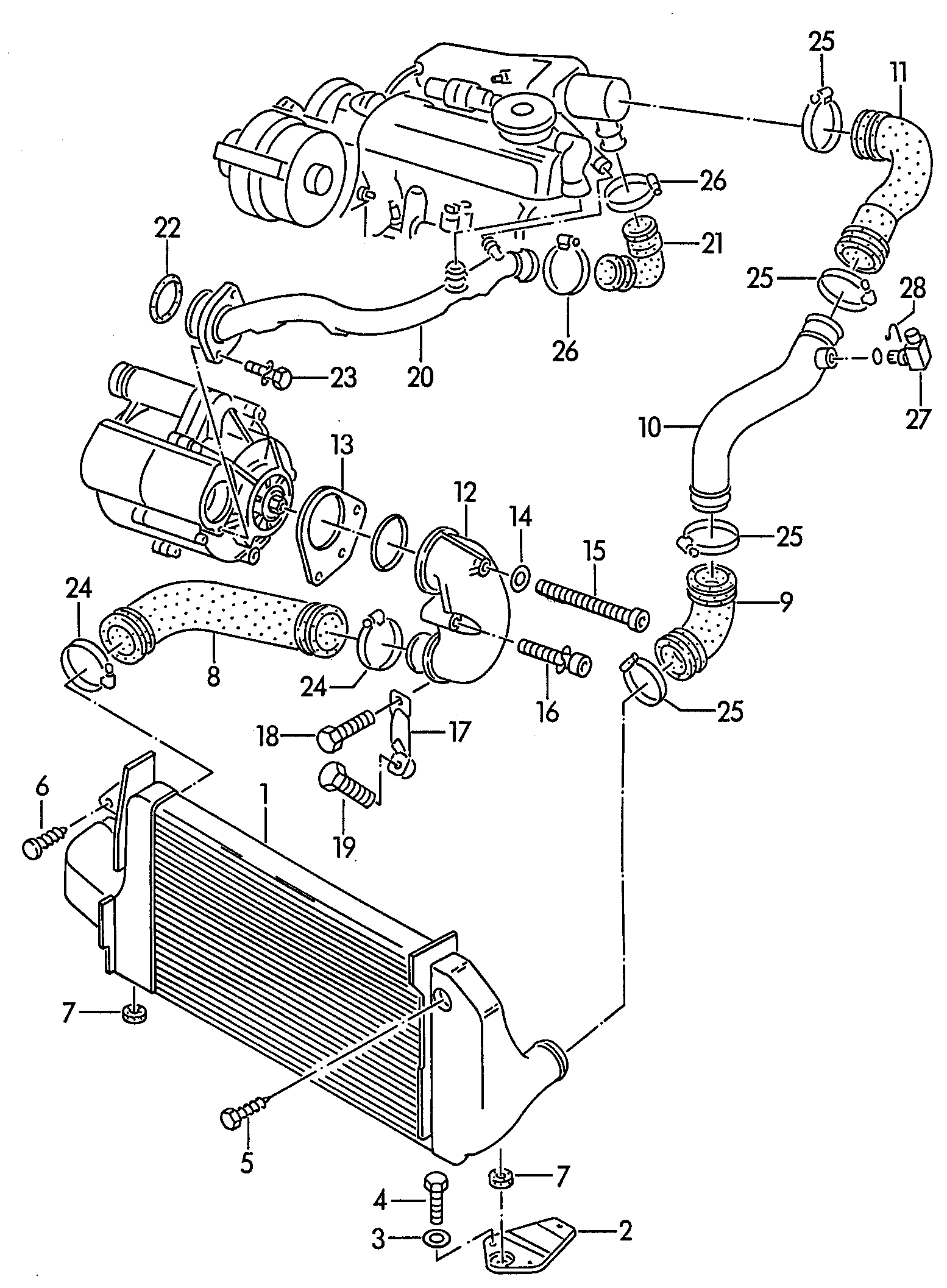

Charge air cooler for the Volkswagen Golf Mk2 (1986 - 1991): factory exploded diagram 63060 from the Volkswagen ETKA parts catalogue, group 41 Fresh air intake, listing 35 OEM part numbers across 38 catalogued positions including 071 906 313, N 903 168 01 and 191 145 805 H. Parts on this plate carry the engine codes 1H and PG. Published by Type 19 Specialists; the complete MK2 Golf catalogue is in print as the Mk2 Golf Master Parts Catalogue.
Parts on this diagram
This MK2 Golf plate lists 35 OEM part numbers across 38 numbered positions.
| № | Description | Part number |
|---|---|---|
| Charge air cooler 1.8 ltr. 1 H,PG 1.8 ltr. 1HPG | — | |
| - | plug withcirclip 12,4 MM 12,4 MM | 071 906 313 |
| - | O-ring 19,6 X 3,65 19,6 X 3,65 | N 903 168 01 |
| (1) | Charge air cooler PG PG | 191 145 805 H |
| (8) | Pressure hose PG PG | 191 145 832 D |
| 1 | Charge air cooler 1 H 1H | 191 145 805 G |
| 10 | Connecting pipe | 191 145 770 |
| 11 | Pressure hose | 357 145 838 A |
| 12 | connection piece | 191 145 755 B |
| 13 | No longer available | — |
| 13 | Seal | 037 145 539 A |
| 14 | Washer 8,2 X 18 X 3 8,2 X 18 X 3 | N 901 791 02 |
| 15 | Socket head bolt withhexagon socket head M 8 X 125 M 8 X 125 | N 044 721 1 |
| 16 | Socket head bolt with hexagonsocket head (combination) M 8 X 65 M 8 X 65 | N 901 442 01 |
| 17 | Support | 037 145 535 B |
| 18 | Hexagon bolt M 8 X 28 M 8 X 28 | N 010 233 6 |
| 19 | Hex collared bolt M 10 X 40 M 10 X 40 | N 102 342 04 |
| 19 | Hex collared bolt M 10 X 40 M 10 X 40 | N 100 596 04 |
| 2 | Bracket | 191 820 405 |
| 20 | Connecting pipe | 191 145 826 B |
| 21 | Connecting hose | 191 145 825 |
| 22 | O-ring 58 X 4 58 X 4 | 113 919 131 A |
| 23 | Socket head bolt with hexagonsocket head (combination) M 6 X 22 M 6 X 22 | N 101 725 01 |
| 24 | Clamp 70-90 X 9 X 0,5 70-90 X 9 X 0,5 | N 024 518 3 |
| 25 | Clamp 50-70 X 9 X 0,5 50-70 X 9 X 0,5 | N 024 505 4 |
| 26 | Hose clamp 40-60 X 9 X 0,5 40-60 X 9 X 0,5 | N 024 504 4 |
| 27 | Temperature sensor Potentiometer | 037 906 040 B |
| 28 | retaining spring | 025 121 142 |
| 28 | retaining spring | 032 121 142 |
| 3 | Washer 6 X 12 X 1,6 6 X 12 X 1,6 | N 015 276 1 |
| 4 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 14 |
| 4 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| 5 | hexagon head panel screw 6,3 X 38 6,3 X 38 | N 013 893 1 |
| 6 | hexagon head panel screw 6,8 X 12,5 6,8 X 12,5 | N 903 103 01 |
| 7 | Rubber washer | 171 121 276 D |
| 8 | Pressure hose 1 H 1H | 191 145 832 C |
| 9 | Pressure hose | 191 145 834 D |
| 9 | No longer available | — |
From the Type 19 workshop
Volkswagen Golf Mk2 work in the Type 19 workshop — the same cars these fresh air intake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk2
- Model years
- 1986 - 1991
- Generation region
- RDW
- Generation code
- 067
- Engine codes on this plate
- 1H, PG
- Variant tags
- petrol_8v_g60, petrol_8v_gti, petrol_8v_gti_or_gl
- Factory group
- 41 Fresh air intake
- Factory subgroup
- 63060
