Charge air cooler — MK2 Golf Fresh Air Intake (1986 - 1991)
Factory title: Volkswagen Golf/Var.-syn./Rall./Coun. (1986 - 1991) - Vane pump. for power steering

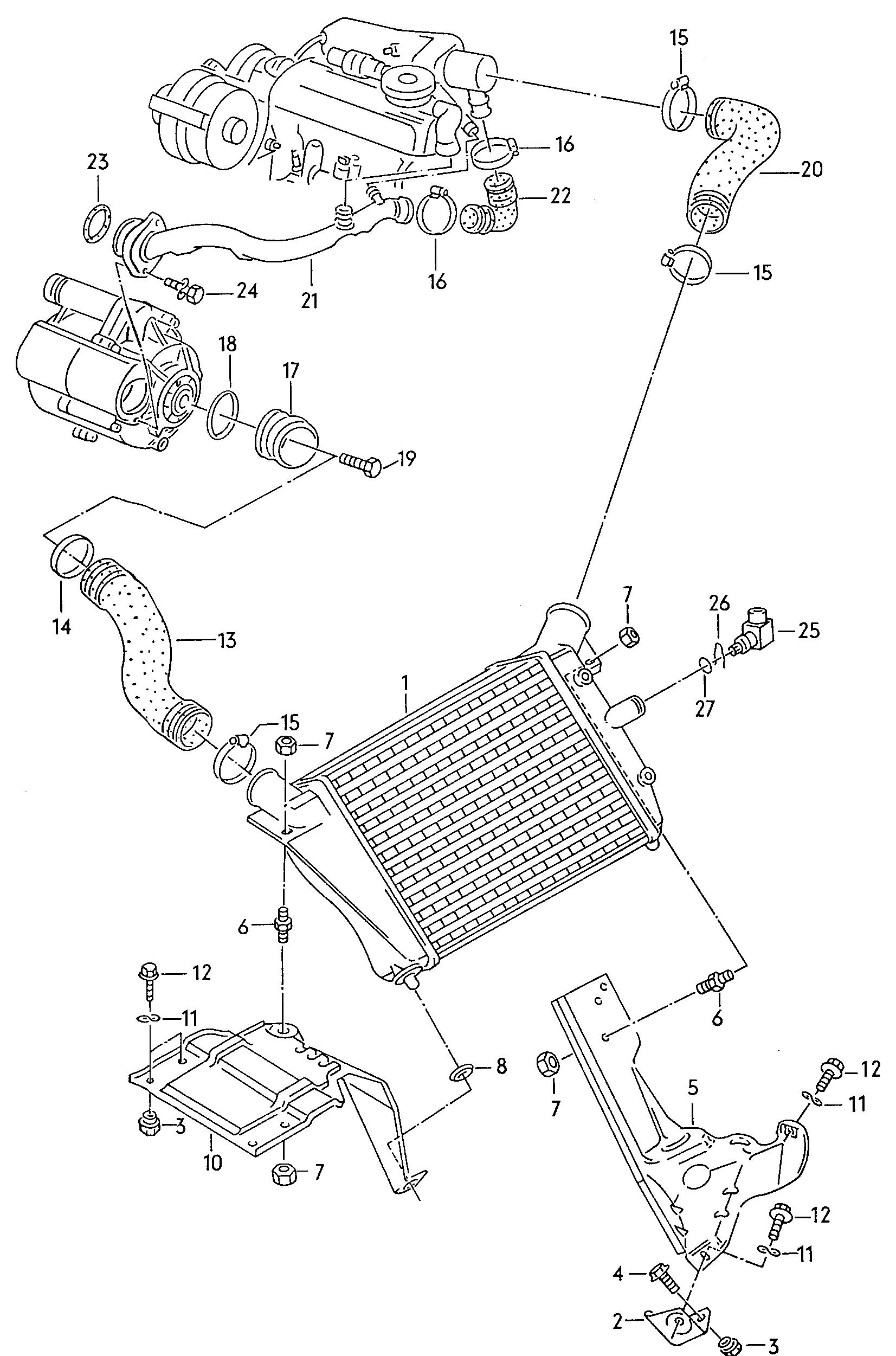

Charge air cooler for the Volkswagen Golf Mk2 (1986 - 1991): factory exploded diagram 63050 from the Volkswagen ETKA parts catalogue, group 41 Fresh air intake, listing 30 OEM part numbers across 32 catalogued positions including 071 906 313, 191 145 805 D and 191 145 810 A. Parts on this plate carry the engine code PG. Published by Type 19 Specialists; the complete MK2 Golf catalogue is in print as the Mk2 Golf Master Parts Catalogue.
Parts on this diagram
This MK2 Golf plate lists 30 OEM part numbers across 32 numbered positions.
| № | Description | Part number |
|---|---|---|
| Charge air cooler 1.8 ltr. air condit.PG 1.8 ltr. PG | — | |
| - | plug withcirclip 12,4 MM 12,4 MM | 071 906 313 |
| 1 | Charge air cooler | 191 145 805 D |
| 10 | No longer available | — |
| 10 | Bracket | 191 145 810 A |
| 11 | Spring washer 6 6 | N 012 226 5 |
| 11 | Spring washer A 6 A 6 | N 012 227 3 |
| 12 | Hexagon bolt M 6 X 16 M 6 X 16 | N 010 287 3 |
| 13 | Pressure hose | 191 145 832 B |
| 14 | Clamp 70-90 X 9 X 0,5 70-90 X 9 X 0,5 | N 024 518 3 |
| 15 | Clamp 50-70 X 9 X 0,5 50-70 X 9 X 0,5 | N 024 505 4 |
| 16 | Hose clamp 40-60 X 9 X 0,5 40-60 X 9 X 0,5 | N 024 504 4 |
| 17 | connection piece | 191 145 755 |
| 18 | Seal | 030 145 119 |
| 19 | Hexagon bolt M 8 X 28 X 21,5 M 8 X 28 X 21,5 | N 900 422 01 |
| 2 | Bracket | 191 145 823 C |
| 20 | Pressure hose | 191 145 834 B |
| 21 | Connecting pipe | 191 145 826 B |
| 22 | Connecting hose | 191 145 825 |
| 23 | O-ring 58 X 4 58 X 4 | 113 919 131 A |
| 24 | Socket head bolt with hexagonsocket head (combination) M 6 X 22 M 6 X 22 | N 101 725 01 |
| 25 | Temperature sensor Potentiometer | 037 906 040 B |
| 26 | retaining spring | 032 121 142 |
| 26 | retaining spring | 025 121 142 |
| 27 | O-ring 19,6 X 3,65 19,6 X 3,65 | N 903 168 01 |
| 3 | rivetted cap nut AM 6/0,5-3 AM 6/0,5-3 | N 902 521 01 |
| 3 | rivetted cap nut M 6 X 0,5-3 M 6 X 0,5-3 | N 902 521 04 |
| 4 | bolt, hex. hd. with shoulder,self-locking M 6 X 18 M 6 X 18 | N 014 344 1 |
| 5 | Bracket | 191 145 808 A |
| 6 | Bonded rubber bush | 443 133 741 A |
| 7 | Hexagon collar nut M 6 M 6 | N 901 752 03 |
| 8 | Grommet | 052 129 669 A |
From the Type 19 workshop
Volkswagen Golf Mk2 work in the Type 19 workshop — the same cars these fresh air intake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk2
- Model years
- 1986 - 1991
- Generation region
- RDW
- Generation code
- 067
- Engine codes on this plate
- PG
- Variant tags
- petrol_8v_g60, petrol_8v_gti_or_gl
- Factory group
- 41 Fresh air intake
- Factory subgroup
- 63050
