Vacuum system — MK2 Golf Fresh Air Intake (1990 - 1991)
Factory title: Volkswagen Golf (1990 - 1992) - Carburettor

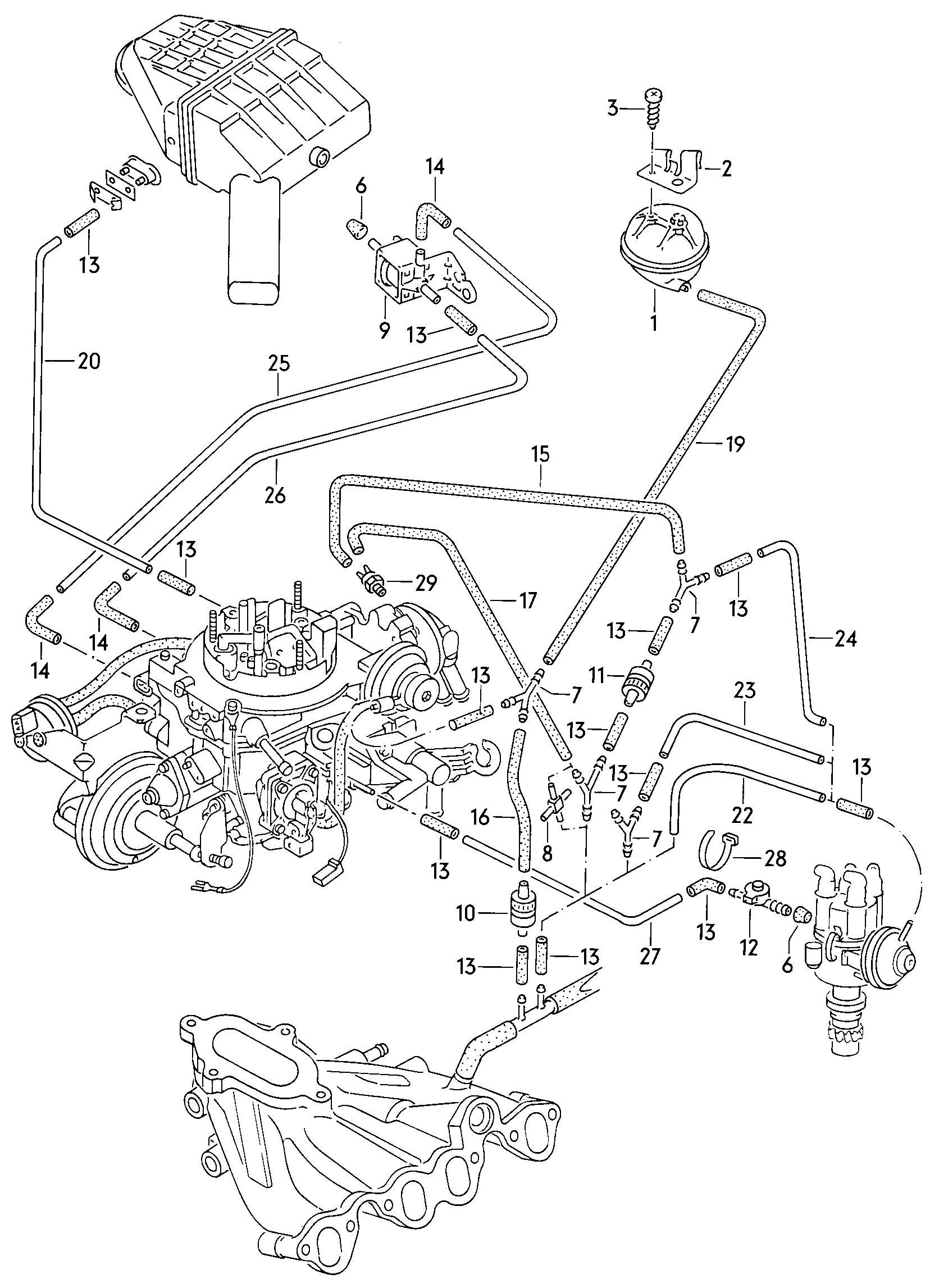

Vacuum system for the Volkswagen Golf Mk2 (1990 - 1991): factory exploded diagram 52000 from the Volkswagen ETKA parts catalogue, group 41 Fresh air intake, listing 17 OEM part numbers across 30 catalogued positions including N 020 353 5, 191 906 315 and N 020 139 1. Parts on this plate carry the engine codes EZ, GU, HZ, RF and RH. Published by Type 19 Specialists; the complete MK2 Golf catalogue is in print as the Mk2 Golf Master Parts Catalogue.
Parts on this diagram
This MK2 Golf plate lists 17 OEM part numbers across 30 numbered positions.
| № | Description | Part number |
|---|---|---|
| vacuum system 1.6/1.8 Ltr.1.05 ltr. EZ,RF,GU,RH,ABNHZ 1.6/1.8 Ltr.1.05 ltr. EZRFGURH | — | |
| - | Hose(Bulk stock) 3,5 X 2 3,5 X 2 | N 020 353 5 |
| - | Vent cap 3,6 MM HZ 3,6 MM HZ | 191 906 315 |
| - | tube in coils of 5 m'order unit 5' 4 X 1 4 X 1 | N 020 139 1 |
| - | hose in coils of 5 m'order unit 5' 3,5 X 2 3,5 X 2 | N 020 353 27 |
| (9) | Solenoid valve HZ HZ | 321 906 283 |
| 1 | vacuum reservoir EZ,RF,GU,HZ,ABN EZRFGUHZ | 049 129 808 C |
| 10 | Non-return valve | 046 905 291 A |
| 11 | Non-return valve automatic | 046 905 291 A |
| 13 | shorten to: 40 MM 40 MM | — |
| 14 | shorten to: 80 MM air condit. 80 MM | — |
| 15 | shorten to: 80 MM automatic 80 MM | — |
| 16 | shorten to: 150 MM 150 MM | — |
| 17 | shorten to: 200 MM automatic 200 MM | — |
| 19 | shorten to: 180 MM 180 MM | — |
| 2 | Retaining plate EZ,RF,GU,HZ,ABN EZRFGUHZ | 027 129 079 |
| 20 | shorten to: 320 MM 320 MM | — |
| 22 | shorten to: 350 MM manualgearbox 350 MM | — |
| 23 | shorten to: 350 MM air condit.,automatic 350 MM | — |
| 24 | shorten to: 430 MM automatic 430 MM | — |
| 25 | shorten to: 180 MM air condit. 180 MM | — |
| 26 | shorten to: 210 MM air condit. 210 MM | — |
| 28 | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| 29 | thermo-pneumatic valve automatic | 055 131 851 |
| 3 | oval head panel screw 4,8 X 16 4,8 X 16 | N 013 969 21 |
| 3 | oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0 | N 013 969 4 |
| 6 | Cap closure 4 MM 4 MM | 056 129 777 |
| 7 | Y-piece 4/4/4 4/4/4 | 056 129 971 |
| 8 | 4 way connector air condit. | 443 862 192 |
| 9 | Solenoid valve air condit.,automatic | 437 906 283 A |
From the Type 19 workshop
Volkswagen Golf Mk2 work in the Type 19 workshop — the same cars these fresh air intake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk2
- Model years
- 1990 - 1991
- Generation region
- RDW
- Generation code
- 110
- Engine codes on this plate
- EZ, GU, HZ, RF, RH
- Variant tags
- petrol_8v_base, petrol_8v_gti_or_gl
- Factory group
- 41 Fresh air intake
- Factory subgroup
- 52000
