G lader — MK2 Golf Fresh Air Intake (1986 - 1991)

Factory title: Volkswagen Golf/Var.-syn./Rall./Coun. (1986 - 1991) - Vane pump. for power steering

Generation: MK2 1986 - 1991 (RDW) Group: Fresh air intake Parts: 65 Primary OEM: 030 103 717, N 013 806 4, N 013 811 5

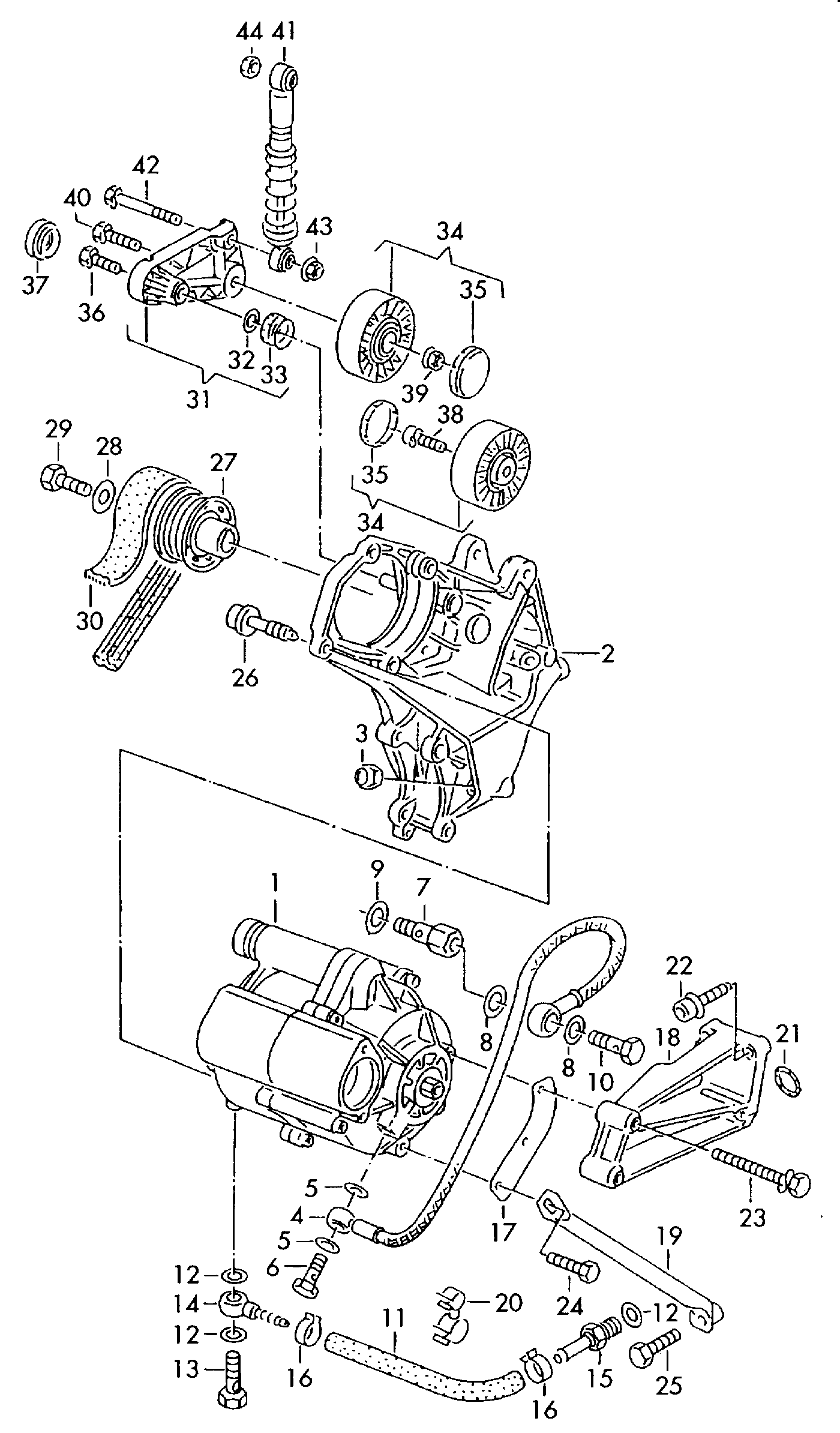

G lader for the Volkswagen Golf Mk2 (1986 - 1991): factory exploded diagram 63000 from the Volkswagen ETKA parts catalogue, group 41 Fresh air intake, listing 63 OEM part numbers across 65 catalogued positions including 030 103 717, N 013 806 4 and N 013 811 5. Parts on this plate carry the engine codes 1H and PG. Published by Type 19 Specialists; the complete MK2 Golf catalogue is in print as the Mk2 Golf Master Parts Catalogue.

Parts on this diagram

This MK2 Golf plate lists 63 OEM part numbers across 65 numbered positions.

53 hotspots (partial)
Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
G-Lader 1.8 ltr. 1 H,PG
1.8 ltr.
1HPG
—
-
Banjo fitting
 030 103 717
-
seal ring A 10 X 14
A 10 X 14
 N 013 806 4
-
seal ring 10 X 13,5
10 X 13,5
 N 013 811 5
(19)
Support 1 H
1H
037 145 535 B
(30)
Poly-V-belt 21,36 X 1658 MM
21,36 X 1658 MM
 037 145 933 B
(30)
Poly-V-belt 21,36 X 1660 MM
21,36 X 1660 MM
 038 903 137 J
(30)
Poly-V-belt 21,36 X 1760 MM air condit.
21,36 X 1760 MM
 037 145 933 C
(31)
arm
 037 145 277 A
1
G-Lader G 60
G 60
 037 145 401 C
10
Banjo bolt 6-3
6-3
 N 021 075 5
10
Banjo bolt 6
6
 N 021 075 6
11
oil return hose 5,5 X 3 X 180
5,5 X 3 X 180
 037 145 777
12
seal ring 10 X 13,5
10 X 13,5
 N 013 811 5
12
seal ring A 10 X 14
A 10 X 14
 N 013 806 4
13
Banjo bolt 6-3
6-3
 N 021 075 5
13
Banjo bolt 6
6
 N 021 075 6
14
Banjo fitting 6
6
 N 904 377 01
15
threaded union M 10
M 10
 037 145 786
16
Clamp 10-16 X 9 X 0,4
10-16 X 9 X 0,4
 N 101 393 01
17
Intermediate plate PG
PG
037 145 539 B
18
Bracket
 037 145 493
18
Bracket
 037 145 493 A
19
Support PG
PG
037 145 535
2
Bracket
 037 145 491 A
20
Bracket 18/11
18/11
 037 145 801 B
21
Seal 26,5 X 2,5
26,5 X 2,5
 049 127 311
22
Socket head bolt withhexagon socket head M 8 X 28
M 8 X 28
 N 904 019 01
23
Socket head bolt with hexagonsocket head (combination) M 8 X 65
M 8 X 65
 N 901 442 01
24
Hexagon bolt M 8 X 28
M 8 X 28
 N 010 233 6
25
Hex collared bolt M 10 X 40
M 10 X 40
 N 102 342 04
25
Hex collared bolt M 10 X 40
M 10 X 40
 N 100 596 04
26
Socket head bolt withhexagon socket head M 8 X 40 X 24
M 8 X 40 X 24
 N 904 020 01
27
Poly V-belt pulley
 037 145 929 B
28
Washer B 10,5 X 30 X 2,5
B 10,5 X 30 X 2,5
 N 011 672 3
28
Washer 10,5 X 30 X 3
10,5 X 30 X 3
 N 904 769 01
29
Hexagon bolt M 10 X 28
M 10 X 28
 N 010 258 4
3
Hexagon collar nutself-locking M 8
M 8
 N 901 838 02
32
Shim
 861 955 245
33
seal ring
 037 145 290 A
34
idler pulley
 037 145 276 A
34
idler pulley
 037 145 276
34
idler pulley 90 MM
90 MM
 074 145 278 E
35
Protective cap for freewheelpoly-V-belt pulley
 037 145 291
36
bolt, hexagon headself-locking M 8 X 20
M 8 X 20
 N 905 317 01
36
bolt, hexagon headself-locking M 8 X 18
M 8 X 18
 N 904 056 01
37
Protective cap 36
36
 037 145 292 B
38
Socket head bolt withhexagon socket head M 8 X 20
M 8 X 20
 N 014 710 7
39
Hexagon collar nutself-locking M 8
M 8
 N 901 838 02
4
Oil pressure line
 052 145 443
40
Hex collared bolt M 8 X 20
M 8 X 20
 N 019 533 4
40
Hex collared bolt M 8 X 22
M 8 X 22
 N 019 526 5
40
Hex collared bolt M 8 X 20
M 8 X 20
 N 019 533 10
41
Belt tensioner damper
 037 145 299
42
Hex collared bolt M 8 X 45
M 8 X 45
 N 019 504 2
43
hexagon nut, self-locking M 8
M 8
 N 902 920 01
43
Hexagon collar nutself-locking M 8
M 8
 N 909 083 01
44
Hexagon nut M 8
M 8
 N 011 008 8
45
No replacement part
 —
5
seal ring 8 X 12
8 X 12
 N 013 830 2
6
Banjo bolt 5
5
 N 901 836 03
7
Banjo bolt
 035 103 715
8
seal ring A 10 X 16
A 10 X 16
 N 013 808 3
8
seal ring 10 X 16
10 X 16
 N 013 808 5
9
seal ring 12 X 16
12 X 16
 N 013 818 2

From the Type 19 workshop

Volkswagen Golf Mk2 work in the Type 19 workshop — the same cars these fresh air intake diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk2
Model years
1986 - 1991
Generation region
RDW
Generation code
067
Engine codes on this plate
1H, PG
Variant tags
petrol_8v_g60, petrol_8v_gti, petrol_8v_gti_or_gl
Factory group
41 Fresh air intake
Factory subgroup
63000

Related factory diagrams

Other published fresh air intake plates for the MK2 Golf in this catalogue.

The complete MK2 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the g lader diagram for the MK2 Golf?
This diagram lists 63 OEM part numbers for the MK2 Golf. The first three are 030 103 717, N 013 806 4 and N 013 811 5.
Which MK2 Golf years and engines does this diagram cover?
This plate is from the MK2 Golf 1986 - 1991 generation (RDW). The parts on it carry the engine codes 1H and PG.
Where is the complete MK2 Golf factory parts catalogue?
The Mk2 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk2-full/. It carries every plate in this catalogue, not just this one.
