Intake system — MK2 Golf Fresh Air Intake (1990 - 1991)
Factory title: Volkswagen Golf (1990 - 1992) - Vacuum system. activated carbon filter system

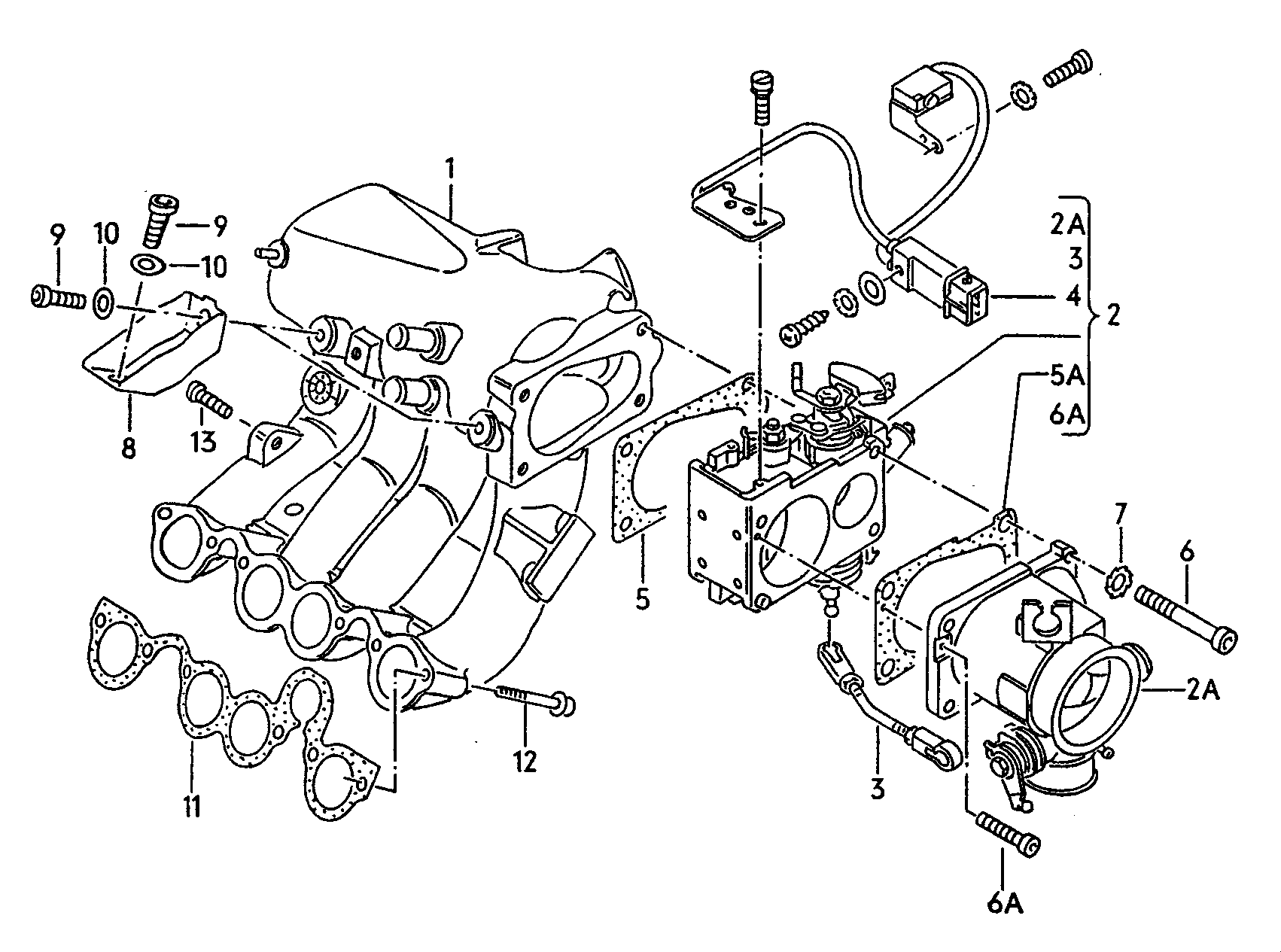

Intake system for the Volkswagen Golf Mk2 (1990 - 1991): factory exploded diagram 52050 from the Volkswagen ETKA parts catalogue, group 41 Fresh air intake, listing 30 OEM part numbers across 32 catalogued positions including 037 133 432, 030 133 335 A and N 102 582 01. Published by Type 19 Specialists; the complete MK2 Golf catalogue is in print as the Mk2 Golf Master Parts Catalogue.
Parts on this diagram
This MK2 Golf plate lists 30 OEM part numbers across 32 numbered positions.
| № | Description | Part number |
|---|---|---|
| intake system 1.8 ltr. PG 1.8 ltr. | — | |
| - | adjusting screw | 037 133 432 |
| - | Cap 12 MM 12 MM | 030 133 335 A |
| - | Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4 | N 102 582 01 |
| - | Securing bars 8 8 | N 904 314 01 |
| - | Cap 12 MM 12 MM | 049 133 335 A |
| - | Cap 11,8 MM 11,8 MM | 06D 133 335 A |
| (1) | Intake connection F >> 1 G-L-990 000* also use: 06 D 133 335 AN 102 582 01 06 D 133 335 AN 102 582 01 | 037 133 201 N |
| (1) | Intake connection F 1 G-M-000 001>> | 037 133 201 AD |
| (1) | No longer available | — |
| (11) | Seal F 1 G-M-000 001>> | 037 129 717 H |
| (12) | Socket head bolt withhexagon socket head also use: M 8 X 50 N 011 558 13 M 8 X 50 N 011 558 13 | N 014 751 3 |
| (2) | throttle valve adapter | 037 133 063 AJ |
| (4) | switch with loom | 037 133 093 F |
| 10 | Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6 | N 011 558 11 |
| 10 | Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6 | N 011 558 13 |
| 11 | Seal F >> 1 G-L-990 000* | 026 129 717 D |
| 12 | Socket head bolt withinner hex round head also use: M 8 X 80 N 011 558 13 M 8 X 80 N 011 558 13 | N 044 714 1 |
| 12 | Socket head bolt with hexagonsocket head (combination) M 8 X 80 Z 1 M 8 X 80 Z 1 | N 901 232 01 |
| 13 | Socket head bolt withhexagon socket head M 8 X 12 M 8 X 12 | N 014 706 2 |
| 13 | Socket head bolt withhexagon socket head M 8 X 12 M 8 X 12 | N 014 706 8 |
| 13 | Socket head bolt withhexagon socket head M 8 X 12 M 8 X 12 | N 014 706 7 |
| 3 | connecting rod | 037 133 096 |
| 5 | Seal | 037 133 073 A |
| 5A | Seal | 037 133 074 |
| 6 | Socket head bolt withhexagon socket head M 8 X 65 M 8 X 65 | N 014 711 2 |
| 6A | Socket head bolt M 4 X 15 M 4 X 15 | N 010 711 2 |
| 7 | Spring washer B 8 X 15 B 8 X 15 | N 012 241 10 |
| 7 | Spring washer 8 X 15 X 0,5 8 X 15 X 0,5 | N 012 229 3 |
| 8 | Support | 037 133 231 D |
| 9 | Socket head bolt withhex. socket head, self-locking M 8 X 20 M 8 X 20 | N 014 710 15 |
| 9 | Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20 | N 014 710 7 |
