Air conditioning system electronic regulation further — Mk3 Golf Air Cond System Heating (1997)

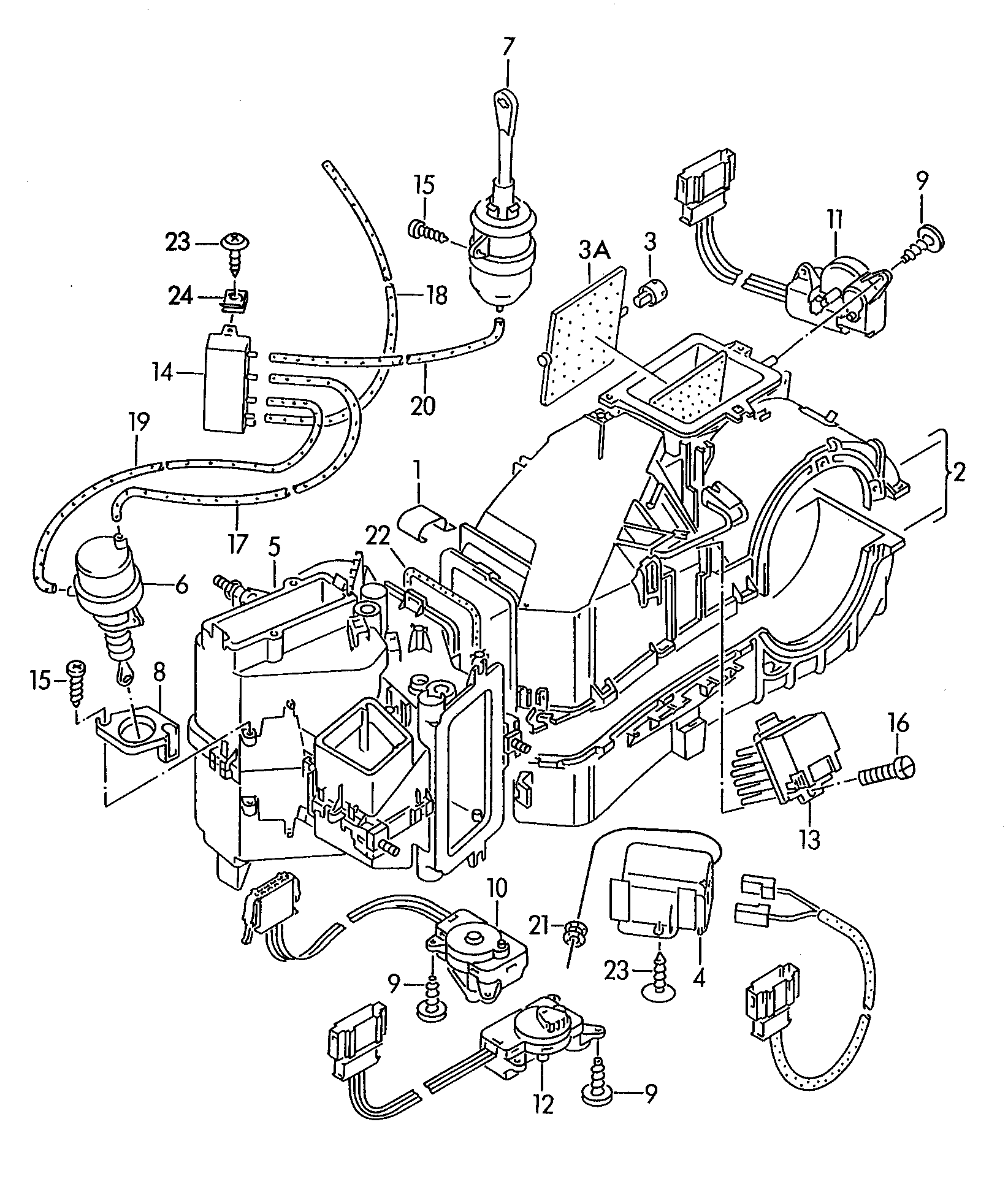

Factory title: Volkswagen Golf (1997 - 1998) - Evaporator. Footwell vent. Fan. Evaporator housing. Air distribution housing

Generation: Mk3 1997 (RDW) Group: Air cond. system / heating Parts: 40 Primary OEM: 1H0 907 543 A, N 020 139 1, 357 819 126

Air conditioning system electronic regulation further for the Volkswagen Golf Mk3 (1997): factory exploded diagram 820020 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 36 OEM part numbers across 40 catalogued positions including 1H0 907 543 A, N 020 139 1 and 357 819 126. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 36 OEM part numbers across 40 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Temperature sensor	1H0 907 543 A
-	tube in coils of 5 m'order unit 5' 4 X 1 4 X 1	N 020 139 1
-	intermediate leverfor vehicles with elec-tronically controlled heating 10 10	357 819 126
(10)	control motor fortemperature regulating flap	1H2 907 511 A
(11)	Servomotorventilation flap	358 907 511 B
(12)	Servomotor Control valve	358 907 511 C
(2)	housing	1H2 820 024 A
(4)	thermostat with protective cap	1H2 820 295
(4)	thermostat with protective cap	358 820 295 B
(4)	thermostat with protective cap	358 820 295
(5)	connection boxfor vehicles with electroni-cally regulated air condit.	1H1 820 351 B
(5)	connection boxfor vehicles with electroni-cally regulated air condit.	1H2 820 351 B
(7)	Vacuum unit	1H2 820 677
(8)	Vacuum unit Air distribution housing	358 820 678
1	Clip	321 819 059
10	control motor fortemperature regulating flap	3A1 907 511
11	Servomotorventilation flap	357 907 511 B
12	Servomotor Control valve	357 907 511 C
13	Fan control	1J0 907 521
13	Fan control	357 907 521
14	Valve unit	1H0 907 533
15	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
16	fillister hd. bolt M 4 X 18 M 4 X 18	N 014 125 1
17	shorten to: 515 MM 515 MM	—
18	shorten to: 550 MM 550 MM	—
19	shorten to: 600 MM 600 MM	—
2	housing	1H1 820 024 A
20	shorten to: 800 MM 800 MM	—
21	Grommet 15 X 7,2 X 1 15 X 7,2 X 1	357 820 299
22	Seal	191 819 370
23	oval hd. csk. self-tapp. screw 4,8 X 13 4,8 X 13	N 014 099 3
24	Speed nut 4,2 X 12,8 X 11,5 4,2 X 12,8 X 11,5	N 015 442 1
3	Mounting for flap	357 820 135
3A	ventilation flap	1H1 820 165
4	thermostat with protective cap	357 820 295 B
4	thermostat with protective cap	1H1 820 295
6	Vacuum unit Air distribution housing	357 820 676
7	Vacuum unit	1H1 820 677
8	Retainer for vacuumcontainer Air distribution housing	357 820 678
9	Plastic slotted screw 4,2 X 16 4,2 X 16	433 862 195

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 27 Air cond. system / heating
Factory subgroup: 820020
