C condenserfluid container connecting parts — Mk3 Golf Air Cond System Heating (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - A/C compressor. connecting and mounting parts for compressor

Generation: Mk3 1993 - 1996 (MEX) Group: Air cond. system / heating Parts: 52 Primary OEM: 1H1 820 769 B, 1H0 959 139 B, 1HM 820 769 A

C condenserfluid container connecting parts for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 260041 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 52 OEM part numbers including 1H1 820 769 B, 1H0 959 139 B and 1HM 820 769 A. Parts on this plate carry the engine codes AAA, AAZ, ABA, ACC, ADC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 52 OEM part numbers across 52 numbered positions.

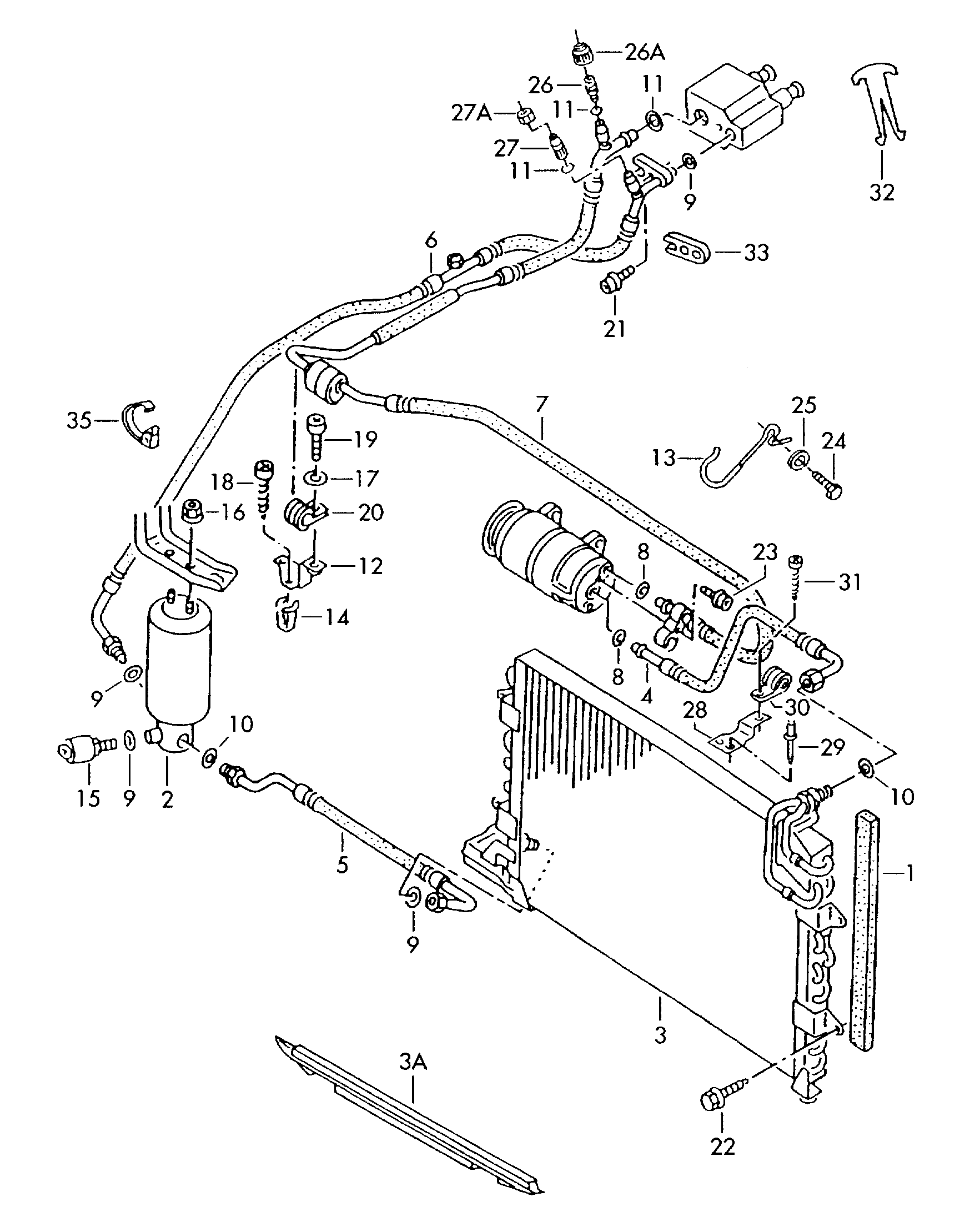

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(13)	bracket for refrigeranthose AAA AAA	1H1 820 769 B
(15)	High-pressure, low-pressureand blower switches	1H0 959 139 B
(28)	bracket for refrigeranthose	1HM 820 769 A
(3)	A/C condenser F 1 H-P-006 273>>*	1HM 820 413 B
(3)	A/C condenser F 1 H-P-014 215>>* "USA""CDN"	1HM 820 413 B
(35)	Cable ties 6 X 450 6 X 450	N 020 906 3
(35)	double cable tie F 1 H-S-017 314>> 7 X 213/140 MM AAZ 7 X 213/140 MM AAZ	4A0 820 199
(35)	double cable tie 7 X 213/140 MM ABA,ADC 7 X 213/140 MM ABAADC	4A0 820 199
(35)	Hose bracket 27/21 ABA,ADC 27/21 ABAADC	357 820 755
(35)	Cable ties F >> 1 H-S-060 341 F >> 1 H-S-038 125 3,6 X 246 "USA","CDN" 3,6 X 246	N 020 902 2
(4)	Refrigerant hose(A/C compressor > A/C condenser)F 1 H-T-106 201>>F 1 H-T-003 951>> "USA","CDN"	1HM 820 721
(6)	Refrigerant hose(Expansion valve > fluid tank)F 1 H-S-087 774>>F 1 H-S-033 995>> "USA","CDN"	1H1 820 741 B
(7)	Refrigerant hose(Expansion valve > A/C compressor) ACC,ABA,ADC,ADD ABAACCADCADD	1H1 820 743 P
(7)	Refrigerant hose(Expansion valve > A/C compressor) AAZ AAZ	1H1 820 743 R
(7)	Refrigerant hose(Expansion valve > A/C compressor) AAA AAA	1H1 820 743 N
10	O-ring 10,8 X 1,8 10,8 X 1,8	8A0 260 749 AJ
10	O-ring 10,8 X 1,82 10,8 X 1,82	8E0 260 749
11	seal ring 16,7 X 1,82 16,7 X 1,82	1H0 820 749 H
11	seal ring 16,7 X 1,82 16,7 X 1,82	8E0 260 749 A
12	bracket for refrigeranthose	1H1 820 769
13	bracket for refrigeranthose ACC,ABA,ADC,ADD ABAACCADCADD	1HM 820 769 B
14	expanding nut	111 867 199
16	Hexagon nut M 6 M 6	N 011 006 24
17	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
18	oval head panel screw 6,3 X 25 6,3 X 25	N 013 935 1
19	fillister hd. bolt M 6 X 12 M 6 X 12	N 014 139 5
2	Drier for refrigerant: R 12 / R 134 A R 12 / R 134 A	1H0 820 193 A
20	Clamp D 1-18 X 15 D 1-18 X 15	N 020 640 2
21	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 901 224 01
21	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 102 278 03
22	hexagon head panel screw 6,8 X 12,5 6,8 X 12,5	N 903 103 01
23	Socket head bolt with hexagonsocket head (combination)A/C compressor M 10 X 32 M 10 X 32	N 904 151 02
24	bolt, hex. hd. with shoulder,self-locking M 6 X 18 M 6 X 18	N 014 344 1
25	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
26	Valve	357 820 795 H
26A	Protective cap for refrigerant: R 134 A R 134 A	357 820 809 B
27	Valve	357 820 795 J
27A	Protective cap for refrigerant: R 134 A R 134 A	357 820 809 C
29	Pop rivet 4,8 X 7,6 4,8 X 7,6	N 016 194 3
3	A/C condenser F >> 1 H-P-014 214F >> 1 H-P-006 272 "CDN"	1HM 820 413 B
3	A/C condenser F >> 1 H-P-006 272*	1HM 820 413 A
30	Clamp D 1-24 X 15 D 1-24 X 15	N 020 647 1
31	fillister hd. bolt M 6 X 15 Z 1 M 6 X 15 Z 1	N 100 049 01
33	flange Refrigerant hose(Expansion valve > fluid tank)	1H0 820 698
35	Hose bracket	1H0 422 931
4	Refrigerant hose(A/C compressor > A/C condenser)F >> 1 H-T-106 200F >> 1 H-T-003 950 "USA","CDN"	1H0 820 721 C
5	Refrigerant hose(Fluid reservoir > A/C condenser)	1HM 820 739 A
6	Refrigerant hose(Expansion valve > fluid tank)F 1 H-P-026 197>> 1 H-S-087 773F 1 H-P-007 851>> 1 H-S-033 994 "USA","CDN"	1H1 820 741 B
6	Refrigerant hose(Expansion valve > fluid tank)F 1 H-P-007 851>> 1 H-S-033 994*	1H1 820 741 A
8	O-ring 20,35 X 1,78 20,35 X 1,78	1H0 820 749 G
9	O-ring 7,6 X 1,8 7,6 X 1,8	7H0 820 896
9	O-ring 7,6 X 11,16 7,6 X 11,16	8A0 260 749 AK

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAA, AAZ, ABA, ACC, ADC, ADD
Factory group: 27 Air cond. system / heating
Factory subgroup: 260041
