Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Air distribution housing evaporator housingevaporator fan — Mk3 Golf Air Cond System Heating (1997)

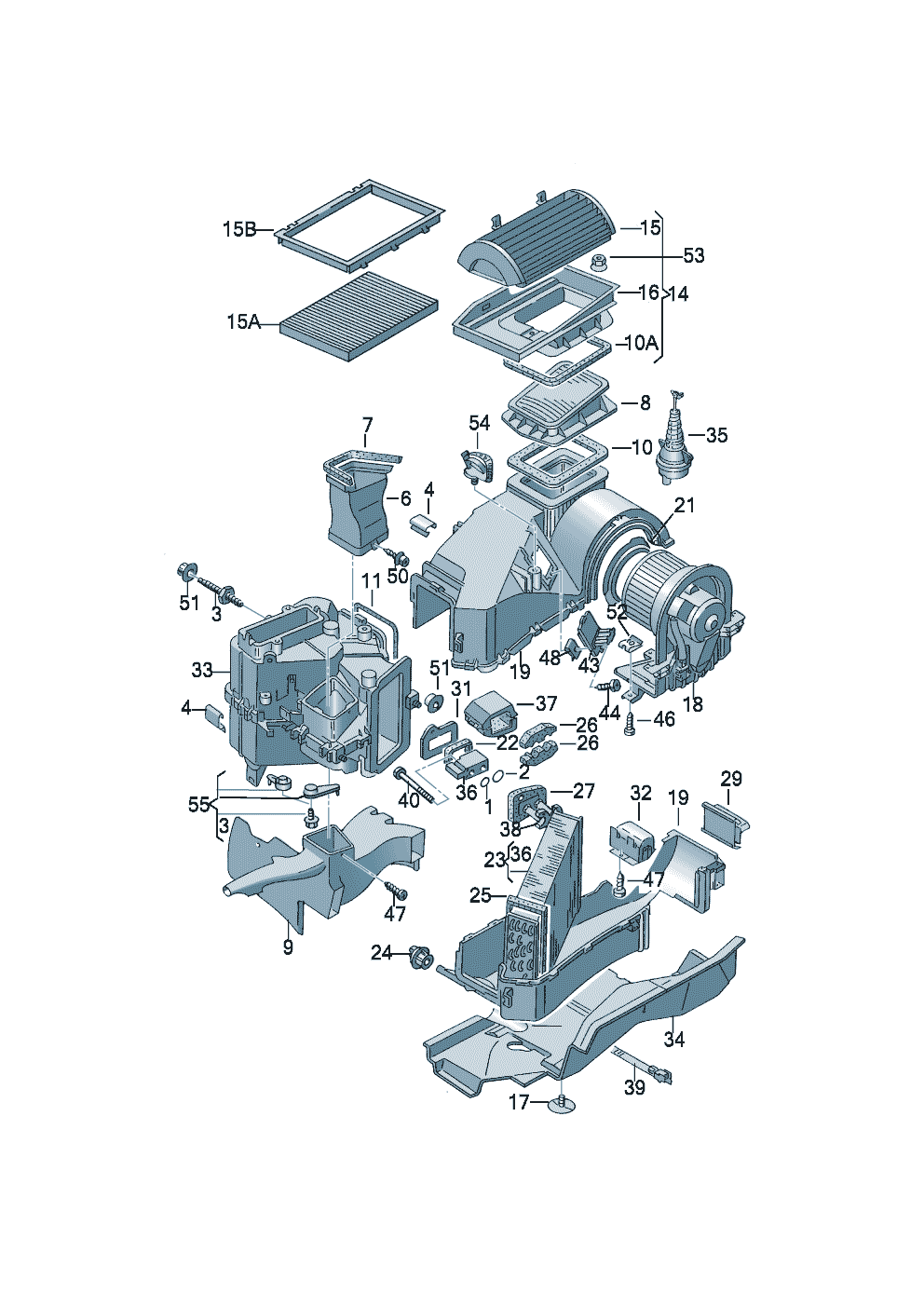

Factory title: Volkswagen Golf (1997 - 1998) - Evaporator. Footwell vent. Fan. Evaporator housing. Air distribution housing

Generation: Mk3 1997 (RDW) Group: Air cond. system / heating Parts: 78 Primary OEM: 1H0 820 692 0 1C, 1J1 819 640 B, 1H2 819 640 A

Air distribution housing evaporator housingevaporator fan for the Volkswagen Golf Mk3 (1997): factory exploded diagram 820010 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 77 OEM part numbers across 78 catalogued positions including 1H0 820 692 0 1C, 1J1 819 640 B and 1H2 819 640 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 77 OEM part numbers across 78 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 820 692 0 1C
	Air distribution housing Evaporator housingevaporator Fan Footwell vent air condit.	—
(16)	Filter housingfor vehicles with dust andpollen filter	1J1 819 640 B
(16)	Filter housingfor vehicles with dust andpollen filter	1H2 819 640 A
(16)	Filter housingfor vehicles with dust andpollen filter	1J2 819 640 A
(16)	Filter housingfor vehicles with dust andpollen filter	1H1 819 640 A
(18)	Fan	1H2 820 021
(19)	housing	1H2 820 024
(23)	evaporator with expansionvalve	1H2 820 103 C
(23)	evaporator with expansionvalve	1H2 820 103 B
(24)	Water drain valve	1H0 820 119 A
(27)	Seal	1H2 820 139
(29)	Rubber bush	1H2 820 149
(31)	Reinforcement plate	1H2 820 281
(32)	thermostat with protective cap	358 820 295 B
(32)	thermostat with protective cap	1H2 820 295
(32)	thermostat with protective cap	358 820 295
(33)	Air distribution housing	1H2 819 351
(34)	Cover	1H2 820 593
(35)	Vacuum unit	1H2 820 677
(36)	Expansion valve R 134 A R 134 A	6N0 820 679 A
(36)	Expansion valve R 134 A R 134 A	6N0 820 679 C
(55)	1 set: levers for airdistribution housing	1H2 898 001
(6)	Intermediate piece	1H2 819 081
(8)	intake manifold	1H2 819 098 A
(8)	intake manifold	1H1 819 098 A
(9)	Footwell vent	1H2 819 151
1	O-ring 10,8 X 1,82 10,8 X 1,82	8E0 260 749
1	O-ring 10,8 X 1,8 10,8 X 1,8	8A0 260 749 AJ
10	Seal	1H0 819 165
10A	Seal	1H0 819 166
11	Seal	191 819 370
15A	Filter insert with odour andharmful substance filter 'ECO'Economy	JZW 819 653
15A	Dust and pollen filter insert	1H0 819 644 B
15A	Dust and pollen filter insert	1H0 819 644
15B	Framefilter element	1H0 819 648
15B	Framefilter element	1H0 819 648 A
17	round hd. screw	1H0 819 943
18	Fan	1H1 820 021
19	housing	1H1 820 024
2	O-ring 14 X 17,65 14 X 17,65	8A0 260 749 AH
2	O-ring 14 X 1,8 14 X 1,8	8E0 260 749 D
21	ring	191 820 048
22	Seal shorten to: 1220 X 12 X 1095 MM 1220 X 12 X 1095 MM	321 820 061 D
23	evaporator with expansionvalve	1H1 820 103 B
23	evaporator with expansionvalve	1H1 820 103 C
24	Water drain valve	1H0 820 119
25	Seal	191 820 129
26	Seal	1H0 820 133
27	Seal	1H1 820 139
29	Rubber bush	1H1 820 149
3	double stud with hexagon drive	1H0 819 056
31	Reinforcement plate	1H1 820 281
32	thermostat with protective cap	357 820 295 B
32	thermostat with protective cap	1H1 820 295
33	connection box	1H1 820 351
34	Cover	1H1 820 593 A
35	Vacuum unit Air distribution housing Intake duct	1H1 820 677
36	Expansion valve	1H0 820 679 A
37	insulating piece	1H0 820 692
38	flange Expansion valve	1H0 816 831
39	tensioning strap	191 820 845
4	Clip	321 819 059
40	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 102 278 03
40	Socket head bolt M 5 X 55 M 5 X 55	N 010 655 1
43	series resistance for freshair and hot air blower 1,9/0,92/0,26 1,9/0,92/0,26	701 959 263 A
44	oval head panel screw 4,2 X 9,5 4,2 X 9,5	N 013 965 5
46	oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0	N 013 969 4
47	oval hd. csk. self-tapp. screw 4,8 X 13 4,8 X 13	N 014 099 3
48	Speed nut 4,2 X 12,8 X 11,5 4,2 X 12,8 X 11,5	N 015 442 1
50	oval head panel screw (combi) 4,8 X 16 4,8 X 16	N 103 091 01
51	hex. nut M 6 M 6	N 902 162 01
52	Speed nut 4,8 X 14,25 4,8 X 14,25	N 902 767 01
53	Locknut M 5 M 5	191 837 270
55	1 set: levers for airdistribution housing	1H1 898 001
6	Intermediate piece	1H1 819 081
7	Seal	1H0 819 090 B
9	Footwell vent	1H1 819 151

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 27 Air cond. system / heating
Factory subgroup: 820010

Related factory diagrams

Other published air cond system heating plates for the Mk3 Golf in this catalogue.

C compressorconnecting mounting parts compressor 1992 · subgroup 260025
C compressorconnecting mounting parts compressor 1992 · subgroup 260015
C condenserfluid container connecting parts refrigerant 1992 · subgroup 260040
C condenserfluid container connecting parts 1993 - 1996 · subgroup 260041
C compressorconnecting mounting parts compressor 4 cylinder 1997 · subgroup 260016
C compressorconnecting mounting parts compressor 6 cylinder 1997 · subgroup 260026
C condenserfluid container connecting parts 4 cylinder 1997 · subgroup 260041
Vacuum reservoirvacuum hoses air condit 1997 · subgroup 820040

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the air distribution housing evaporator housingevaporator fan diagram for the Mk3 Golf?: This diagram lists 77 OEM part numbers for the Mk3 Golf. The first three are 1H0 820 692 0 1C, 1J1 819 640 B and 1H2 819 640 A.
Which Mk3 Golf years and engines does this diagram cover?: This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?: The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
