Vacuum reservoirvacuum hoses air condit — Mk3 Golf Air Cond System Heating (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Evaporator. Footwell vent. Fan. Evaporator housing. Air distribution housing

Generation: Mk3 1997 (RDW) Group: Air cond. system / heating Parts: 32 Primary OEM: N 020 139 1, 1H0 820 755, 357 820 755 A

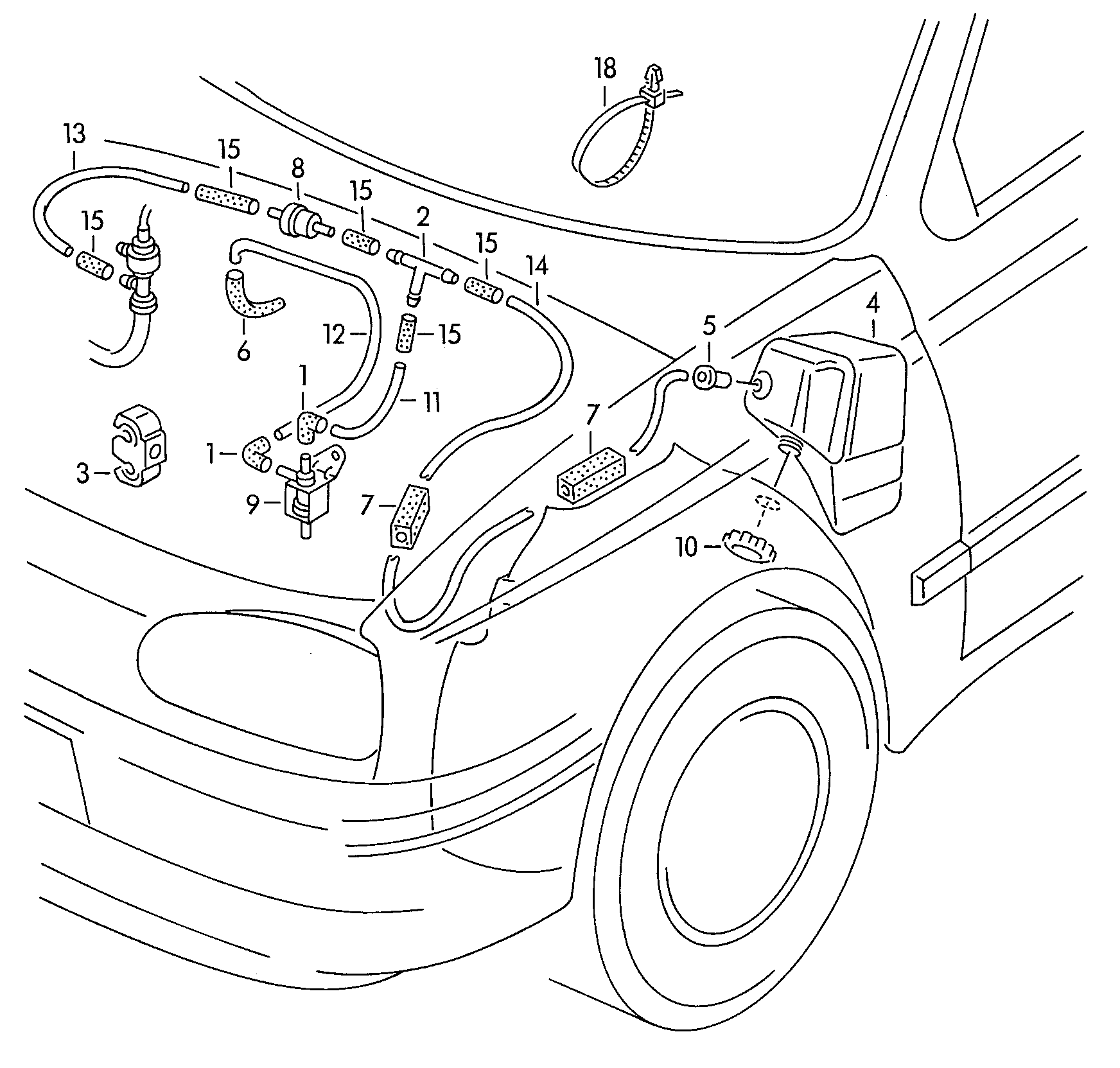

Vacuum reservoirvacuum hoses air condit for the Volkswagen Golf Mk3 (1997): factory exploded diagram 820040 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 26 OEM part numbers across 32 catalogued positions including N 020 139 1, 1H0 820 755 and 357 820 755 A. Parts on this plate carry the engine codes AAA, AAZ and AFN. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 26 OEM part numbers across 32 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	tube in coils of 5 m'order unit 5' 4 X 1 4 X 1	N 020 139 1
-	Hose bracket 32,5/39 MM Diesel eng.+1 Z,AAZ,AFN 32,5/39 MM AAZAFN	1H0 820 755
-	Hose bracket 10,5/39 MM AAA 10,5/39 MM AAA	357 820 755 A
-	Hose bracket 27/21 AAA 27/21 AAA	357 820 755
-	double cable tie 7 X 213/140 MM Diesel eng.+1 Z,AAZ,AFN 7 X 213/140 MM AAZAFN	4A0 820 199
-	Hose bracket 10,5/27 MM AAA 10,5/27 MM AAA	191 820 755
-	double cable tie 10,5/27 MM AAA 10,5/27 MM AAA	4A0 820 199
-	Hose(Bulk stock) 3,5 X 2 3,5 X 2	N 020 353 5
-	hose in coils of 5 m'order unit 5' 3,5 X 2 3,5 X 2	N 020 353 27
(9)	Solenoid valve 'EGR' AAZ 'EGR' AAZ	191 906 283 A
(9)	Solenoid valve 'EGR' AAZ 'EGR' AAZ	1H0 906 283
(9)	Solenoid valve 'EGR' Automatic+AAZ 'EGR'	191 906 283 A
(9)	Solenoid valve Automatic+AAZ	1H0 906 283 A
1	angled hose	048 133 784 H
10	Nut	311 955 461
11	shorten to: 125 MM 125 MM	—
12	shorten to: 490 MM 490 MM	—
13	shorten to: 540 MM 540 MM	—
14	shorten to: 1170 MM 1170 MM	—
15	shorten to: 40 MM 40 MM	—
18	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
18	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
2	t-piece 4-4-4 4-4-4	2D0 129 737 A
2	t-piece 4/4/4 4/4/4	113 201 943 B
3	Bracket	811 611 797
4	vacuum reservoir	1H0 820 601
5	Grommet	357 820 609
6	Reducing hose	6N0 820 641 A
6	Reducing hose	6N0 820 641
7	Foam tube(self-adhesive)	357 820 763
8	Non-return valve	433 862 117
9	Solenoid valve see illustration: 906-010 906-010	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA, AAZ, AFN
Factory group: 27 Air cond. system / heating
Factory subgroup: 820040
