C condenserfluid container connecting parts 4 cylinder — Mk3 Golf Air Cond System Heating (1997)
Factory title: Volkswagen Golf (1997 - 1998) - A/C compressor. connecting and mounting parts for compressor

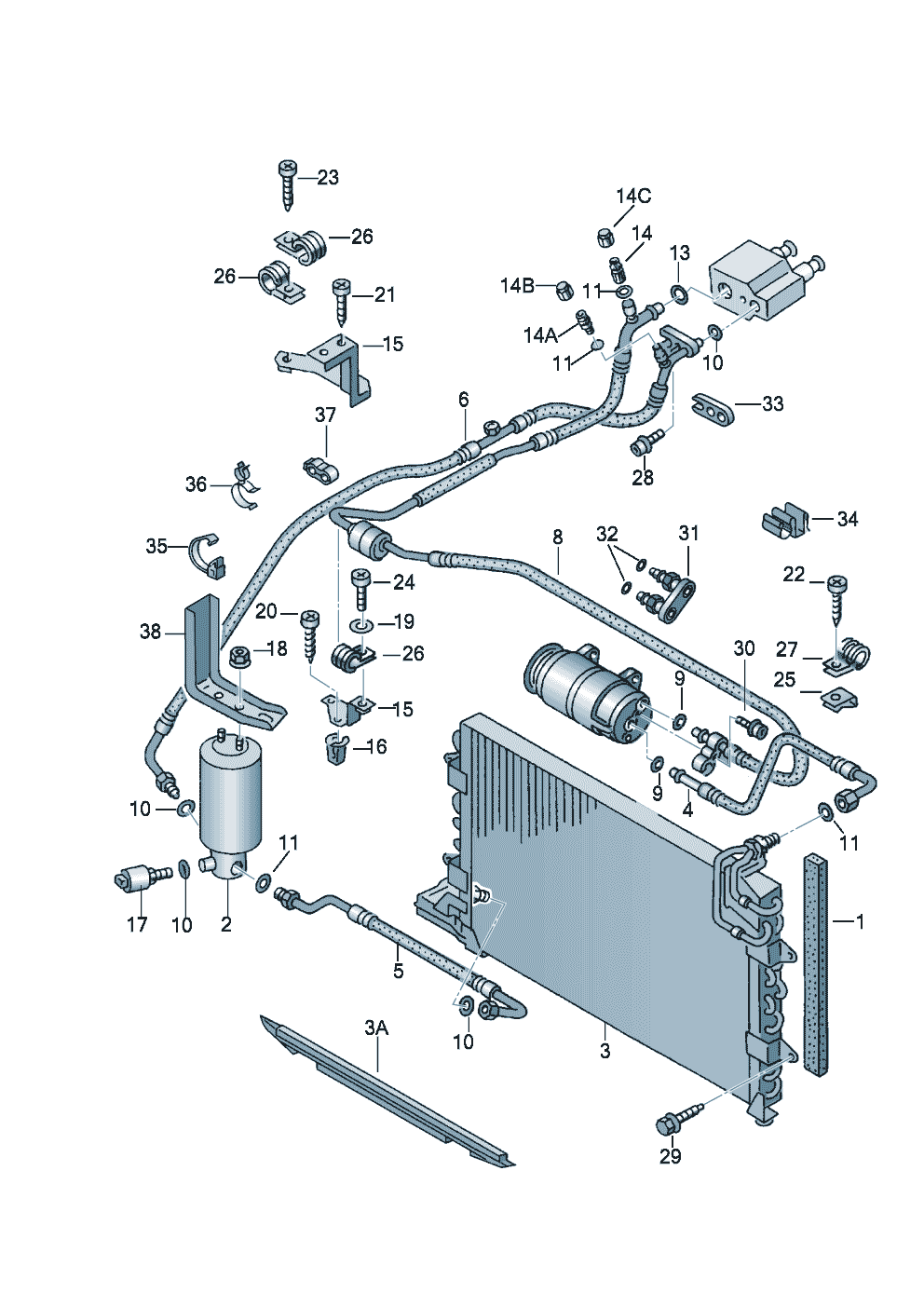

C condenserfluid container connecting parts 4 cylinder for the Volkswagen Golf Mk3 (1997): factory exploded diagram 260041 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 60 OEM part numbers across 62 catalogued positions including 7H0 820 749, 1J0 820 749 B and 1H2 820 769 B. Parts on this plate carry the engine codes 1Z, AAA, AAM, AAZ, ABF, ACC, ADZ and AEP. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 60 OEM part numbers across 62 numbered positions.
| № | Description | Part number |
|---|---|---|
| A/C condenserfluid container withconnecting parts 4-cylinder+AAM,ABF,ADZ,ADZ,AEP,AFT,AGG,AKR,AKS,ANPDiesel eng.+AAZ,1 Z,AFN,AHU,ALE 6-cylinder+AAA 1ZABFADZAEPAFNAFTAGGAHUAKRAKS | — | |
| - | O-ring 17,2 X 1,82 17,2 X 1,82 | 7H0 820 749 |
| - | O-ring 17 X 1,8 17 X 1,8 | 1J0 820 749 B |
| (15) | bracket for refrigeranthose | 1H2 820 769 B |
| (15) | bracket for refrigeranthose AAA,AAM,ADZ,AFN,1 Z,AAZ,AGG,AEP,AHU,AFT,AKR,AKS,ALE,ANP 1ZAAAAAMAAZADZAEPAFNAFTAGGAHUAKRAKSALEANP | 1H2 820 769 C |
| (2B) | Drier use if required: 8 A 0 260 749 AK 1 H 0 959 139 B 8 A 0 260 749 AK 1 H 0 959 139 B | 1H0 820 193 A |
| (2B) | Drier use if required: 7 H 0 820 8961 H 0 959 139 B 7 H 0 820 8961 H 0 959 139 B | 1H0 820 193 A |
| (3A) | protective grille Condenser | 1HM 853 671 |
| (3B) | Clip | 1HM 867 646 |
| (5) | Refrigerant hose(Fluid reservoir > A/C condenser) | 1H0 820 739 C |
| (6) | Refrigerant pipe(Fluid reservoir > A/C condenser) ABF ABF | 1H2 820 741 E |
| (6) | Refrigerant pipe(Expansion valve > fluid tank) AAA,AAM,ADZAGG,AKR,AKS,AEP,AFT,AAZ,AHU,ALE,1 Z,AFN,ANP 1ZAAAAAMAAZAEPAFNAFTAHUAKRAKSALEANP | 1H2 820 741 D |
| (8) | Refrigerant hose(Expansion valve > A/C compressor) AAA AAA | 1H2 820 744 L |
| (8) | Refrigerant hose(Expansion valve > A/C compressor) RLKG AAA,AAM,AGG,ABF,ADZ,AAZ,AFT,AEP,AKS,AKR,ANP RLKG AAAAAMAAZABFADZAEPAFTAGGAKRAKSANP | 1H2 820 743 E |
| (8) | Refrigerant hose(Expansion valve > A/C compressor) 1 Z,AFN,AHU,ALE 1ZAFNAHUALE | 1H2 820 743 G |
| (8) | Refrigerant hose(Expansion valve > A/C compressor) AAZ,1 Z,AFNAHU,ALE 1ZAAZALE | 1H1 820 743 R |
| (8) | Refrigerant hose(Expansion valve > A/C compressor) AAM,ABF,ADZ,AFT,AAZ,AGG,AEP,AKR,AKS,ANP AAMAAZABFADZAEPAFTAGGAKRAKSANP | 1H2 820 744 M |
| (8) | Refrigerant hose(Expansion valve > A/C compressor) AAA AAA | 1H1 820 743 Q |
| 1 | Seal 1220 X 12 X 10 1220 X 12 X 10 | 321 820 061 D |
| 10 | O-ring 7,6 X 11,16 7,6 X 11,16 | 8A0 260 749 AK |
| 10 | O-ring 7,6 X 1,8 7,6 X 1,8 | 7H0 820 896 |
| 11 | O-ring 10,8 X 1,82 10,8 X 1,82 | 8E0 260 749 |
| 11 | O-ring 10,8 X 1,8 10,8 X 1,8 | 8A0 260 749 AJ |
| 13 | O-ring 17 X 1,8 17 X 1,8 | 1J0 820 749 B |
| 13 | seal ring 16,7 X 1,82 16,7 X 1,82 | 1H0 820 749 H |
| 13 | O-ring 17,2 X 1,82 17,2 X 1,82 | 7H0 820 749 |
| 14 | Valve | 357 820 795 H |
| 14A | Valve | 357 820 795 J |
| 14B | Protective cap | 357 820 809 C |
| 14C | Protective cap | 357 820 809 B |
| 15 | bracket for refrigeranthose | 1H1 820 769 |
| 16 | expanding nut | 111 867 199 |
| 17 | High-pressure, low-pressureand blower switches | 1H0 959 139 B |
| 18 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 19 | Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6 | N 011 524 23 |
| 2 | Drier | 1H0 820 191 A |
| 2 | Drier for refrigerant: R 12 / R 134 A R 12 / R 134 A | 1H0 820 193 A |
| 20 | oval head panel screw 6,3 X 25 6,3 X 25 | N 013 935 1 |
| 21 | fillister hd. bolt M 6 X 10 M 6 X 10 | N 014 138 7 |
| 22 | oval head panel screw 5,5 X 16 5,5 X 16 | N 013 979 1 |
| 23 | fillister hd. bolt M 6 X 20 M 6 X 20 | N 014 142 3 |
| 24 | fillister hd. bolt M 6 X 12 M 6 X 12 | N 014 139 5 |
| 25 | Speed nut 5,5 X 26,6 X 20,4 5,5 X 26,6 X 20,4 | N 015 423 1 |
| 26 | Clamp D 1-18 X 15 D 1-18 X 15 | N 020 640 2 |
| 27 | Clamp D 1-24 X 15 D 1-24 X 15 | N 020 647 1 |
| 27 | Clamp 24 X 15 24 X 15 | N 020 647 4 |
| 28 | Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20 | N 901 224 01 |
| 28 | Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20 | N 102 278 03 |
| 29 | hexagon head panel screw 6,8 X 12,5 6,8 X 12,5 | N 903 103 01 |
| 3 | A/C condenser | 1H0 820 413 |
| 30 | Socket head bolt with hexagonsocket head (combination)A/C compressor M 10 X 32 M 10 X 32 | N 904 151 02 |
| 33 | flange Refrigerant hose(Expansion valve > fluid tank) | 1H0 820 698 |
| 34 | pipe holder Refrigerant hose only for: 1 H 2 820 741 D 1 H 2 820 741 E 1 H 2 820 741 D 1 H 2 820 741 E | 1H2 820 769 D |
| 35 | Hose bracket | 1H0 422 931 |
| 36 | Hose bracket 32,5/39 MM AAZ,1 Z,AFN,AHU,ALE 32,5/39 MM 1ZAAZAFNAHUALE | 1H0 820 755 |
| 36 | double cable tie 7 X 213/140 MM AAZ,1 Z,AFN,AHU,ALE 7 X 213/140 MM 1ZAAZAFNAHUALE | 4A0 820 199 |
| 37 | dual clip | 6N2 820 774 |
| 38 | see illustration: 809-030 809-030 | — |
| 4 | Refrigerant hose(A/C compressor > A/C condenser)A/C compressor SANDEN SANDEN | 1H0 820 721 C |
| 6 | Refrigerant hose(Expansion valve > fluid tank) | 1H1 820 741 B |
| 8 | Refrigerant hose(Expansion valve > A/C compressor) AAM,ABF,ADZ,ACC,AEP,AFT,AGG,AKR,AKS,ANP AAMABFACCADZAEPAFTAGGAKRAKSANP | 1H1 820 743 P |
| 9 | O-ring 20 20 | 1H0 820 749 G |
