C compressorconnecting mounting parts compressor — Mk3 Golf Air Cond System Heating (1992)

Factory title: Volkswagen Golf (1992 - 1994) - A/C compressor. connecting and mounting parts for compressor. for refrigerant:

Generation: Mk3 1992 (RDW) Group: Air cond. system / heating Parts: 15 Primary OEM: 028 260 849 L, 028 260 849 D, 1H0 820 803 E

C compressorconnecting mounting parts compressor for the Volkswagen Golf Mk3 (1992): factory exploded diagram 260015 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 14 OEM part numbers across 15 catalogued positions including 028 260 849 L, 028 260 849 D and 1H0 820 803 E. Parts on this plate carry the engine codes AAM, AAZ and ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 14 OEM part numbers across 15 numbered positions.

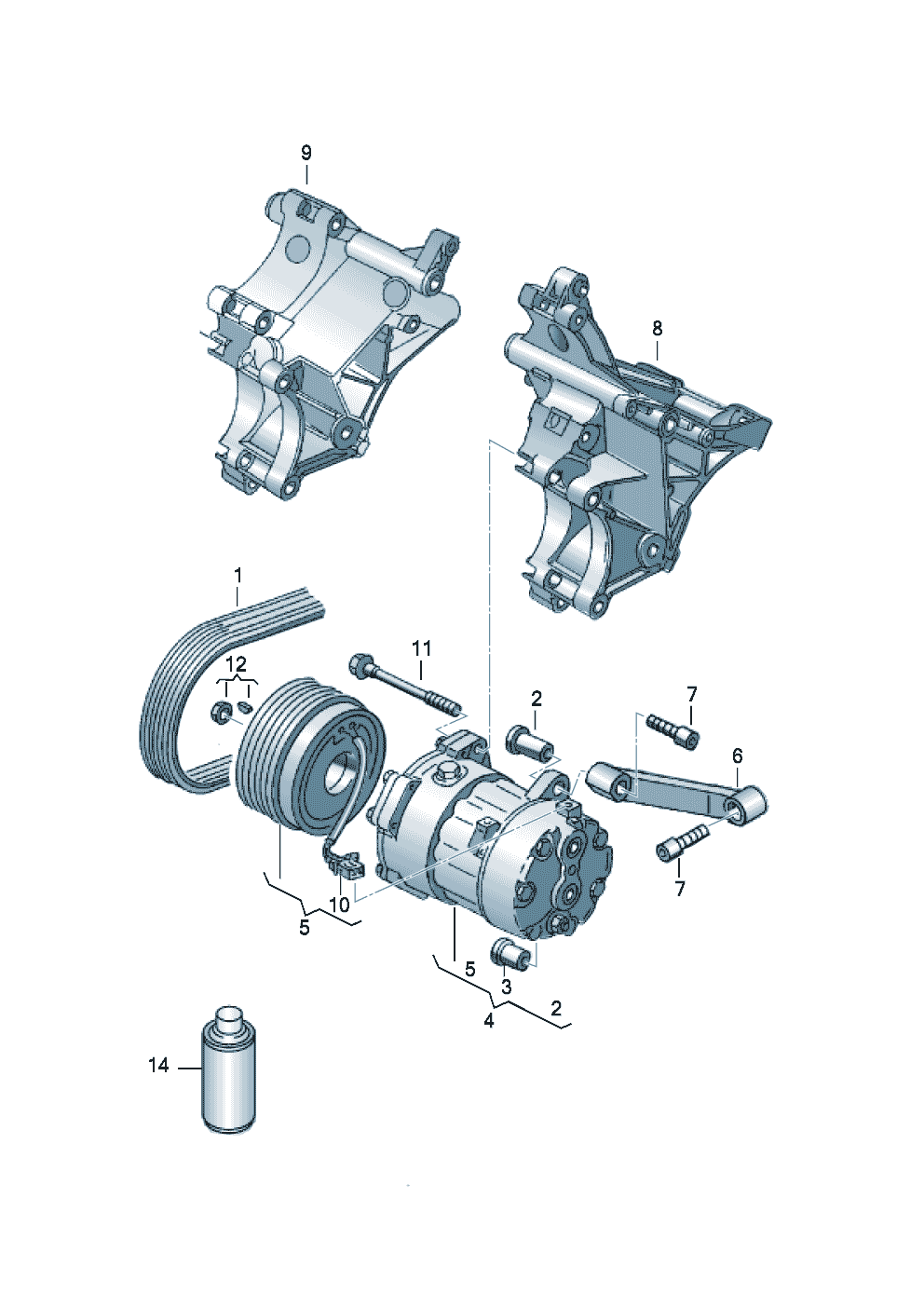

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
A/C compressorconnecting and mounting partsfor compressor for refrigerant:F >> 1 H-NW 990 000 4-cylinder+2 E,AAM,ABF,ABSDiesel eng.+1 Y,AAZ
AAMAAZABF
—
(1)
Poly-V-belt 21,18 X 1145 MM diesel eng.
21,18 X 1145 MM
 028 260 849 L
(1)
Poly-V-belt 21,36 X 1145 MM diesel eng.
21,36 X 1145 MM
 028 260 849 D
(4)
A/C compressor withelectro-magnetic coupling
 1H0 820 803 E
1
Poly-V-belt 21,18 X 1153 MM Petr. engine
21,18 X 1153 MM
 037 260 849 C
10
Flat contact housing
 171 971 934
11
Hex collared bolt BM 10 X 112
BM 10 X 112
 N 102 098 01
12
attachment parts for electro-magnetic coupling 1/2=20 UNF
1/2=20 UNF
 357 298 012
2
Threaded bush
 037 260 921
5
Electromagnetic coupling
 357 820 811 C
6
Support for compressor
 028 260 679 B
7
Socket head bolt with hexagonsocket head (combination) M 10 X 35
M 10 X 35
 N 903 202 02
8
bracket for alternatorfor vehicles with air condit. 120 A diesel eng.
120 A
 028 903 139 T
9
bracket for alternator A/C compressor Petr. engine
 037 903 139 M
9
bracket for alternator A/C compressor Petr. engine
 037 903 139 F
