C compressorconnecting mounting parts compressor — Mk3 Golf Air Cond System Heating (1992)

Factory title: Volkswagen Golf (1992 - 1994) - A/C compressor. connecting and mounting parts for compressor. for refrigerant:

Generation: Mk3 1992 (RDW) Group: Air cond. system / heating Parts: 16 Primary OEM: 021 145 933 H, N 904 263 02, N 904 263 01

C compressorconnecting mounting parts compressor for the Volkswagen Golf Mk3 (1992): factory exploded diagram 260025 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 15 OEM part numbers across 16 catalogued positions including 021 145 933 H, N 904 263 02 and N 904 263 01. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 15 OEM part numbers across 16 numbered positions.

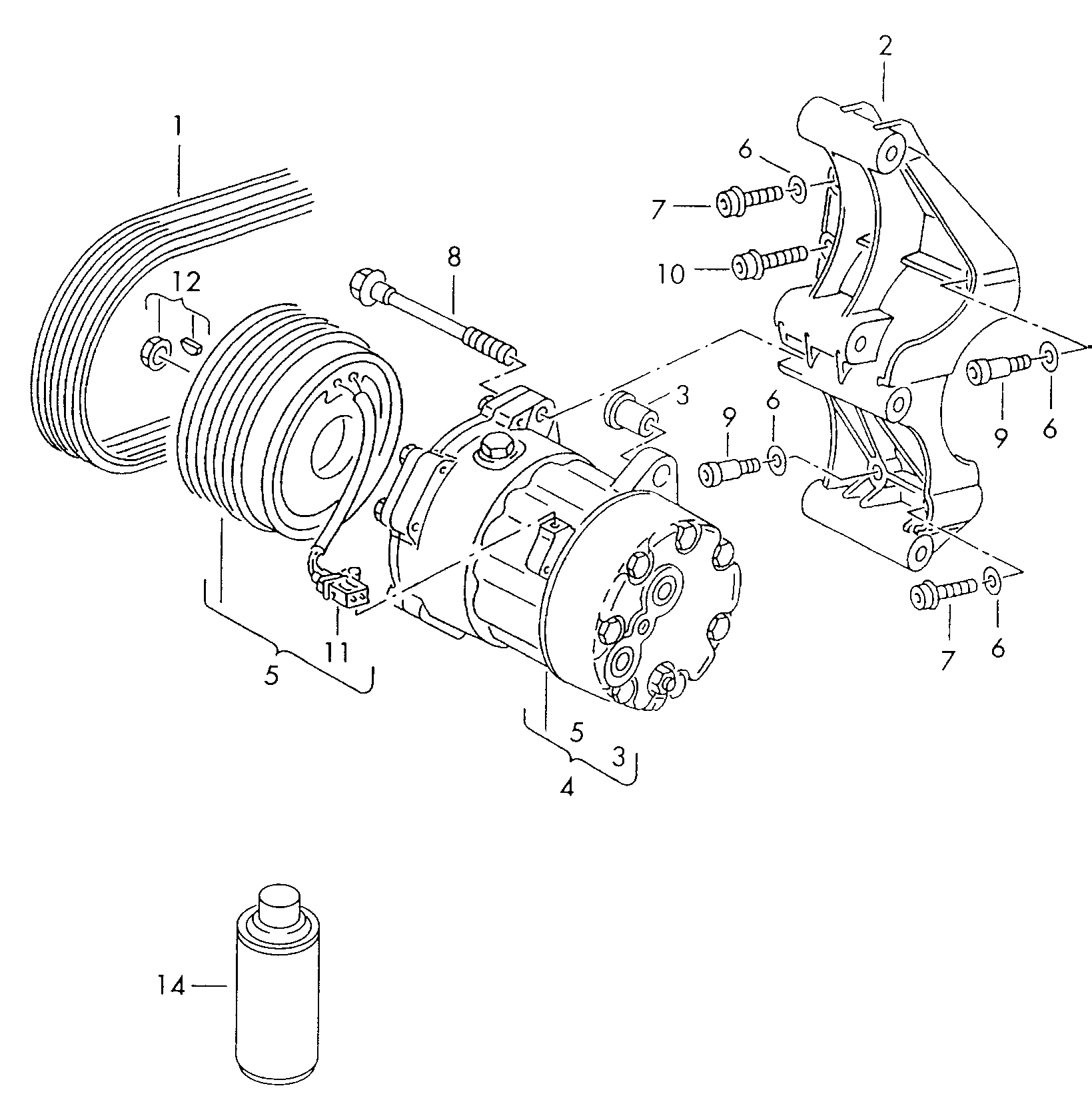

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
A/C compressorconnecting and mounting partsfor compressor for refrigerant:F >> 1 H-NW 990 000 6-cylinder+AAA
 —
1
Double poly V-belt 24,92 X 1360 MM
24,92 X 1360 MM
 021 145 933 H
10
Locating bolt M 8 X 8,992 X 28
M 8 X 8,992 X 28
 N 904 263 02
10
Locating bolt M 8 X 8.992 X 28
M 8 X 8.992 X 28
 N 904 263 01
11
Flat contact housing
 171 971 934
12
attachment parts for electro-magnetic coupling 1/2=20 UNF
1/2=20 UNF
 357 298 012
2
bracket for alternator andrefrigerant compressor
 021 260 087
3
Threaded bush
 037 260 921
4
A/C compressor
 1H0 820 805 F
4
A/C compressor withelectro-magnetic coupling
 1H0 820 803 F
5
Electromagnetic coupling
 357 820 811 D
6
Washer A 8,4
A 8,4
 N 011 525 13
6
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
7
Socket head bolt withhexagon socket head M 8 X 30
M 8 X 30
 N 014 726 3
8
Hex collared bolt BM 10 X 112
BM 10 X 112
 N 102 098 01
9
Socket head bolt with hexagonsocket head (combination) M 8 X 38
M 8 X 38
 N 904 050 02

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1992
Generation region
RDW
Generation code
121
Factory group
27 Air cond. system / heating
Factory subgroup
260025

Related factory diagrams

Other published air cond system heating plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the c compressorconnecting mounting parts compressor diagram for the Mk3 Golf?
This diagram lists 15 OEM part numbers for the Mk3 Golf. The first three are 021 145 933 H, N 904 263 02 and N 904 263 01.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1992 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
