Air footwell heater ducts air hoses vents water deflector — Mk3 Golf Air Cond System Heating (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Fan

Generation: Mk3 1997 (RDW) Group: Air cond. system / heating Parts: 128 Primary OEM: 1H1 819 706 A S 11, 1H0 819 055 C 0 1C, 1H1 819 705 H 21

Air footwell heater ducts air hoses vents water deflector for the Volkswagen Golf Mk3 (1997): factory exploded diagram 819030 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 128 OEM part numbers including 1H1 819 706 A S 11, 1H0 819 055 C 0 1C and 1H1 819 705 H 21. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 128 OEM part numbers across 128 numbered positions.

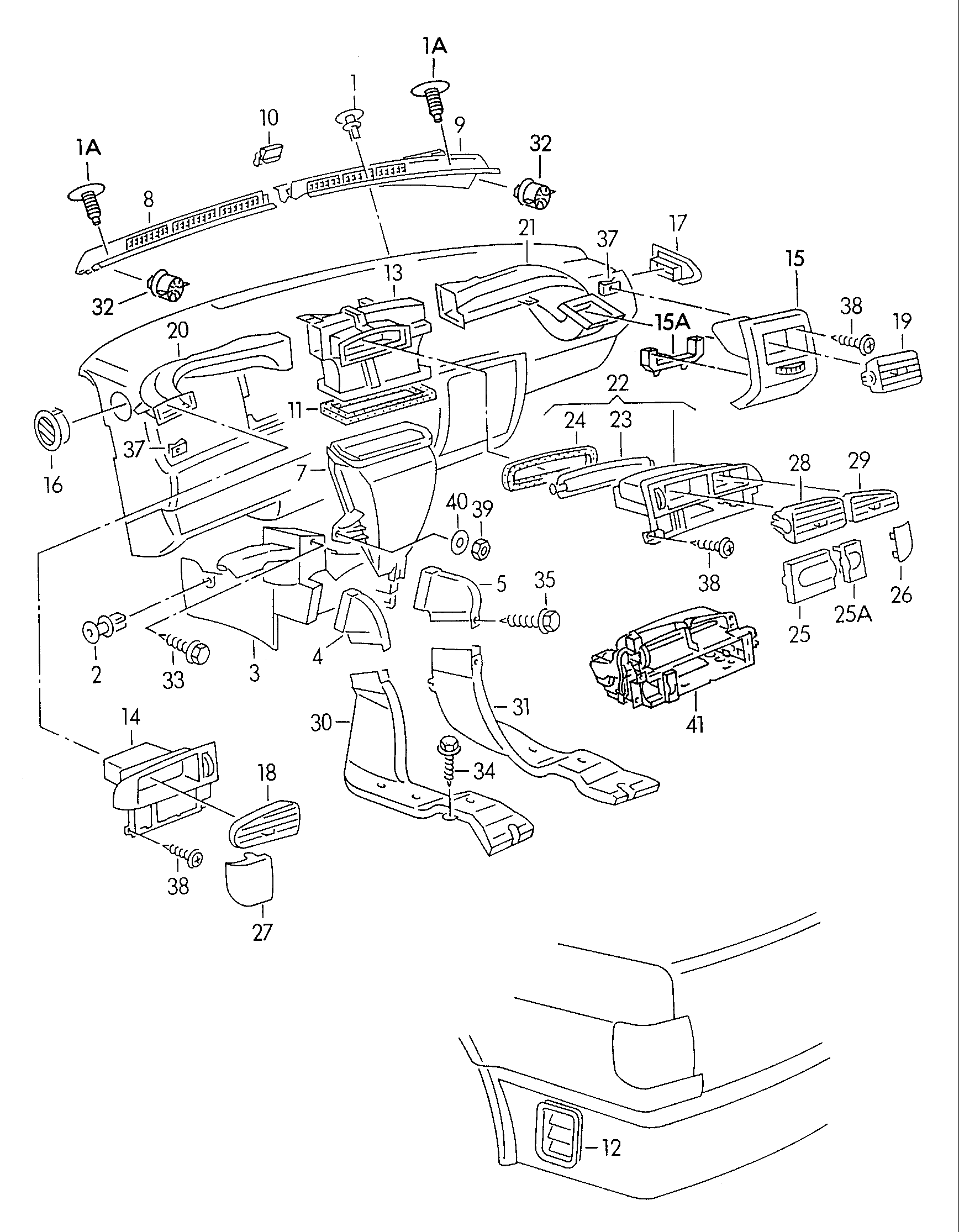

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	beaver	1H1 819 706 A S 11
	Satin black	1H0 819 055 C 0 1C
	mauritius blue	1H1 819 705 H 21
	beaver	1H1 819 705 S 11
	Black	1H1 819 705 0 1C
	mauritius blue	1H2 819 706 H 21
	beaver	1H2 819 706 S 11
	Satin black	1H2 819 706 0 1C
	Satin black	1H6 819 741 0 1C
	mauritius blue	1H1 819 706 A H 21
	Satin black	1H1 819 706 A 0 1C
	Satin black	1H0 819 055 B 0 1C
	Satin black	1H6 819 728 B 0 1C
	Satin black	1H0 819 145 B 41
	Satin black	1E2 819 728 0 1C
	Satin black	1E1 819 728 0 1C
	Satin black	1H6 819 728 E 0 1C
	Satin black	1H1 819 734 0 1C
	Satin black	1H6 819 756 0 1C
	Satin black	1H2 819 707 0 1C
	Satin black	1H6 819 756 A 0 1C
	Satin black	1H1 819 708 0 1C
	Satin black	1H0 819 740 B 0 1C
	Satin black	1H1 819 415 B B 41
	Satin black	1H6 819 756 0 1C
	Satin black	1H2 819 415 B B 41
	Satin black	1H6 819 755 0 1C
	Satin black	1H1 819 416 B B 41
	Satin black	1H6 819 707 0 1C
	Satin black	1H2 819 416 B B 41
	Satin black	1H0 819 740 A 0 1C
	Satin black	1H2 819 416 C B 41
	Satin black	1H2 819 743 0 1C
	Satin black	1H2 819 705 A 0 1C
	Satin black	1H1 819 743 0 1C
	Satin black	1H2 819 742 0 1C
	beaver	1H2 819 705 A S 11
	Satin black	1H1 819 742 0 1C
	Satin black	1H6 907 529 0 1C
	mauritius blue	1H2 819 705 A H 21
	Satin black	1H6 819 703 E 0 1C
	mauritius blue	1H6 819 703 C H 21
	beaver	1H6 819 703 C S 11
	Satin black	1H6 819 703 C 0 1C
	mauritius blue	1H6 819 703 D H 21
	beaver	1H6 819 703 D S 11
	Satin black	1H6 819 703 D 0 1C
	mauritius blue	1H6 819 704 D F 31
	beaver	1H6 819 704 D S 11
	Satin black	1H6 819 704 D 0 1C
	Satin black	1H6 819 704 E 0 1C
	Satin black	1H6 819 741 A 0 1C
-	Clip Housing for air vent	1H0 035 321
(10)	Connecting piece	1H2 819 423
(11)	Seal	1H2 819 427 A
(13)	Air guide	1H2 819 693 B
(14)	Housing for air vent Dash panel, padded	1H6 819 703 C
(14)	Housing for air vent Dash panel, padded	1H6 819 703 D
(15)	Housing for air vent	1H6 819 704 D
(15)	Housing for air vent	1H6 819 704 E
(16)	Air vent	1H2 819 706
(17)	Air vent	1H2 819 705 A
(18)	rotary insert	1H6 819 756
(19)	rotary insert	1H2 819 707
(20)	Air guide	1H2 819 723 A
(21)	Air guide	1H2 819 724 A
(22)	Housing for air vent Dash panel, padded also use: 1 H 0 035 321 1 H 0 035 321	1E2 819 728
(22)	Housing for air vent also use: 1 H 0 035 321 1 H 0 035 321	1H6 819 728 E
(25A)	Trim Temperature sensorfor vehicles with electroni-cally regulated air condit.	1H6 907 529
(26)	Trim	1H2 819 742
(27)	Trim	1H2 819 743
(28)	rotary insert Dash panel, padded	1H6 819 756 A
(3)	Footwell vent	1H2 819 151
(30)	Air channel for pass. cabinheater	1H2 819 803 A
(31)	Air channel for pass. cabinheater	1H2 819 804 A
(32)	Adapter	1H0 819 946 A
(4)	Air channel for pass. cabinheater	1H2 819 159 A
(41)	Housing for air ventfor vehicles with electroni-cally regulated air condit.	1H6 907 481 C
(5)	Air channel for pass. cabinheater	1H2 819 160 A
(7)	Air guide Intermediate piece	1H2 819 363 A
(8)	Water deflector	1H2 819 415 B
(9)	Water deflector	1H2 819 416 B
(9)	Water deflector	1H2 819 416 C
1	Clip	1H0 819 055 C
10	Connecting piece	1H1 819 423
11	Seal	1H1 819 427 A
12	Vent trim	1H0 819 465 D
12	Vent trim	1H0 819 465 E
12	Vent trim	1H0 819 465 A
12	Vent trim	1H0 819 465
13	Air guide	1H1 819 693 B
14	Housing for air vent	1H6 819 703 E
16	Air vent	1H1 819 705
17	Air vent	1H1 819 706 A
18	rotary insert	1H6 819 707
19	rotary insert	1H1 819 708
1A	Clip	1H0 819 055 B
2	Clip 16 16	1H0 819 145
20	Air guide	1H1 819 723 A
21	Air guide	1H1 819 724 A
22	Housing for air vent also use: 1 HO 035 321 1 HO 035 321	1H6 819 728 B
22	Housing for air vent also use: 1 H 0 035 321 1 H 0 035 321	1E1 819 728
23	fresh air flap	1H1 819 734
24	Seal	1H0 819 740 B
24	Seal	1H0 819 740 A
25	Trim	1H6 819 741
25A	Trim	1H6 819 741 A
26	Trim	1H1 819 742
27	Trim	1H1 819 743
28	rotary insert	1H6 819 755
29	rotary insert Dash panel, padded	1H6 819 756
3	Footwell vent	1H1 819 151
30	Air channel for pass. cabinheater	1H1 819 803 A
31	Air channel for pass. cabinheater	1H1 819 804 A
33	hexagon head panel screw 4,2 X 16 4,2 X 16	N 013 882 1
34	hexagon head panel screw 5,5 X 19 5,5 X 19	N 013 888 2
35	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
37	Speed nut M 4 X 13 X 11,5 M 4 X 13 X 11,5	N 902 825 01
38	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
39	Hexagon nut M 5 M 5	N 011 005 17
39	Hexagon nut M 5 M 5	N 011 005 4
4	Air channel for pass. cabinheater	1H1 819 159 A
40	Washer 5 5	N 011 523 18
41	Housing for air ventfor vehicles with electroni-cally regulated air condit.	1H6 907 481 B
5	Air channel for pass. cabinheater	1H1 819 160 A
7	Air guide Intermediate piece	1H1 819 363 A
8	Water deflector	1H1 819 415 B
9	Water deflector	1H1 819 416 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 27 Air cond. system / heating
