Fan heater — Mk3 Golf Air Cond System Heating (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Fan

Generation: Mk3 1997 (RDW) Group: Air cond. system / heating Parts: 42 Primary OEM: 1H2 819 021, 1H2 819 151, 1H2 819 351

Fan heater for the Volkswagen Golf Mk3 (1997): factory exploded diagram 819020 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 42 OEM part numbers including 1H2 819 021, 1H2 819 151 and 1H2 819 351. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 42 OEM part numbers across 42 numbered positions.

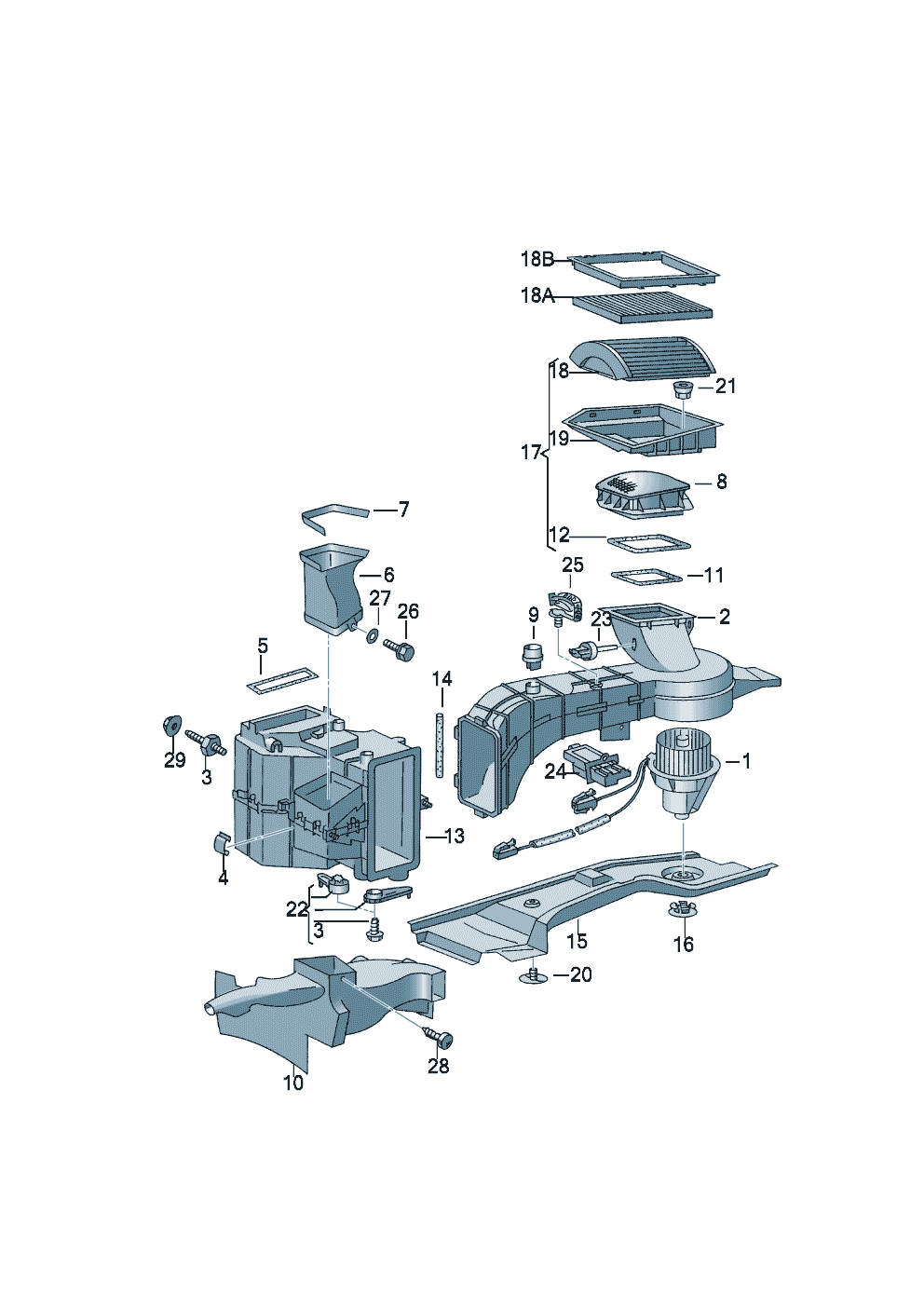

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Fan	1H2 819 021
(10)	Footwell vent	1H2 819 151
(13)	Air distribution housing	1H2 819 351
(15)	Cover	1H2 819 593
(19)	Filter housingfor vehicles with dust andpollen filter	1J1 819 640 B
(19)	Filter housingfor vehicles with dust andpollen filter	1H2 819 640 A
(19)	Filter housingfor vehicles with dust andpollen filter	1J2 819 640 A
(19)	Filter housingfor vehicles with dust andpollen filter	1H1 819 640 A
(2)	Air guide channel	1H2 819 053
(22)	1 set: levers for airdistribution housing	1H2 898 001
(6)	Intermediate piece	1H2 819 081
(8)	intake manifold	1H2 819 098 A
1	Fan	1H1 819 021
10	Footwell vent	1H1 819 151
11	Seal	1H0 819 165
12	Seal	1H0 819 166
13	connection box	1H1 820 351
14	Seal	191 819 370
15	Cover	1H1 819 593
16	Bungs	191 819 598
18A	Dust and pollen filter insert	1H0 819 644 B
18A	Filter insert with odour andharmful substance filter 'ECO'Economy	JZW 819 653
18A	Dust and pollen filter insert	1H0 819 644
18B	Framefilter element	1H0 819 648 A
18B	Framefilter element	1H0 819 648
2	Air guide channel	1H1 819 053
20	round hd. screw	1H0 819 943
21	Locknut M 5 M 5	191 837 270
22	1 set: levers for airdistribution housing	1H1 898 001
23	Temperature sensorfor vehicles with elec-tronically controlled heating	1H0 907 543
24	series resistor	1H0 959 263
26	oval head panel screw (combi) 4,8 X 16 4,8 X 16	N 103 091 01
27	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
28	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
29	hex. nut with rubberwasher M 6 M 6	N 905 748 01
3	double stud with hexagon drive	1H0 819 056
4	Clip	321 819 059
5	Seal 810 X 25 X 6 810 X 25 X 6	7D0 819 069
5	Seal 814 X 15 X 6 814 X 15 X 6	701 819 069
6	Intermediate piece	1H1 819 081
7	Seal	1H0 819 090 B
9	Mounting	191 819 135
