Which VW part numbers are on the fresh air heater controls diagram for the Mk3 Golf?

This diagram lists 40 OEM part numbers for the Mk3 Golf. The first three are 1H0 959 543 0 1C, 1H6 819 075 0 1C and 1H6 820 075 0 1C.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Fresh air heater controls — Mk3 Golf Air Cond System Heating (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Fan

Generation: Mk3 1997 (RDW) Group: Air cond. system / heating Parts: 40 Primary OEM: 1H0 959 543 0 1C, 1H6 819 075 0 1C, 1H6 820 075 0 1C

Fresh air heater controls for the Volkswagen Golf Mk3 (1997): factory exploded diagram 819040 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 40 OEM part numbers including 1H0 959 543 0 1C, 1H6 819 075 0 1C and 1H6 820 075 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 40 OEM part numbers across 40 numbered positions.

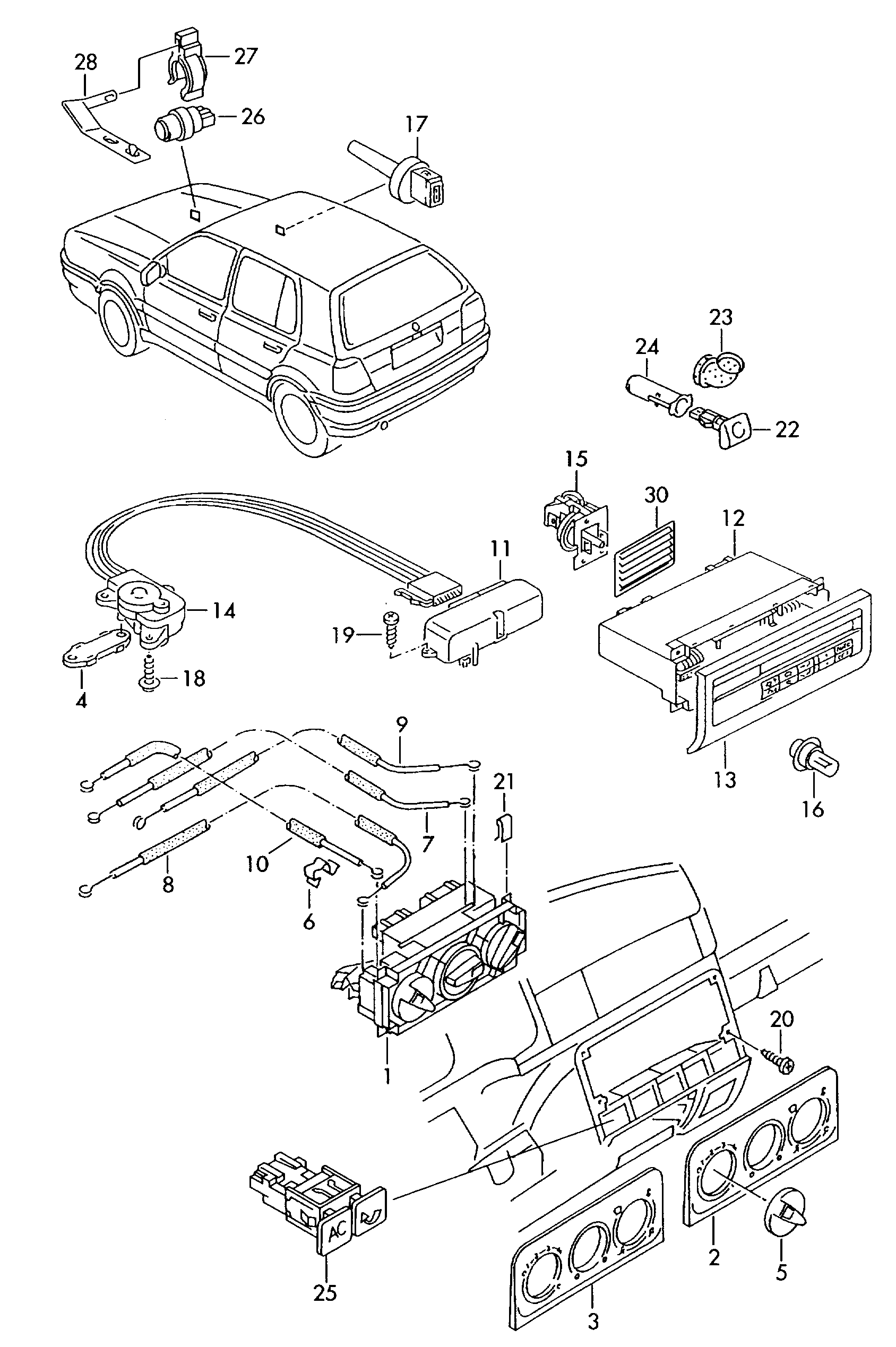

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 959 543 0 1C
	Satin black	1H6 819 075 0 1C
	Satin black	1H6 820 075 0 1C
	Satin black	1H0 819 129 0 1C
(1)	fresh airand heater controls air condit.	1H0 820 045 B
(1)	fresh airand heater controls air condit.	1H0 820 045 C
(10)	cable for temp. control flap 495 MM 495 MM	1H2 819 837
(15)	Housing for air ventfor vehicles with electroni-cally regulated air condit.Temperature sensor	1H6 907 481 B
(16)	Bulb carrier with bulbfor vehicles with electroni-cally regulated air condit.	1H0 919 243
(16)	bulbillumination forfresh air controls W 5/1,2 W 12 V 1,2 W W 5/1,2 W 12 V 1,2 W	N 017 751 2
(16)	Bulb carrier with bulb	1H0 919 243 C
(17)	Temperature sensorfor vehicles with electroni-cally regulated air condit.	357 907 543 A
(7)	Control lid cable 500 MM 500 MM	1H2 819 831
(8)	Locking flap cable 545 MM 545 MM	1H2 819 833
(9)	Defroster flap cable 705 MM 705 MM	1H2 819 835
1	fresh airand heater controls	1H0 819 045 C
10	cable for temp. control flap 585 MM 585 MM	1H1 819 837
12	Control and regulating unitfor vehicles with electroni-cally regulated air condit.	1H0 907 044 A
13	Trimfor vehicles with electroni-cally regulated air condit.	1H0 907 047 A
14	control motor fortemperature regulating flapfor vehicles with electroni-cally regulated air condit.	3A1 907 511
15	Temperature sensordashboardfor vehicles with electroni-cally regulated air condit. INNEN INNEN	1H0 907 527
18	Plastic slotted screw 4,2 X 16 4,2 X 16	433 862 195
19	oval head panel screw 2,9 X 13 2,9 X 13	N 013 954 1
2	trim for fresh air andheater controls	1H6 819 075
20	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
21	Speed nut M 4 X 13 X 11,5 M 4 X 13 X 11,5	N 902 825 01
22	Photosensorfor vehicles with electroni-cally regulated air condit.	1H0 907 539 A
22	Photosensorfor vehicles with electroni-cally regulated air condit.	1H0 907 539
23	Grommetfor vehicles with electroni-cally regulated air condit.	1H0 907 545
24	guide sleevefor vehicles with electroni-cally regulated air condit.	1H0 907 546 A
25	switch for air conditioner	1H0 959 543
26	temperature switchfor vehicles with manuallyregulated air conditioner	1H0 959 625
27	Clip air condit.	1H0 971 847
28	Bracket air condit.	1H0 907 531 A
3	trim for fresh air andheater controls air condit.	1H6 820 075
5	knob	1H0 819 129
6	Clip	823 819 679
7	Control lid cable 639 MM 639 MM	1H1 819 831
8	Locking flap cable 807 MM 807 MM	1H1 819 833
9	Defroster flap cable 488 MM 488 MM	1H1 819 835

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 27 Air cond. system / heating
Factory subgroup: 819040

Related factory diagrams

Other published air cond system heating plates for the Mk3 Golf in this catalogue.

C compressorconnecting mounting parts compressor 1992 · subgroup 260025
C compressorconnecting mounting parts compressor 1992 · subgroup 260015
C condenserfluid container connecting parts refrigerant 1992 · subgroup 260040
C condenserfluid container connecting parts 1993 - 1996 · subgroup 260041
C compressorconnecting mounting parts compressor 4 cylinder 1997 · subgroup 260016
C compressorconnecting mounting parts compressor 6 cylinder 1997 · subgroup 260026
C condenserfluid container connecting parts 4 cylinder 1997 · subgroup 260041
Air distribution housing evaporator housingevaporator fan 1997 · subgroup 820010
