Heat exchanger coolant hoses heater air condit 4 cylinder — Mk3 Golf Air Cond System Heating (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Fan

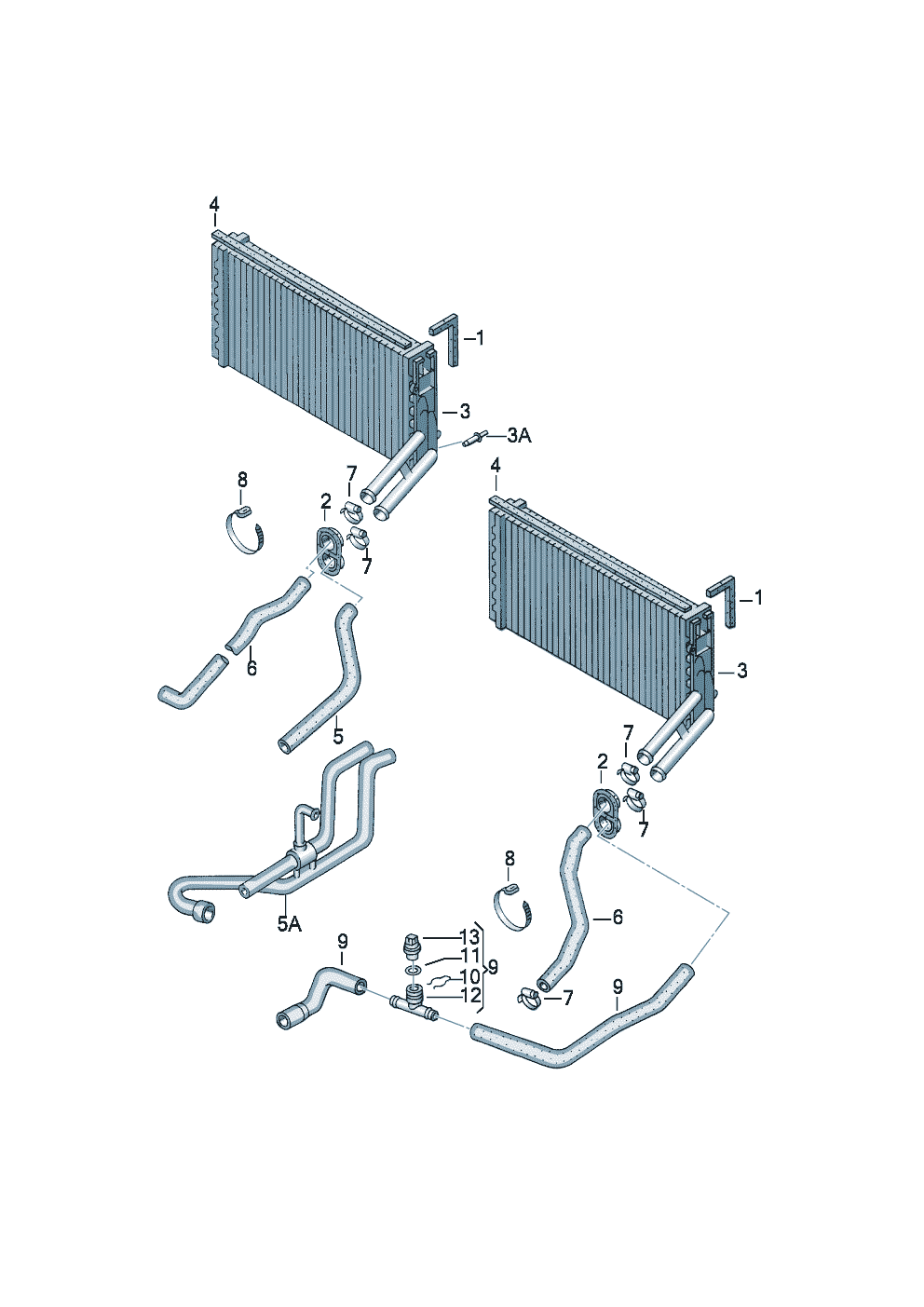

Heat exchanger coolant hoses heater air condit 4 cylinder for the Volkswagen Golf Mk3 (1997): factory exploded diagram 819050 from the Volkswagen ETKA parts catalogue, group 27 Air cond. system / heating, listing 27 OEM part numbers across 28 catalogued positions including 1H2 819 031 B, 1H2 819 031 A and 1H0 819 373 D. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ABD, ABF, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 27 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| heat exchanger Coolant hoses heaterair condit. 4-cylinder+AAM,ABD,ABF,ACC,AEP,AEE,ADZ,AEX,AGG,AKS,AKR,ANP,ANN 6-ZYLINDER:AAADiesel eng.+AAZ,1 Y,1 Z,AEY,AFN,AHUALE heaterair condit. 1Y1ZABDABFACCADZAEEAEPAEXAEYAFNAGGAKRAKSANP | — | |
| (3) | heat exchanger also use: 1 H 0 820 233 air condit. 1 H 0 820 233 | 1H2 819 031 B |
| (3) | heat exchanger also use: 1 H 0 820 233 air condit. 1 H 0 820 233 | 1H2 819 031 A |
| (5) | Coolant hose AEE,AEX AEEAEX | 1H0 819 373 D |
| (6) | Coolant hose AFT,AKS AFTAKS | 1H0 819 371 G |
| (6) | Coolant hose ABF ABF | 1H0 819 371 C |
| (6) | Coolant hose ecomatic 1 Y,AEY AEY | 1H0 819 371 B |
| (6) | Coolant hose AEE,AEX AEEAEX | 1H0 819 371 E |
| (9) | Coolant hosefor vehicles with electroni-cally regulated air condit. ABF ABF | 1H0 819 371 C |
| 1 | Seal 680 X 8 X 10 680 X 8 X 10 | 321 819 017 |
| 10 | retaining springfor vehicles with electroni-cally regulated air condit. Diesel eng.+AAZ,1 Z,AFN,AHU,ALE 1ZAFNAHUALE | 025 121 142 |
| 10 | retaining springfor vehicles with electroni-cally regulated air condit. Diesel eng.+AAZ,1 Z,AFN,AHU,ALE 1ZAFNAHUALE | 032 121 142 |
| 11 | O-ring 19,6 X 3,65 Diesel eng.+AAZ,1 Z,AFN,AHU,ALE 19,6 X 3,65 1ZAFNAHUALE | N 903 168 02 |
| 12 | t-piecefor vehicles with electroni-cally regulated air condit. Diesel eng.+AAZ,1 Z,AFN,AHU,ALE 1ZAFNAHUALE | 4A0 819 497 |
| 13 | Temperature sensorfor coolant temperaturegauge 20 MM Diesel eng.+AAZ,1 Z,AFN,AHU,ALE 20 MM 1ZAFNAHUALE | 251 919 501 D |
| 2 | Sealheat exchanger | 1H0 819 019 |
| 3 | heat exchanger also use: 1 H 0 820 233 air condit. 1 H 0 820 233 | 191 819 031 F |
| 3 | heat exchanger also use: 1 H 0 820 233 air condit. 1 H 0 820 233 | 1H1 819 031 A |
| 3 | heat exchanger also use: 1 H 0 820 233 air condit. 1 H 0 820 233 | 1H1 819 031 B |
| 3A | connection piece Vacuum hose air condit. | 1H0 820 233 |
| 4 | Seal 814 X 15 X 6 814 X 15 X 6 | 701 819 069 |
| 4 | Seal 810 X 25 X 6 810 X 25 X 6 | 7D0 819 069 |
| 5 | Coolant hose AAM,ABF,ACC,AEP,AAZ,AGG,ADZ,AFT,AKS,AKR,ALE,AHU,1 Y,1 Z,AEY,AFN,ANP,ANN 1Y1ZAAMAAZABFACCADZAEPAEYAFNAFTAGGAHUAKRAKSALEANNANP | 1H0 819 373 C |
| 6 | Coolant hose AAM,ACC,ADZ,AAZ,AEP,AGG,AFN,AEY,AHU,1 Y,1 Z,ALE,AKR,ANP,ANN 1Y1ZAAMAAZACCADZAEPAEYAFNAGGAHUAKRALEANNANP | 1H0 819 371 |
| 7 | Spring band clamp 27 X 15 27 X 15 Type 19 makes this → | N 016 403 1 |
| 8 | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 8 | Cable ties 6,5 X 175 6,5 X 175 | N 900 603 01 |
| 9 | Coolant hosefor vehicles with electroni-cally regulated air condit. AAM,ACC,ADZ,AEE,AAZ,1 Z,AHU,ALE,ANN 1ZAAMAAZACCADZAEEAHUALEANN | 1H0 820 371 B |
Reproduction parts by Type 19 for this diagram
Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.
- Mk2 Golf Engine Hose Clamps Factory number on this diagram: N 016 403 1
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these air cond system heating diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- 1Y, 1Z, AAM, AAZ, ABD, ABF, ACC, ADZ
- Variant tags
- diesel
- Factory group
- 27 Air cond. system / heating
- Factory subgroup
- 819050
