Air guide — Mk3 Golf Cooling (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Coolant pump

Generation: Mk3 1997 (RDW) Group: Drive cooling Rebuild step 8 Parts: 19 Primary OEM: 1H0 119 113 C, 1H0 119 137 A, 1H0 121 210 B

Air guide for the Volkswagen Golf Mk3 (1997): factory exploded diagram 121080 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 19 OEM part numbers including 1H0 119 113 C, 1H0 119 137 A and 1H0 121 210 B. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 19 OEM part numbers across 19 numbered positions.

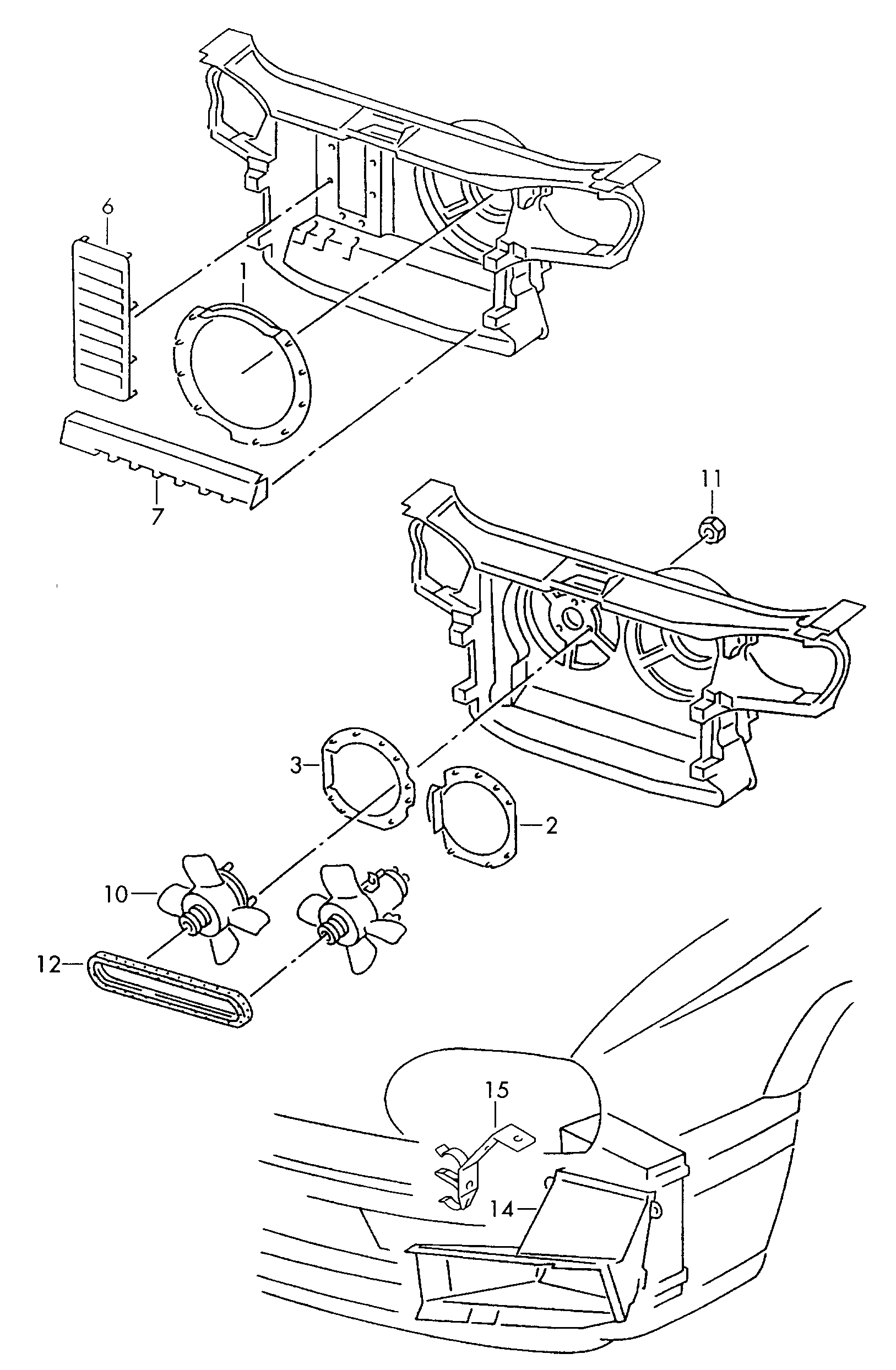

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(10)	fan wheel with bearing For vehicles with twinfan authoritypostpolice TAXI	1H0 119 113 C
(10)	fan wheel with bearing For vehicles with twinfanfor models withtowing facilityfor vehicle use in warmclimatesfor vehicles with air condit.for vehicles withautomatic D=74 MM AAA,AAZ,AEY D=74 MM AAAAAZAEY	1H0 119 113 C
(12)	v-belt For vehicles with twinfanfor models withtowing facilityfor vehicle use in warmclimatesfor vehicles with air condit.for vehicles withautomatic 4,68 X 860 MM AAA,AAZ,AEY 4,68 X 860 MM AAAAAZAEY	1H0 119 137 A
(12)	v-belt 4,68 X 860 MM authoritypostpolice TAXI 4,68 X 860 MM	1H0 119 137 A
(2)	guide ringfor vehicles with air condit. ABF,AAM,1 Z,AEP,ADZ,ACC,AGG,AFT,AFN,AHU,ALE,AKR,AKS 1ZAAMABFACCADZAEPAFNAFTAGGAHUAKRAKSALE	1H0 121 210 B
(2)	guide ringfor models withtowing facilityfor vehicle use in warmclimates 1 Y 1Y	1H0 121 210 B
(3)	guide ringfor models withtowing facilityfor vehicle use in warmclimates 1 Y 1Y	1H0 121 210 C
(3)	guide ringfor vehicles with air condit. ABF,AAM,1 Z,AEP,ADZ,ACC,AGG,AFT,AFN,AHU,ALE,AKR,AKS 1ZAAMABFACCADZAEPAFNAFTAGGAHUAKRAKSALE	1H0 121 210 C
1	guide ring AAM,1 Z,AEP,ADZ,ACC,AEX,AEE,AGG,AFT,AFN,AHU,ALE,AKR,AKS,APQ 1ZAAMACCADZAEEAEPAEXAFNAFTAGGAHUAKRAKSALEAPQ	1H0 121 210 A
10	fan wheel with bearing For vehicles with twinfan D=52 MM D=52 MM	1H0 119 113
11	Hexagon collar nut For vehicles with twinfan M 6 M 6	N 901 752 03
12	v-belt For vehicles with twinfan 4,68 X 800 MM 4,68 X 800 MM	1H0 119 137
14	Air guidefor vehicles with additionalcoolant radiator Automatic+AAZ	1H0 121 283
14	Air guidefor vehicles with additionalcoolant radiator Air cond.+AAZ	1H0 121 283
15	Hose bracket Air cond.+AAZ	1H0 121 290
2	guide ring AAZ,AAA,AEY AAAAAZAEY	1H0 121 210 B
3	guide ring AAZ,AAA,AEY AAAAAZAEY	1H0 121 210 C
6	Radiator louvre AAM,ABF,1 Y,1 Z,AEP,ADZ,ACC,AGG,AFT,AFN,AHU,ALE,AKR,AKS 1Y1ZAAMABFACCADZAEPAFNAFTAGGAHUAKRAKSALE	1H0 121 223 A
7	Air guide for coolant radiator: 630 X 320 MM 630 X 320 MM	1H0 121 294

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC, ADZ
Variant tags: diesel
Factory group: 11 Drive cooling
Factory subgroup: 121080
