Coolant cooling system — Mk3 Golf Cooling (1997)

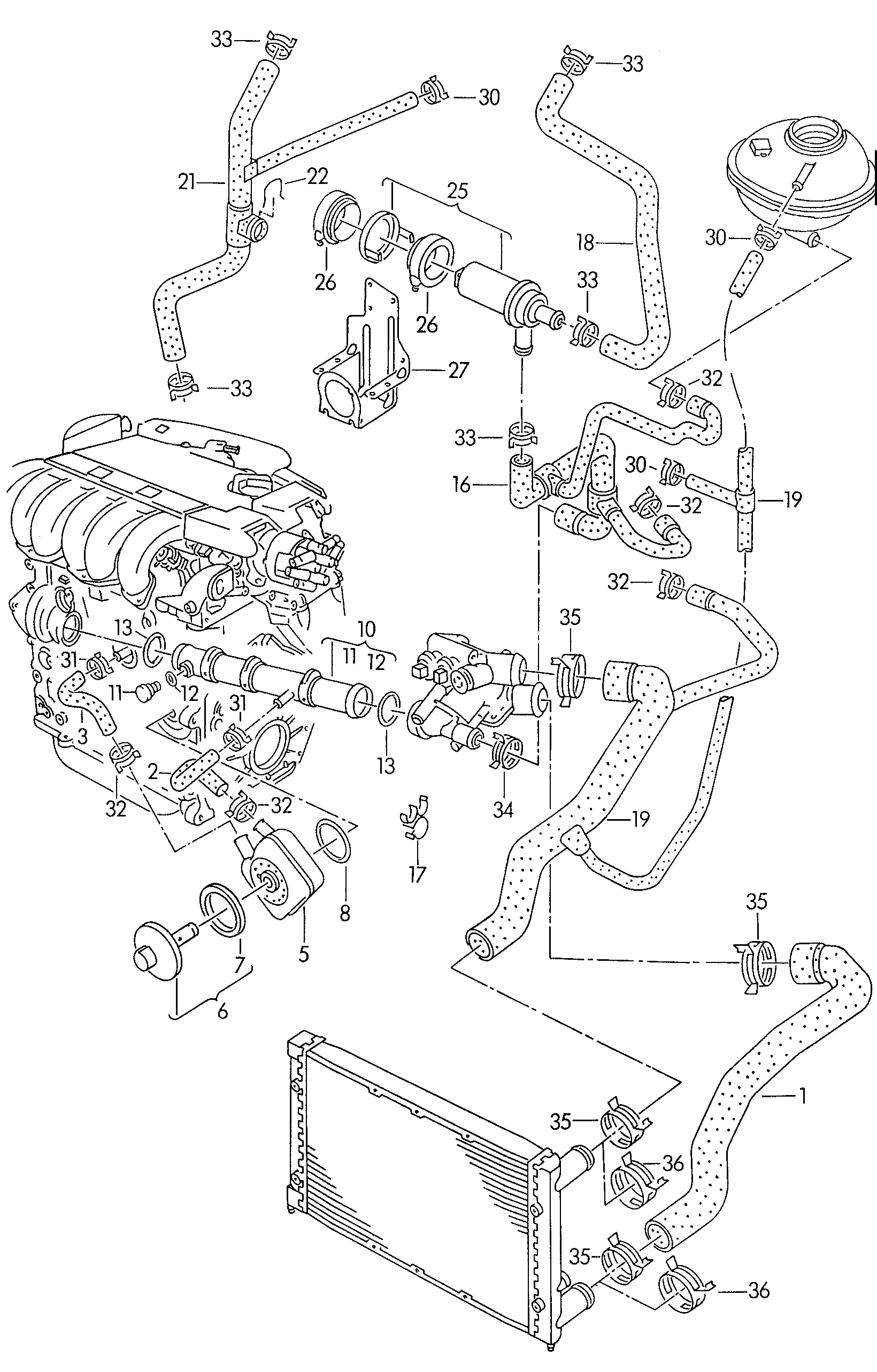

Factory title: Volkswagen Golf (1997 - 1998) - Coolant pump
Coolant cooling system for the Volkswagen Golf Mk3 (1997): factory exploded diagram 121060 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 38 OEM part numbers across 39 catalogued positions including 1H0 121 063 G, 1H0 121 449 E and 1H0 121 101 Q. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 38 OEM part numbers across 39 numbered positions.
| № | Description | Part number |
|---|---|---|
| Coolant cooling system 2.8 Ltr. 6-cylinder+AAA 2.8 Ltr. | — | |
| (16) | Coolant hose(Expansion tank > coolant regulator housing > additional coolant pump) | 1H0 121 063 G |
| (16) | Coolant hose(reservoir > cooler - at fluid > coolant thermostat housing > additional water pump) automatic | 1H0 121 449 E |
| (19) | Coolant hose(Expansion tank> throttle valve connection > coolant regulator housing >coolant radiator) | 1H0 121 101 Q |
| (19) | Coolant hose(Expansion tank> throttle valve connection > coolant regulator housing >coolant radiator) | 1H0 122 101 E |
| (21) | Coolant hose(throttle valve housing > heat exchanger>cylinder head) | 1H0 121 157 H |
| (21) | Coolant hose(throttle valve housing > heat exchanger>cylinder head) | 1H0 121 157 |
| (26) | rubber mount.with locat.divice | 066 959 209 |
| (5) | Oil cooler | 068 117 021 BX |
| (6) | Cover | 021 117 061 B |
| 1 | Coolant hose(Coolant regulator housing > coolant radiator) | 1H0 121 051 F |
| 10 | Coolant pipe | 021 121 050 C |
| 11+12 | sealing plug | 021 121 022 |
| 13 | O-ring 34,5 X 3,55 34,5 X 3,55 | N 101 392 01 |
| 17 | Bracket | 021 121 068 |
| 18 | Coolant hose(heat exchanger > additional water pump) | 1H0 121 073 C |
| 19 | Coolant hose(Expansion tank > throttle valve connect. > transmission oil cooler>coolant regulator housing>coolant radiator) automatic | 1H0 121 447 D |
| 19 | Coolant hose(Expansion tank > throttle valve connection > transm. oil cooler > coolant regulat. housing>coolant radiator) automatic | 1H0 122 447 |
| 2 | Coolant hose(oil cooler > water pipe) | 021 121 058 A |
| 21 | Coolant hose(throttle valve housing > heat exchanger>cylinder head)for vehicles with electroni-cally regulated air condit. | 1H0 121 157 A |
| 22 | retaining spring | 025 121 142 |
| 22 | retaining spring | 032 121 142 |
| 25 | Additional coolant pump | 251 965 561 B |
| 26 | Rubber bush | 035 959 209 E |
| 27 | Bracket Additional coolant pump | 021 121 079 D |
| 3 | Coolant hose(oil cooler > cylinder block) | 021 121 096 |
| 30 | Spring band clamp 13 X 15 13 X 15 | N 100 987 01 |
| 31 | Spring band clamp 19 X 15 19 X 15 | N 016 401 1 |
| 32 | Spring band clamp 23 X 15 23 X 15 Type 19 makes this → | N 016 402 1 |
| 33 | Spring band clamp 27 X 15 27 X 15 Type 19 makes this → | N 016 403 1 |
| 34 | Spring band clamp 32 X 15 32 X 15 Type 19 makes this → | N 016 404 1 |
| 35 | Spring band clamp 40 X 15 40 X 15 Type 19 makes this → | N 016 410 1 |
| 36 | Spring band clamp 47 X 15 47 X 15 | N 016 409 1 |
| 5 | Oil cooler | 068 117 021 B |
| 7 | Seal 62,8 62,8 | 038 117 070 |
| 7 | Seal 62,8 62,8 | 021 117 070 |
| 8 | O-ring 59 X 5 59 X 5 | N 901 814 02 |
| 8 | Seal 59 X 5 59 X 5 | 038 117 070 A |
| 8 | O-ring 59 X 5 59 X 5 | 021 117 070 A |
Reproduction parts by Type 19 for this diagram
Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.
- Mk2 Golf Engine Hose Clamps Factory numbers on this diagram: N 016 402 1, N 016 403 1, N 016 404 1, N 016 410 1
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 11 Drive cooling
- Factory subgroup
- 121060
Related factory diagrams
Other published cooling plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the coolant cooling system diagram for the Mk3 Golf?
- This diagram lists 38 OEM part numbers for the Mk3 Golf. The first three are 1H0 121 063 G, 1H0 121 449 E and 1H0 121 101 Q.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
