Cooler coolant reservoir coolant regulator housing — Mk3 Golf Cooling (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Coolant pump

Generation: Mk3 1997 (RDW) Group: Drive cooling Rebuild step 8 Parts: 37 Primary OEM: 1H0 121 422 D, G 012 A8F M8, G 012 A8F M1

Cooler coolant reservoir coolant regulator housing for the Volkswagen Golf Mk3 (1997): factory exploded diagram 121067 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 35 OEM part numbers across 37 catalogued positions including 1H0 121 422 D, G 012 A8F M8 and G 012 A8F M1. Parts on this plate carry the engine codes AEE and APQ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 35 OEM part numbers across 37 numbered positions.

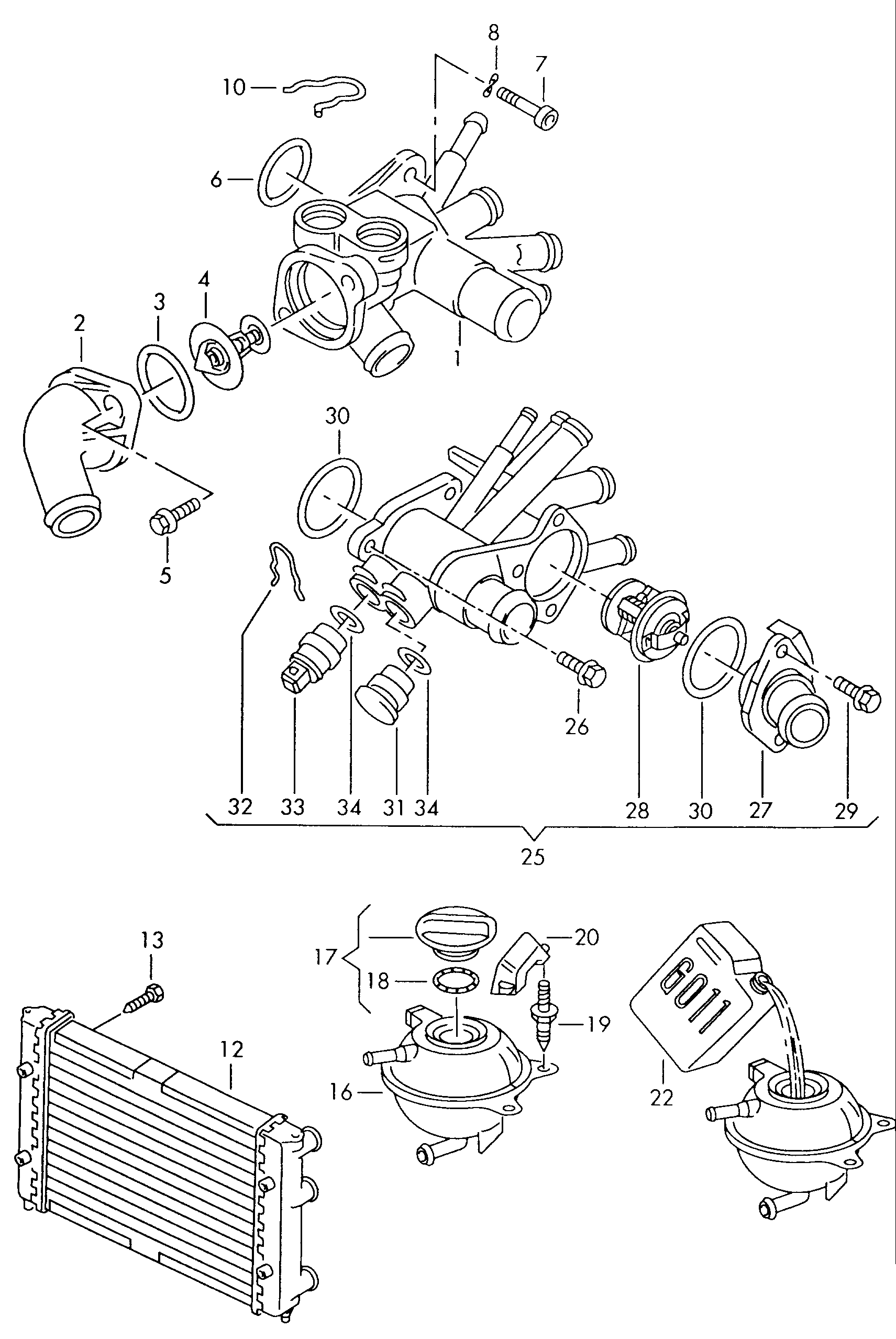

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cooler for coolant Reservoir Coolant regulator housing 4-cylinder	—
	Cooler for coolant Reservoir Coolant regulator housing 4-cylinder+AEX,AEE,APQ AEEAPQ	—
(20)	Cover cap G 12 G 12	1H0 121 422 D
(22)	coolant additive, plus Service fluid	G 012 A8F M8
(22)	coolant additive, plus Service fluid	G 012 A8F M1
(22)	Coolant additive	G 011 A8C A8
(22)	Coolant additive	G 012 A8D A8
(22)	coolant additive, plus Service fluid	G 012 A8F M8
(22)	Coolant additive	G 012 A8D A1
(25)	Coolant regulator housing	032 121 111 D
(25)	Coolant regulator housing	032 121 111 N
12	Cooler for coolant 430 X 320 MM 430 X 320 MM	6N0 121 253 B
13	hex. hd. self-tap bolt (combi) 6,6 X 19-D 6,6 X 19-D	N 905 426 03
13	hex. hd. self-tap bolt (combi) 6,3 X 19 6,3 X 19	N 905 426 02
16	Coolant expansion tank	1H0 121 407 A
17	End cap	1H0 121 321 A
17	End cap	1H0 121 321 C
17	End cap	357 121 321 C
18	O-ring 28,5 X 3,8 28,5 X 3,8	1H0 121 687
18	O-ring 28,5 X 3,8 28,5 X 3,8	1H0 121 687 A
19	double stud with hexagon drive 3 X 24/M 6 X 15,5 3 X 24/M 6 X 15,5	N 906 140 01
20	Cover cap G 11 G 11	357 121 422
22	Coolant additive	G 011 A8C A1
22	coolant additive, plus Service fluid	G 012 A8F M1
26	hexagon head bolt (combi) M 6 X 30 M 6 X 30	N 100 050 04
26	hexagon head bolt (combi) M 6 X 30-S 1-N M 6 X 30-S 1-N	N 100 050 07
27	Pipe union	032 121 121 B
27	Pipe union	032 121 121 J
28	Coolant regulator 87°C-102°C 87°C-102°C	032 121 110 B
29	hex hd. panel screw, shoulder H 7 X 20 H 7 X 20	N 906 298 01
30	O-ring 48 X 4,2 48 X 4,2	032 121 119 H
30	O-ring 47 X 4 47 X 4	032 121 119 B
31	Bungs	357 121 140
32	retaining spring	032 121 142
33	Temperature sensorfor coolant temperaturegauge 20 MM 20 MM	6U0 919 501 B
33	Temperature sensorfor coolant temperaturegauge 20 MM 20 MM	357 919 501 A
34	O-ring 19,6 X 3,65 19,6 X 3,65	N 903 168 01
