Ashtray — Mk3 Golf Dash Panel Centre Console (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings

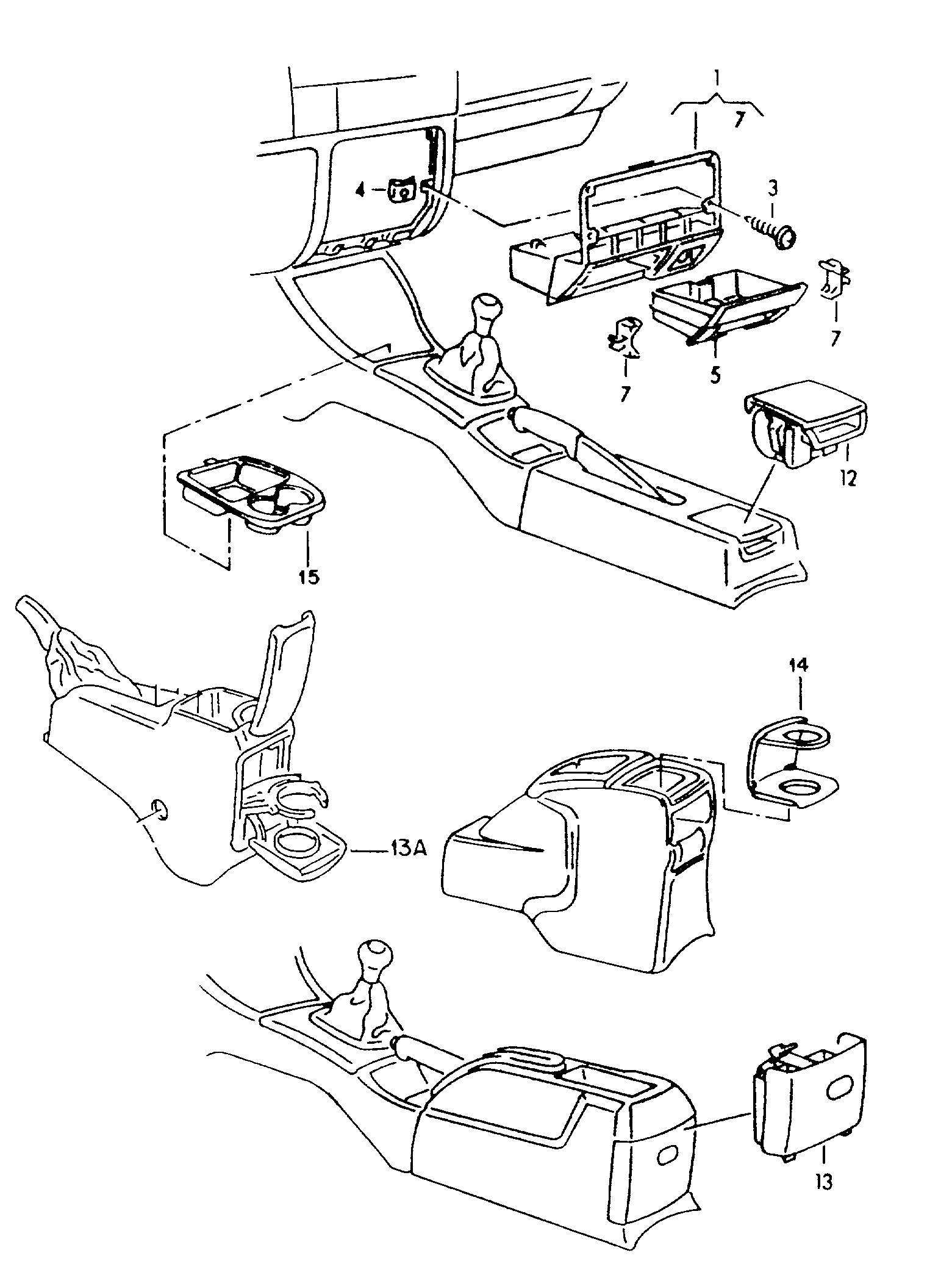

Ashtray for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857030 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 36 OEM part numbers including 1EM 862 533 B 41, 1H1 857 305 D 0 1C and 1HM 857 962 T 21. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 36 OEM part numbers across 36 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1EM 862 533 B 41 | |
| Satin black | 1H1 857 305 D 0 1C | |
| beaver | 1HM 857 962 T 21 | |
| Satin black | 1HM 857 962 A B 41 | |
| beaver | 1HM 857 962 A T 21 | |
| Satin black | 1H0 857 962 A B 41 | |
| mauritius blue | 1H0 857 962 A F 31 | |
| beaver | 1H0 857 962 A T 21 | |
| Satin black | 1H0 857 962 A B 41 | |
| beaver | 1H0 857 962 A T 21 | |
| Satin black | 1H0 857 962 A B 41 | |
| mauritius blue | 1H0 857 962 A F 31 | |
| beaver | 1H0 857 962 A T 21 | |
| Satin black | 1HM 862 543 B 41 | |
| Satin black | 1HM 862 533 B B 41 | |
| mauritius blue | 1HM 862 533 B F 31 | |
| beaver | 1HM 862 533 B T 21 | |
| Satin black | 1H1 858 981 B 0 1C | |
| Satin black | 1H1 857 309 0 1C | |
| Satin black | 1HM 857 962 B 41 | |
| mauritius blue "CDN" | 1HM 857 962 F 31 | |
| (1) | switch bracket withhousing for ashtray | 1H1 857 305 D |
| (12) | ashtray only for: 1 HM 863 319 B 1 HM 863 319 B | 1HM 857 962 A |
| 12 | ashtray "USA" | 1HM 857 962 |
| 13 | ashtrayfor vehicles with Centre console with stow. comp only for: 1 H 0 863 319 A "CDN" 1 H 0 863 319 A | 1H0 857 962 A |
| 13 | ashtray only for: 1 H 0 863 319 A 1 H 0 863 319 A | 1H0 857 962 A |
| 13 | ashtray only for: 1 H 0 863 319 A 1 H 0 863 319 A | 1H0 857 962 A |
| 13A | Lid for cupholderfor models with airbag "USA","CDN" | 1HM 862 543 |
| 14 | Drinks holder "USA":GOLF GL,JETTA GL | 1HM 862 533 B |
| 15 | Drinks holderfor models with airbag | 1EM 862 533 |
| 2 | Cover cap with symbolfor diagnostic plug | 1H1 858 981 B |
| 3 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 902 412 03 |
| 4 | Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5 | N 904 190 03 |
| 4 | Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5 | N 904 190 02 |
| 5 | ashtray | 1H1 857 309 |
| 7 | Glide piece | 1H0 857 327 |
