Dashboard fittings — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 43 Primary OEM: 1HM 857 917 B F 31, 1HM 857 917 B T 21, 1H1 857 209 H 21

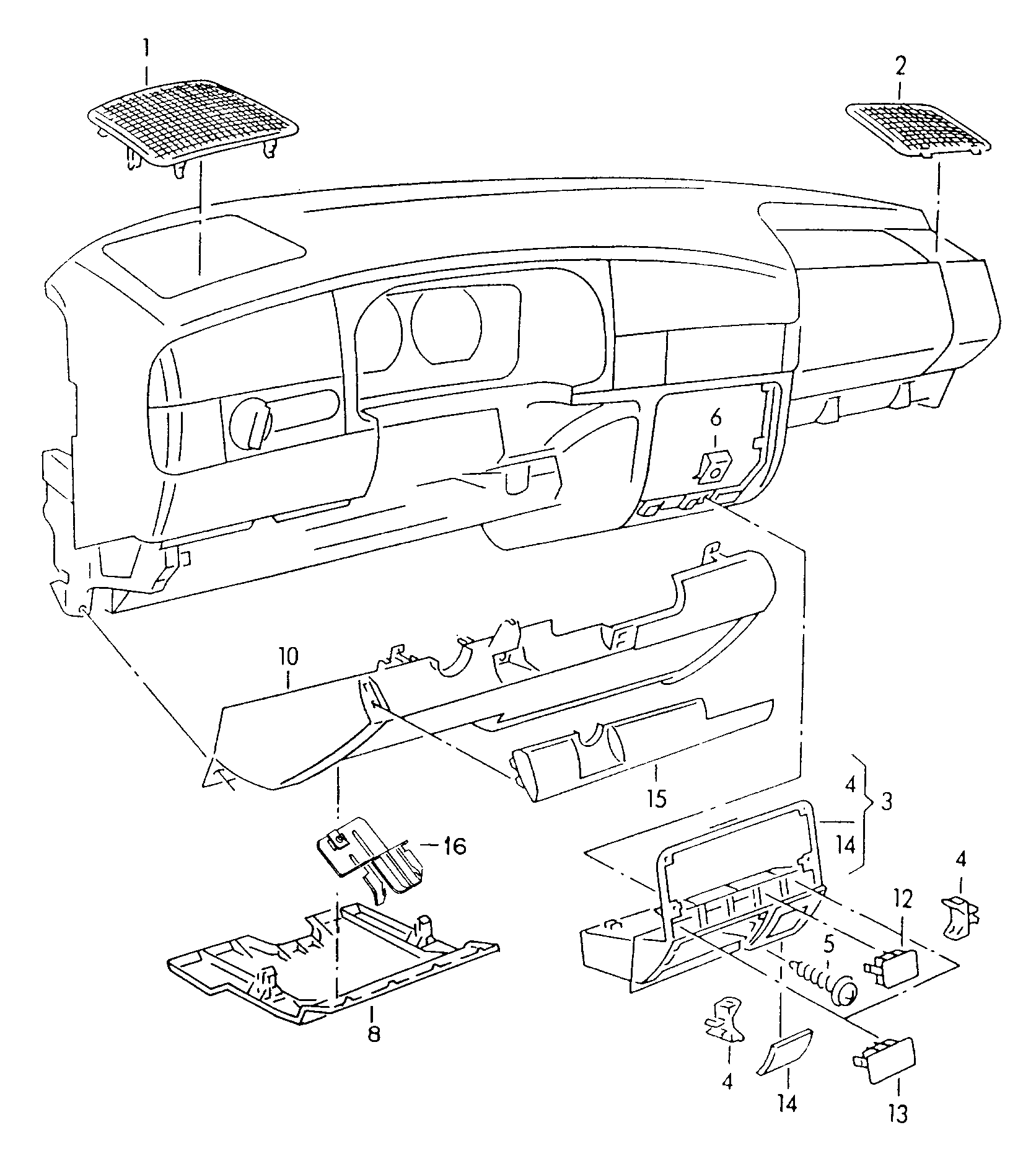

Dashboard fittings for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857010 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 43 OEM part numbers including 1HM 857 917 B F 31, 1HM 857 917 B T 21 and 1H1 857 209 H 21. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 43 OEM part numbers across 43 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mauritius blue	1HM 857 917 B F 31
	beaver	1HM 857 917 B T 21
	mauritius blue	1H1 857 209 H 21
	beaver	1H1 858 183 A T 21
	Satin black	1H1 857 209 A 0 1C
	mauritius blue	1H1 858 183 A F 31
	beaver	1H1 857 209 A S 11
	Satin black	1H1 858 183 A B 41
	mauritius blue	1H1 857 210 H 21
	beaver	1H1 858 183 T 21
	Satin black	1H1 857 210 A 0 1C
	mauritius blue	1H1 858 183 F 31
	beaver	1H1 857 210 A S 11
	Satin black	1H1 858 183 B 41
	Satin black	1H1 857 305 D 0 1C
	Satin black	1H1 858 981 B 0 1C
	Satin black	1H0 858 180 0 1C
	Satin black	1H0 858 179 0 1C
	beaver	1H1 857 923 T 21
	mauritius blue	1H1 857 923 F 31
	Satin black	1HM 863 081 B 0 1C
	Satin black	1H1 857 923 B 41
	Satin black	1HM 857 917 B B 41
(1)	Loudspeaker trim also use: 1 H 1 857 210 A(S 11) 1 H 1 857 210 A(S 11)	1H1 857 209 A
(1)	Loudspeaker trim also use: 1 H 1 857 210 A(01 C) 1 H 1 857 210 A(01 C)	1H1 857 209 A
(15)	Trim	1H1 858 183
(2)	Loudspeaker trim also use: 1 H 1 857 209 A(01 C) 1 H 1 857 209 A(01 C)	1H1 857 210 A
(2)	Loudspeaker trim also use: 1 H 1 857 209 A(S 11) 1 H 1 857 209 A(S 11)	1H1 857 210 A
(3)	switch bracket withhousing for ashtray	1H1 857 305 D
(5)	fillister hd. bolt M 4 X 15 M 4 X 15	N 904 484 02
(8)	Coverfor fuse box/relay plate F 1 H-T-059 795>> "USA","CDN"	1HM 863 081 B
1	Loudspeaker trim	1H1 857 209
10	Cover Cross member	1H1 857 923
12	Dummy cover	1H0 858 179
13	Dummy cover	1H0 858 180
14	Cover cap with symbolfor diagnostic plug GHE/TJG GHE/TJG	1H1 858 981 B
15	Trimfor models with choke cable "CDN"	1H1 858 183 A
16	Clip	1HM 863 088 A
2	Loudspeaker trim	1H1 857 210
4	Glide piece	1H0 857 327
5	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
6	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 03
8	Coverfor fuse box/relay plate	1HM 857 917 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 32 Dash panel / centre console
Factory subgroup: 857010
