Three point safety belt knee padding f 1 h r 012 659 front — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 105 Primary OEM: 1HM 857 706 B 41, 1HM 857 706 A B 41, 1HM 857 755 C 0 1C

Three point safety belt knee padding f 1 h r 012 659 front for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857060 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 102 OEM part numbers across 105 catalogued positions including 1HM 857 706 B 41, 1HM 857 706 A B 41 and 1HM 857 755 C 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 102 OEM part numbers across 105 numbered positions.

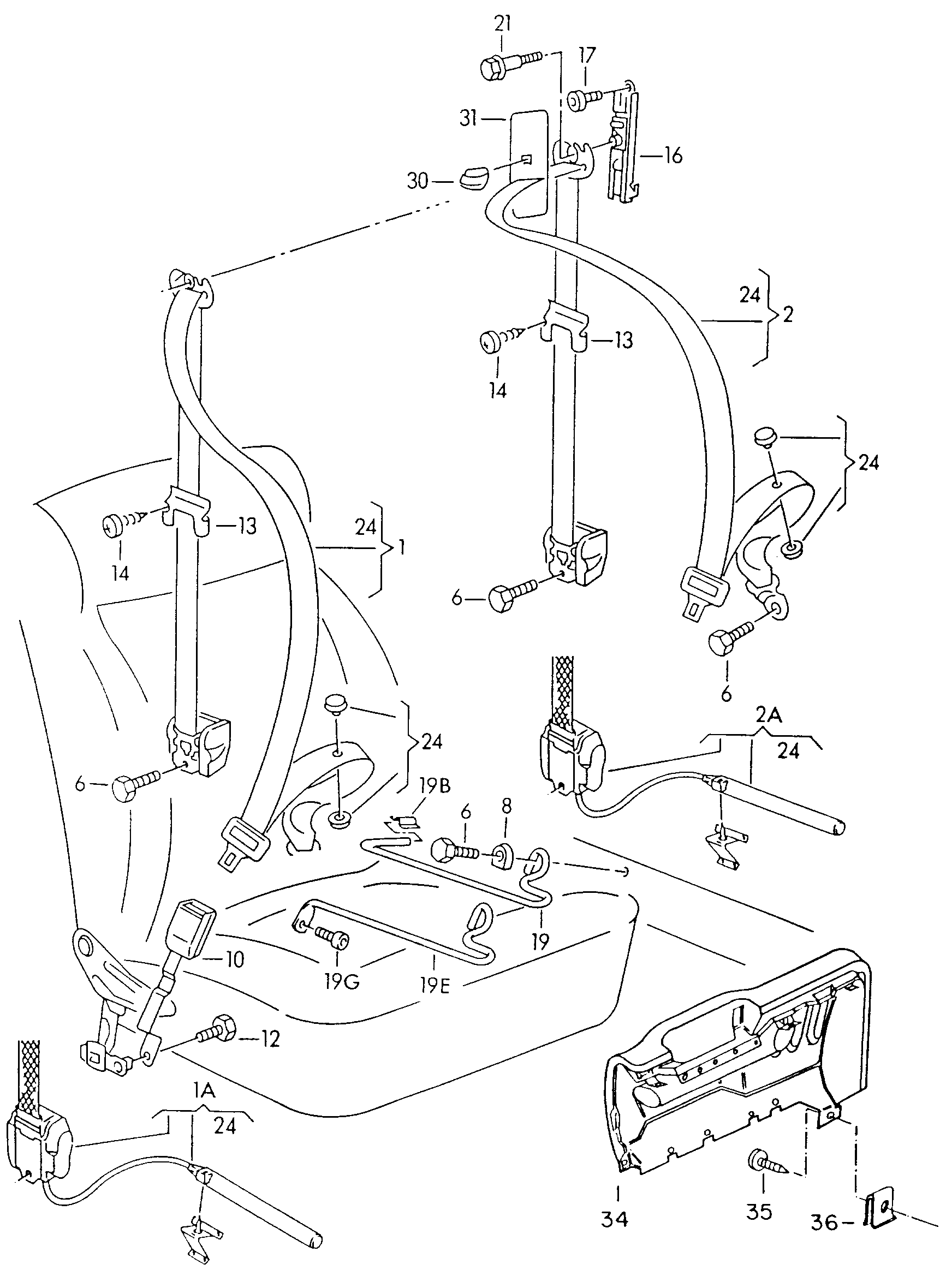

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1HM 857 706 B 41
	Satin black	1HM 857 706 A B 41
	Satin black	1HM 857 755 C 0 1C
	Satin black	1H1 857 755 0 1C
	Satin black	1H0 857 755 0 1C
	satin black/fire red	1HM 857 755 F CN
	Satin black	1HM 857 755 B 0 1C
	satin black/fire red	1J0 857 722 F CN
	Satin black	1H3 857 705 E B 41
	Black	1HM 880 890 A 35
	Satin black	1HM 857 705 A B 41
	beaver	1HM 880 890 Q 05
	Satin black	1HM 857 705 F B 41
	Three-point safety belt Knee padding F 1 H-R-012 659>> front "USA" front	—
	Satin black	1HM 857 705 F B 41
	Satin black	1HM 857 705 B 41
	Satin black	1HM 857 705 K B 41
	beaver	1H1 857 147 T 21
	Satin black	1HM 857 705 L B 41
	Satin black	1H1 857 147 B 41
	Satin black	1H3 857 705 B B 41
	Satin black	1HM 857 755 D 0 1C
	Satin black	1HM 857 705 H B 41
	beaver	1H1 857 882 Q 05
	Satin black	1HM 857 705 H B 41
	Black	1H1 857 882 A 35
	Satin black	1HM 857 705 J B 41
	beaver	1H1 857 881 A Q 05
	Satin black	1H4 857 705 E B 41
	Black	1H1 857 881 A A 35
	Satin black	1HM 857 706 F B 41
	Satin black	1HM 857 706 F B 41
	beaver	1H1 857 881 Q 05
	Satin black	1HM 857 706 M B 41
	Black	1H1 857 881 A 35
	Satin black	1HM 857 706 G B 41
	soul (black)	443 857 847 B 4 PK
	Satin black	1HM 857 706 G B 41
	Satin black	1HM 857 756 E 0 1C
	Satin black	1HM 857 706 N B 41
	Satin black	1HM 857 756 D 0 1C
	Satin black	1HM 857 706 K B 41
	Satin black	1HM 857 756 C 0 1C
	Satin black	1HM 857 706 J B 41
	Satin black	1HM 857 756 B 0 1C
	Satin black	1HM 857 706 K B 41
	Satin black	1HM 857 756 0 1C
	Satin black	1HM 857 706 L B 41
-	Actuator F 1 H-T-096 221>> "USA","CDN"	1H1 857 147
-	seat belt extension "USA","CDN"	1J0 857 722
(1)	Three-point safety belt F 1 H-R-012 659>> AUTOLIV "USA","CDN" AUTOLIV	1HM 857 705 F
(1)	three-point seat belt withtravel limiter F >> 1 H-R-012 658 F >> 1 H-R-003 537 AUTOLIV "CDN" AUTOLIV	1H3 857 705 B
(1)	three-point seat belt withtravel limiter IZQ. IZQ.	1H3 857 705 E
(1)	Three-point safety belt F 1 H-S-000 001>>1 H-S-017 313* AUTOLIV AUTOLIV	1HM 857 705 F
(1)	Three-point safety belt F 1 H-S-017 313>>* AUTOSAFETY AUTOSAFETY	1HM 857 705 K
(1)	Three-point safety belt F 1 H-R-012 659>> AUTOLIV "USA","CDN" AUTOLIV	1HM 857 706 F
(1)	Three-point safety belt F >> 1 H-R-012 658 F >> 1 H-R-003 537 REPA "CDN" REPA	1HM 857 706
(10)	Belt latchfor vehicles withthree-point automatic seatbelt with belt tensioner F 1 H-T-313 896>> REPA REPA	1HM 857 756 D
(10)	Belt latch "BR."+ GOLF	1HM 857 756 E
(10)	Belt latch "BR."+ GOLF	1HM 857 755 D
(10)	Belt latch F >> 1 H-R-037 642 F >> 1 H-R-003 537 REPA REPA "CDN" REPA REPA	1HM 857 756
(10)	Belt latchfor models with airbag F 1 H-S-037 643>>F 1 H-S-012 350>>* AUTOLIV "USA","CDN" AUTOLIV	1HM 857 756 B
(10)	Belt latch F 1 H-R-037 643>>F 1 H-R-003 538>> AUOTLIV "CDN" AUOTLIV	1HM 857 756 C
(10)	Belt latch with warningcontact F >> 1 H-P-012 600* REPA "CDN" REPA	1HM 857 755
(10)	Belt latch with warningcontact AUTOLIV "CDN" AUTOLIV	1H1 857 755
(10)	Belt latch with warningcontactfor models with airbag F 1 H-R-037 643>> 1 H-S-000 350*F 1 H-R-037 643>> AUTOLIV AUTOLIV	1HM 857 755 B
(10)	Belt latch with warningcontactfor vehicles withthree-point automatic seatbelt with belt tensioner F 1 H-S-000 351>>*F 1 H-T-313 896>> REPA "USA","CDN" REPA	1HM 857 755 C
(19)	guide arm	1H0 857 826
(1A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous **** "USA","CDN"	1HM 857 706 K
(1A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****F 1 H-T-000 001>>F 1 H-T-000 001>> REPA "USA","CDN" REPA	1HM 857 706 L
(1A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****F 1 H-S-000 351>> 1 H-S-999 000 F 1 H-S-000 001>> 1 H-S-999 000 REPA "USA","CDN" REPA	1HM 857 706 J
(1A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****F 1 H-T-313 896>>	1HM 857 706 K
(2)	Three-point safety belt F 1 H-S-000 001>> 1 H-S-017 312 AUTOLIV AUTOLIV	1HM 857 706 F
(2)	Three-point safety belt F >> 1 H-R-012 658 F >> 1 H-R-003 537 REPA "CDN" REPA	1HM 857 706 A
(2)	three-point seat belt withtravel limiter F 1 H-S-017 313>>* AUTOSAFETY AUTOSAFETY	1HM 857 706 N
(2)	three-point seat belt withtravel limiter F 1 H-S-017 313>>* AUTOSAFETY AUTOSAFETY	1HM 857 705 L
(2)	three-point seat belt withtravel limiter F 1 H-S-000 001>>1 H-S-017 313* AUTOLIV AUTOLIV	1HM 857 706 G
(2)	three-point seat belt withtravel limiter F 1 H-R-012 659>> 1 H-S-000 350 F 1 H-R-012 659>> AUTOLIV "USA""CDN" AUTOLIV	1HM 857 706 G
(2)	Three-point safety belt F 1 H-S-017 313>>* AUTOSAFETY AUTOSAFETY	1HM 857 706 M
(2)	three-point seat belt withtravel limiter F >> 1 H-R-012 658 F >> 1 H-R-003 537	1H4 857 705 E
(2A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****F 1 H-S-000 351>>F 1 H-S-000 001>> REPA "USA","CDN" REPA	1HM 857 705 J
(2A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****F 1 H-T-313 896>>	1HM 857 705 H
(2A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous **** REPA "USA","CDN" REPA	1HM 857 705 H
(34)	Knee padding F 1 H-R-037 643>> 1 H-T-106 783* "USA","CDN"	1H1 857 882
(34)	Glove compartment Knee padding F 1 H-T-106 784>>*	1HM 880 890
(34)	Knee padding F 1 H-R-037 643>> "USA","CDN"+TDI	1H1 857 881 A
1	Three-point safety belt F >> 1 H-R-003 537 F >> 1 H-R-012 658 REPA "CDN" REPA	1HM 857 705
10	Belt latch AUTOLIV AUTOLIV	1H0 857 755
12	Hexagon bolt 7/16"X 25 7/16"X 25	111 857 799
13	Seat belt guide	1H0 857 817 A
14	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
16	seat belt heightadjuster	1H0 857 819
17	Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20	N 014 779 1
19	guide arm	1H0 857 825
2	Three-point safety belt F >> 1 H-R-012 658 F >> 1 H-R-003 537 REPA "CDN" REPA	1HM 857 705 A
21	Locating bolt 7/16"X 22 7/16"X 22	1H0 857 846
24	knob	443 857 847 B
2B	Mount.block for belt tensioner	1H0 858 891
30	see illustration: 867-065 867-065	—
31	see illustration: 867-065 867-065	—
34	Knee padding F 1 H-R-037 643>> "USA","CDN"	1H1 857 881
35	fillister hd. bolt F 1 H-R-037 643>> M 4 X 15 "USA","CDN" M 4 X 15	N 904 484 02
36	Clip F 1 H-R-037 643>> 1 H-T-106 783F 1 H-T-106 784>> "USA","CDN"	1H0 858 263
6	Hexagon bolt 7/16"X 25 7/16"X 25	111 857 799
8	Cover cap	1H0 857 741 A
