Which VW part numbers are on the glove compartment stowage compartment diagram for the Mk3 Golf?

This diagram lists 56 OEM part numbers for the Mk3 Golf. The first three are 1H1 857 924 F 31, 1H1 857 101 B 41 and 1H5 857 122 A 35.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Glove compartment stowage compartment — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 57 Primary OEM: 1H1 857 924 F 31, 1H1 857 101 B 41, 1H5 857 122 A 35

Glove compartment stowage compartment for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857020 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 56 OEM part numbers across 57 catalogued positions including 1H1 857 924 F 31, 1H1 857 101 B 41 and 1H5 857 122 A 35. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 56 OEM part numbers across 57 numbered positions.

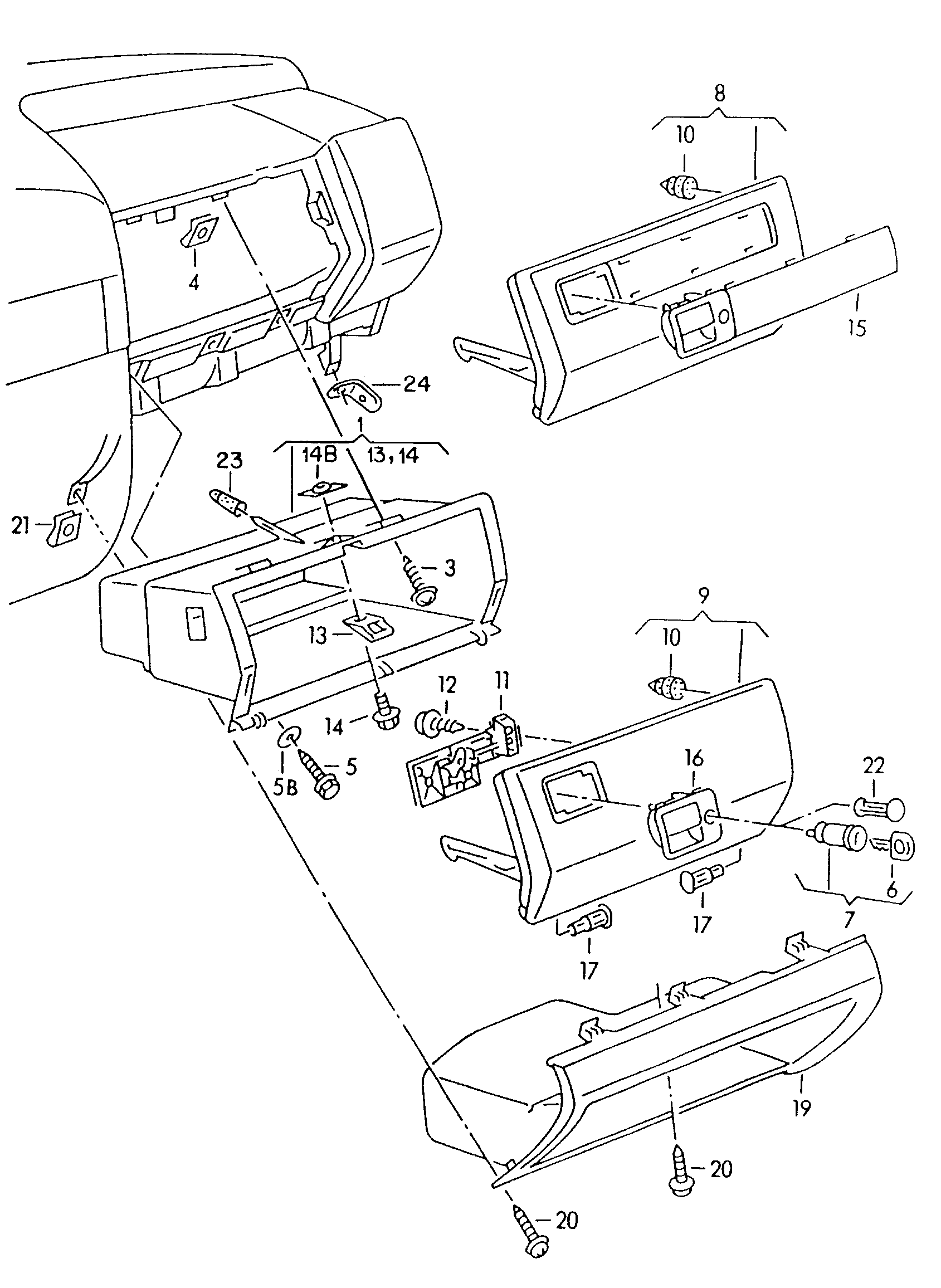

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mauritius blue	1H1 857 924 F 31
	Satin black	1H1 857 101 B 41
	Black	1H5 857 122 A 35
	mauritius blue	1H5 857 122 H 45
	Black	1H6 857 122 A 35
	mauritius blue	1H6 857 122 H 45
	beaver	1H6 857 122 Q 05
	Satin black	1H1 857 131 0 1C
	Satin black	1H0 857 133 B 41
	beaver	1H5 857 147 B S 11
	Satin black	1H5 857 147 B 0 1C
	beaver	1H6 857 147 S 11
	Satin black	1H6 857 147 0 1C
	Satin black	1HM 857 924 B 41
	beaver	1HM 857 924 T 21
	Satin black	1HM 857 924 A B 41
	beaver	1HM 857 924 A T 21
	Satin black	1H1 857 924 B 41
	beaver	1H1 857 924 T 21
	Satin black	1H1 857 924 A B 41
	mauritius blue	1H1 857 924 A F 31
	beaver	1H1 857 924 A T 21
	Satin black	357 858 133 0 1C
	Black	1HM 880 890 A 35
	beaver	1HM 880 890 Q 05
-	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 02
-	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 03
(14)	fillister hd. bolt shorten to: M 4 X 2015 MM M 4 X 2015 MM	N 902 412 03
(15)	Actuator Glove compartment lid F >> 1 H-R-025 320 F >> 1 H-R-000 680 "USA","CDN"+JETTAJETTA	1H5 857 147 B
(19)	Glove compartment Knee padding	1HM 880 890
(19)	Stowage compartment	1HM 857 924
(19)	Stowage compartment air condit.	1H1 857 924 A
(19)	Stowage compartment air condit.	1HM 857 924 A
(5)	Hexagon bolt M 5 X 20 M 5 X 20	N 010 264 4
(9)	Glove compartment lidfor padded dashboard also use:F 1 H-R-025 322>>F 1 H-R-000 686>> 1 H 6 857 147(01 C) GOLF"USA","CDN"+JETTAJETTA 1 H 6 857 147(01 C)	1H6 857 122
1	Glove compartment	1H1 857 101
10	Bungs 7 X 2 X 10,7 7 X 2 X 10,7	N 905 814 01
11	catch	1H1 857 131
12	oval head panel screw 3,9 X 16 3,9 X 16	N 903 494 02
13	sealing bearing	1H0 857 133
14	oval head panel screw 3,9 X 16 3,9 X 16	N 903 494 02
16	Actuator F 1 H-R-025 322>> 1 H-R-037 642 F 1 H-R-000 686>> GOLF"USA","CDN"+JETTAJETTA	1H6 857 147
17	Hinge pin	867 857 169
19	Stowage compartment	1H1 857 924
20	fillister hd. bolt shorten to: M 4 X 2015 MM M 4 X 2015 MM	N 902 412 03
21	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 03
22	Cover cap	357 858 133
23	Grommet	357 858 507 B
24	Bracket	191 805 217 A
3	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
4	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 03
5	Hexagon bolt M 5 X 18 M 5 X 18	N 010 296 2
5B	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 16
6	see illustration: 837-000 837-000	—
7	Lock cylinders F >> 1 H-R-037 642 F 1 H-T-106 784>> "USA","CDN""USA","CDN"	1H0 857 113
7	Lock cylinders	1H0 857 113
8	Glove compartment lidfor padded dashboard F >> 1 H-R-025 321 F >> 1 H-R-000 685 "USA","CDN"+JETTAJETTA	1H5 857 122

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 32 Dash panel / centre console
Factory subgroup: 857020
