Dashboarddashboard fittings — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 44 Primary OEM: 1H6 857 059 B 0 1C, 1HM 857 003 H A 35, 1HM 857 003 H Q 05

Dashboarddashboard fittings for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 39 OEM part numbers across 44 catalogued positions including 1H6 857 059 B 0 1C, 1HM 857 003 H A 35 and 1HM 857 003 H Q 05. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 39 OEM part numbers across 44 numbered positions.

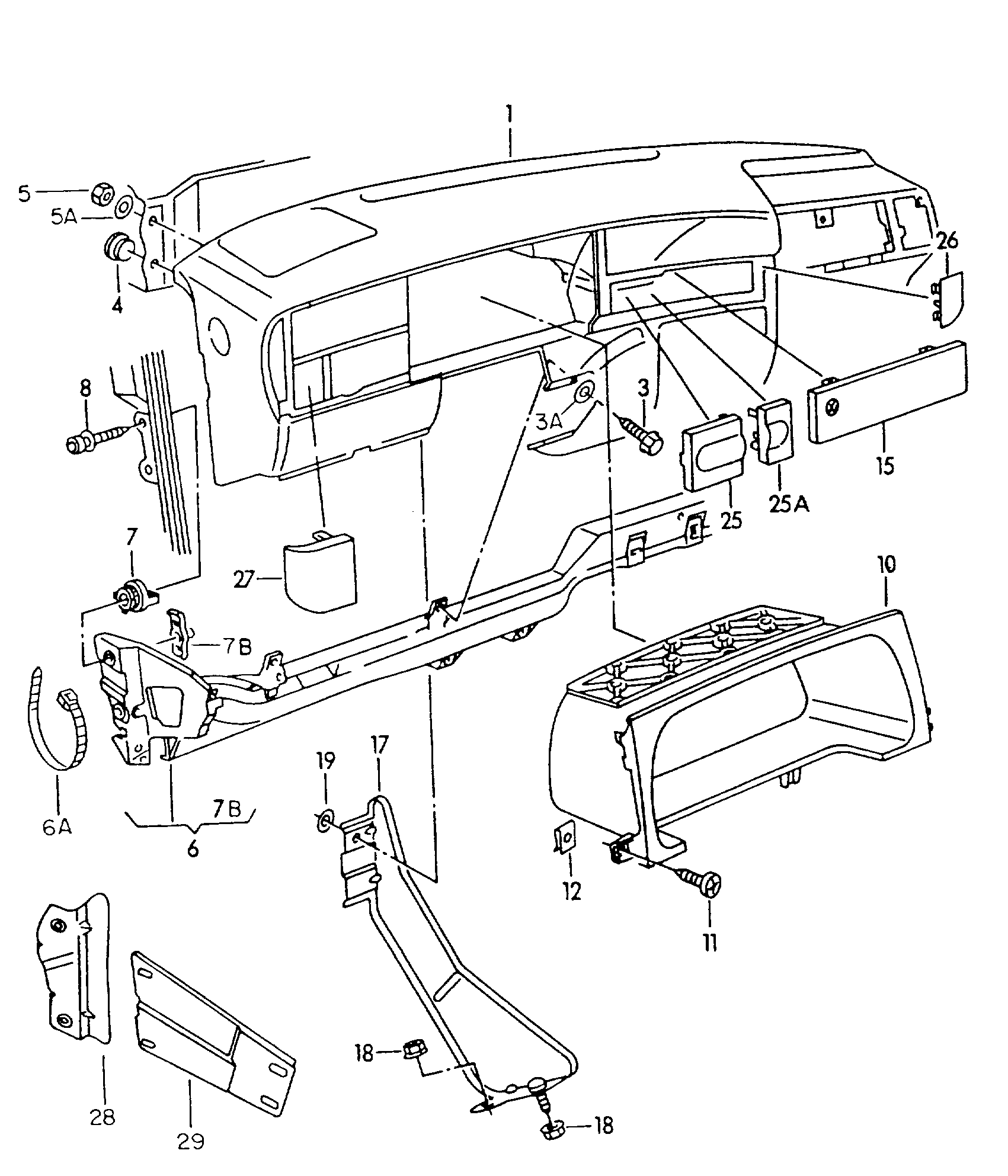

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H6 857 059 B 0 1C
	Black	1HM 857 003 H A 35
	beaver	1HM 857 003 H Q 05
	Black	1HM 857 003 F A 35
	beaver	1HM 857 003 F Q 05
	Satin black	1H0 857 231 A 0 1C
	dashboarddashboard fittings F 1 H-R-025 322>>F 1 H-R-000 686>> GOLF"USA","CDN"+JETTAJETTA	—
	Black	1HM 857 003 M A 35
	beaver	1HM 857 003 M Q 05
	Black	1HM 857 003 A A 35
	mauritius blue	1HM 857 003 A H 45
	beaver	1HM 857 003 A Q 05
(1)	Dash panel, padded also use: 1 H 1 857 101(B 41)1 H 5 857 122(A 35)1 H 1 819 705(01 C)1 H 1 819 706 A(01 C) 1 H 1 857 101(B 41)1 H 5 857 122(A 35)1 H 1 819 705(01 C)1 H 1 819 706 A(01 C)	1HM 857 003 M
(1)	Dash panel, padded	1HM 857 003 F
(1)	Dash panel, paddedfor models with airbag	1HM 857 003 H
(17)	Supportfor models with airbag "USA","CDN"	1HM 858 017 B
(20)	Seal F 1 H-R-015 960>>*	1H0 819 090 B
(3)	Hexagon bolt M 5 X 20 M 5 X 20	N 010 264 4
(6)	Cross member for dash panel F 1 H-S-068 074>> also use: 1 H 0 972 559 A "USA","CDN" 1 H 0 972 559 A	1H1 857 011 Q
(6)	Cross member for dash panelfor models with airbag "USA","CDN"	1HM 857 011 E
1	Dash panel, padded	1HM 857 003 A
10	Trim F 1 H-R-025 322>>F 1 H-R-000 686>> "USA","CDN"	1H6 857 059 B
11	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
12	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 03
15	trim for radio aperture	1H0 857 231 A
17	Support	1H1 858 017
18	Hexagon collar nut M 6 M 6	N 901 752 05
19	Sealing plate F 1 H-P-040 325>>F 1 H-P-001 350>> "USA","CDN"	803 955 637
20	Seal "USA","CDN"	1H0 819 090 B
25	see illustration: 819-030 819-030	—
25A	see illustration: 819-030 819-030	—
26	see illustration: 819-030 819-030	—
27	see illustration: 819-030 819-030	—
28	Securing bracket	1H0 858 311 A
29	Support "USA","CDN"	1HM 858 315 B
3	Hexagon bolt M 5 X 18 M 5 X 18	N 010 296 2
3A	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 16
4	Bungs 12 X 1 X 11 12 X 1 X 11	N 020 025 1
5	Hexagon nut M 6 M 6	N 011 006 24
5A	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 20
7	adjustment part	1H0 857 049
7B	Threaded plate	1H0 857 047
8	Socket head bolt with hexagonsocket head (combination) M 8 X 50 M 8 X 50	N 905 509 01
L(6)	Cross member for dash panel F >> 1 H-S-068 073 "USA","CDN"	1H1 857 011 L
