Dashboarddashboard fittings — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 44 Primary OEM: 1H5 857 059 B 0 1C, 1H0 857 231 A 0 1C, 1H5 858 082 0 1C

Dashboarddashboard fittings for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857005 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 43 OEM part numbers across 44 catalogued positions including 1H5 857 059 B 0 1C, 1H0 857 231 A 0 1C and 1H5 858 082 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 43 OEM part numbers across 44 numbered positions.

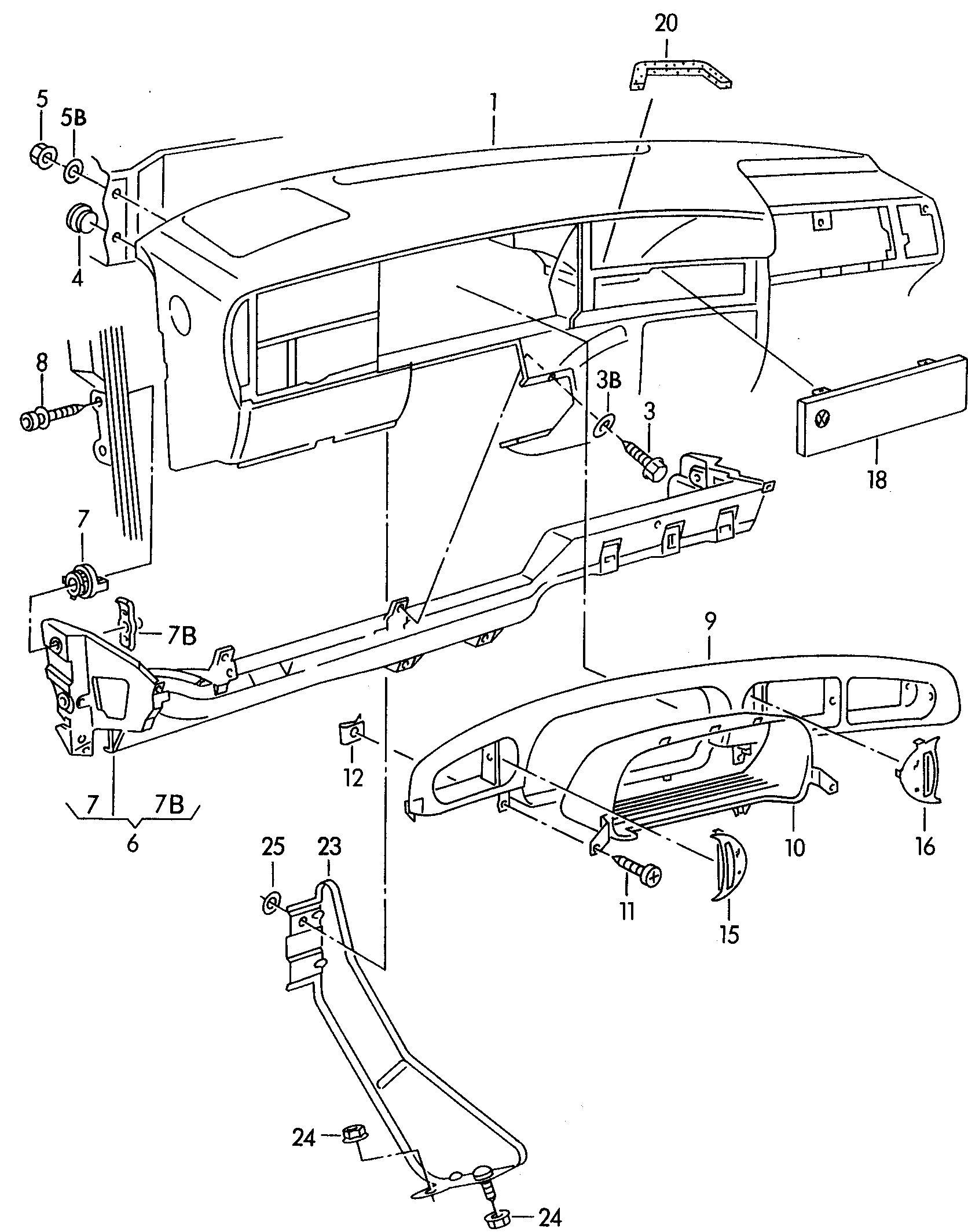

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H5 857 059 B 0 1C
	Satin black	1H0 857 231 A 0 1C
	Satin black	1H5 858 082 0 1C
	dashboarddashboard fittings F >> 1 H-R-025 321 F >> 1 H-R-000 685 "USA","CDN"+JETTAJETTA	—
	Satin black	1H5 858 066 0 1C
	Satin black	1H5 858 081 0 1C
	Satin black	1H5 858 065 0 1C
	Satin black	1H5 857 061 B 0 1C
	mauritius blue	1HM 857 003 H 45
	beaver	1HM 857 003 Q 05
	Black	1HM 857 003 M A 35
	Black	1H5 857 003 M A 35
	mauritius blue	1H5 857 003 M H 45
	beaver	1H5 857 003 M Q 05
-	Securing bracket	1H0 858 311 A
-	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 16
-	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
-	Support	1HM 858 315 B
(1)	Dash panel, padded also use: 1 H 1 857 101(B 41)1 H 5 857 122(A 35)1 H 1 819 705(01 C)1 H 1 819 706 A(01 C) 1 H 1 857 101(B 41)1 H 5 857 122(A 35)1 H 1 819 705(01 C)1 H 1 819 706 A(01 C)	1HM 857 003 M
(1)	Dash panel, padded "USA","CDN"	1H5 857 003 M
(15)	trim with symbol	1H5 858 081
(16)	trim with symbol	1H5 858 082
(3)	Hexagon bolt M 5 X 20 M 5 X 20	N 010 264 4
(6)	Cross member for dash panelfor models with airbag "USA","CDN"	1HM 857 011 E
(6)	Cross member for dash panel also use: >>1 H-P-9990001 H 0 972 559 >>1 H-P-9990001 H 0 972 559	1H1 857 011 Q
1	Dash panel, padded	1HM 857 003
10	Trim F >> 1 H-R-025 321 F >> 1 H-R-000 685 "USA","CDN"	1H5 857 061 B
11	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
12	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 03
15	trim with symbol illumination	1H5 858 065
16	trim with symbol illumination	1H5 858 066
18	trim for radio aperture	1H0 857 231 A
20	Seal shorten to: 165 MM 165 MM	1H0 819 090 A
20	Seal shorten to: 165 MM 165 MM	1H0 819 090 B
23	Support	1H1 858 017
24	Hexagon collar nut M 6 M 6	N 901 752 05
25	Sealing plate F 1 H-P-040 325>>F 1 H-P-001 350>> "USA","CDN"	803 955 637
3	Hexagon bolt M 5 X 18 M 5 X 18	N 010 296 2
4	Bungs 12 X 1 X 11 12 X 1 X 11	N 020 025 1
5	Hexagon nut M 6 M 6	N 011 006 24
7	adjustment part	1H0 857 049
7B	Threaded plate	1H0 857 047
8	Socket head bolt with hexagonsocket head (combination) M 8 X 50 M 8 X 50	N 905 509 01
9	Trimdashboard	1H5 857 059 B
