Ashtray — Mk3 Golf Dash Panel Centre Console (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Dashboard. dashboard fittings

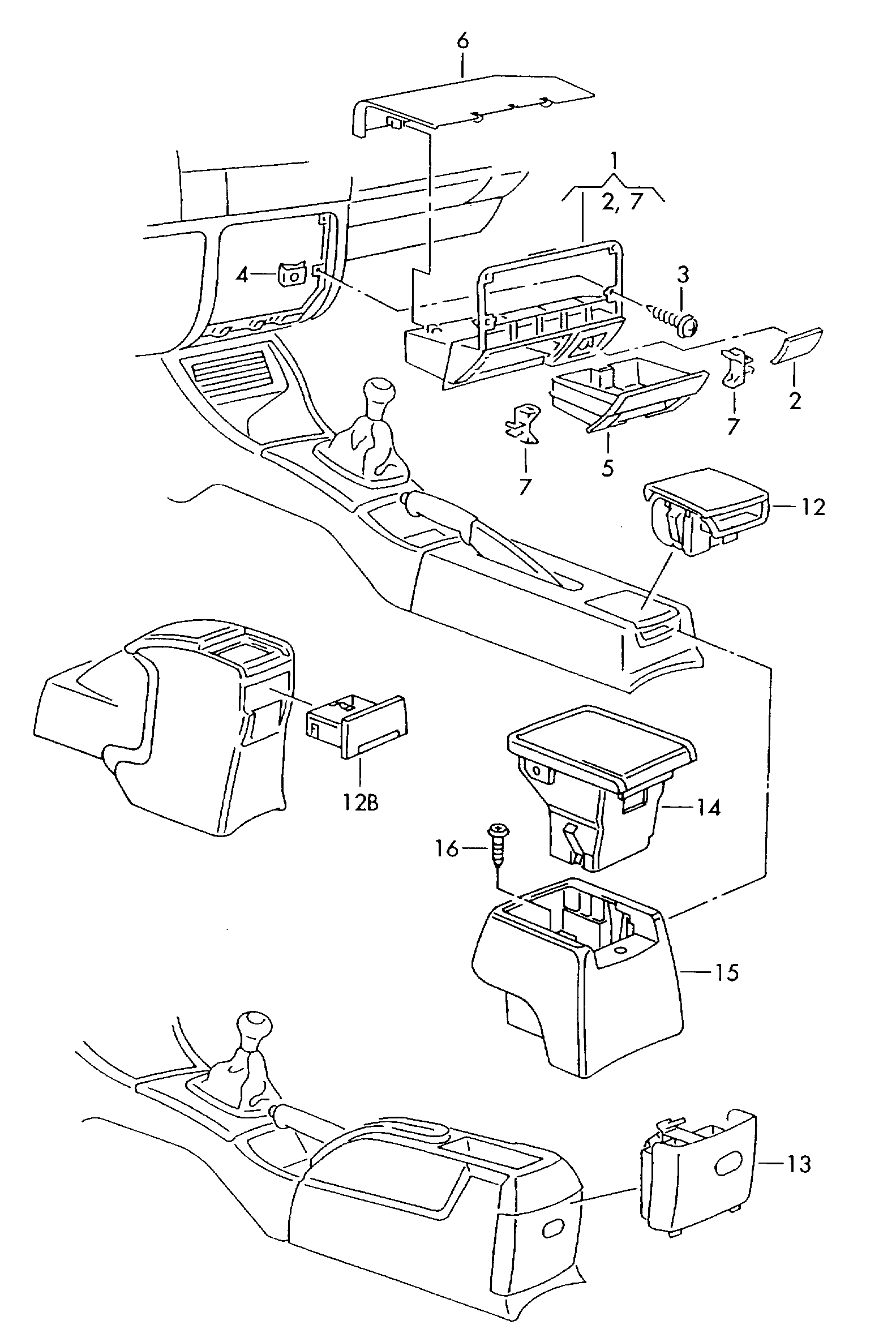

Ashtray for the Volkswagen Golf Mk3 (1997): factory exploded diagram 857030 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 39 OEM part numbers including 1H0 857 962 B D HP, 1H1 857 305 B 0 1C and 1H0 857 962 C 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 39 OEM part numbers across 39 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black/pebble | 1H0 857 962 B D HP | |
| Satin black | 1H1 857 305 B 0 1C | |
| Satin black | 1H0 857 962 C 0 1C | |
| beaver | 1H0 857 962 E T 21 | |
| Satin black | 1H0 857 962 E B 41 | |
| Satin black | 1H1 857 309 0 1C | |
| Satin black | 1H2 857 309 0 1C | |
| beaver | 1H0 857 962 A T 21 | |
| Satin black | 1H0 857 962 A B 41 | |
| Satin black | 1H0 857 962 B 41 | |
| Satin black/beaver | 1H0 857 962 C MA | |
| Satin black | 1H1 857 305 D 0 1C | |
| Satin black | 1H2 857 305 B 0 1C | |
| Satin black | 1H0 857 975 B 41 | |
| Satin black | 1H1 858 981 0 1C | |
| Satin black | 1H1 858 981 A 0 1C | |
| Satin black | 1H1 858 981 B 0 1C | |
| Satin black | 1H2 858 981 0 1C | |
| (1) | switch bracket withhousing for ashtray with: 1 H 1 858 981 B(01 C) 1 H 1 858 981 B(01 C) | 1H1 857 305 D |
| (1) | switch bracket withhousing for ashtray | 1H2 857 305 B |
| (12 | ashtray | 1H0 857 962 B |
| (13) | ashtray | 1H0 857 962 A |
| (2) | Cover cap with symbolfor diagnostic plug GHE,TJG GHE,TJG | 1H1 858 981 B |
| (2) | Cover capfor diagnostic plug | 1H2 858 981 |
| (2) | Cover capfor diagnostic plug TJG TJG | 1H1 858 981 A |
| (5) | ashtray | 1H2 857 309 |
| (6) | Cover radio aperture: | 1H2 972 905 |
| 1 | switch bracket withhousing for ashtray GHE GHE | 1H1 857 305 B |
| 12 | ashtray | 1H0 857 962 |
| 13 | ashtray | 1H0 857 962 E |
| 14 | ashtray TAXI | 1H0 857 962 C |
| 15 | ashtray guide TAXI | 1H0 857 975 |
| 16 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 902 412 03 |
| 2 | Cover capfor diagnostic plug GHE GHE | 1H1 858 981 |
| 3 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 902 412 03 |
| 4 | Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5 | N 904 190 02 |
| 5 | ashtray | 1H1 857 309 |
| 6 | Cover radio aperture: | 1H0 972 905 |
| 7 | Glide piece | 1H0 857 327 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 32 Dash panel / centre console
- Factory subgroup
- 857030
