Centre console gear shift cover — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Floor covering

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 84 Primary OEM: 1H0 863 209 T 21, 1HM 863 315 B S X8, 1HM 863 319 B T 21

Centre console gear shift cover for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 863060 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 82 OEM part numbers across 84 catalogued positions including 1H0 863 209 T 21, 1HM 863 315 B S X8 and 1HM 863 319 B T 21. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 82 OEM part numbers across 84 numbered positions.

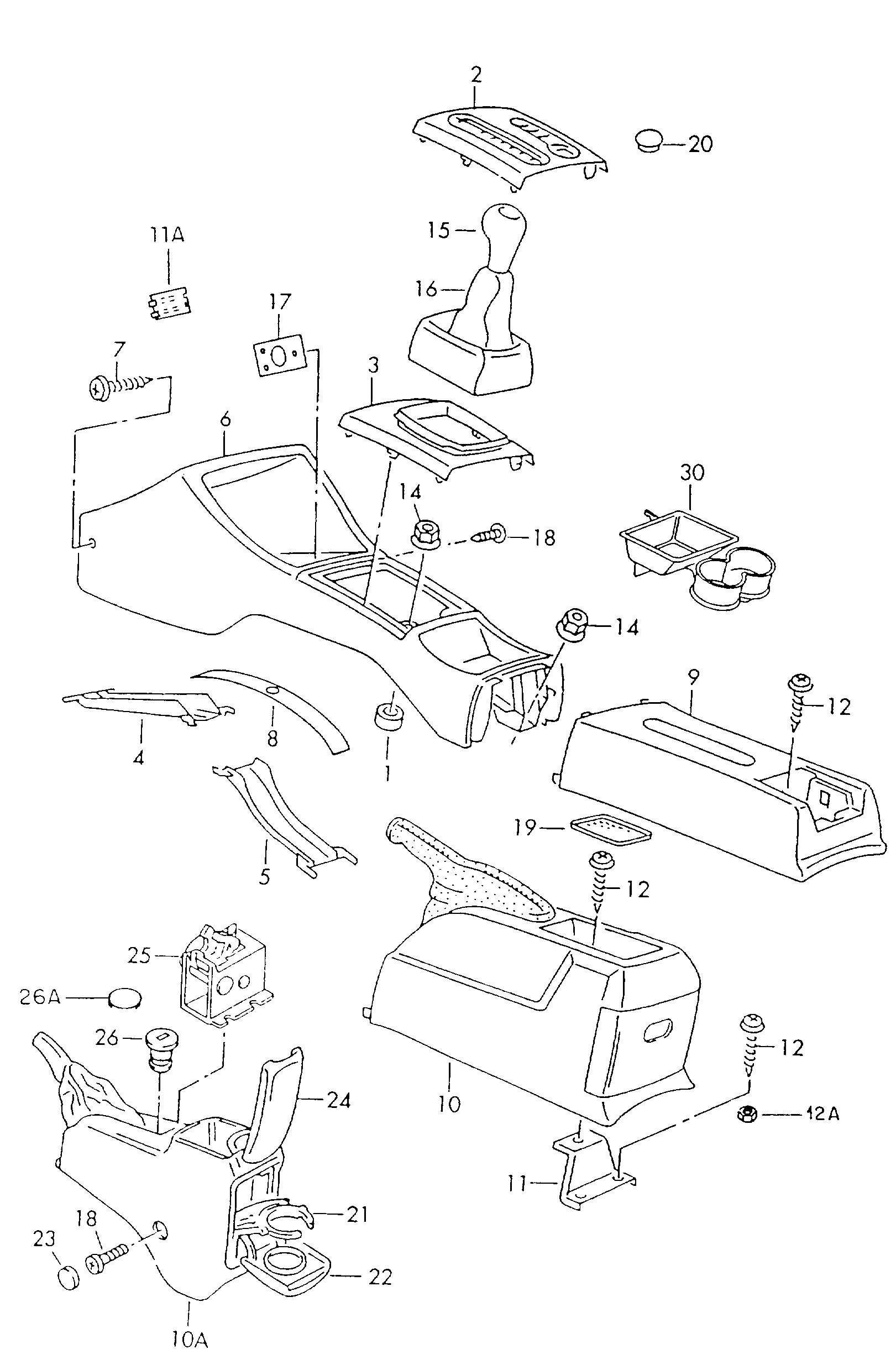

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	beaver	1H0 863 209 T 21
	beaver	1HM 863 315 B S X8
	beaver	1HM 863 319 B T 21
	beaver	1H1 863 209 T 21
	beaver	1H0 863 319 A T 21
	Satin black	1H0 863 319 A B 41
	beaver	1H0 863 319 A T 21
	Satin black	1HM 863 319 B B 41
	Satin black	1H0 863 319 A B 41
	mauritius blue	1H0 863 319 A F 31
	beaver	1H0 863 319 A T 21
	Satin black	1HM 863 319 B 41
	beaver	1HM 863 319 T 21
	Satin black	1HM 863 315 S X7
	Satin black	1H1 863 209 C B 41
	mauritius blue	1H1 863 209 C F 31
	beaver	1H1 863 209 C T 21
	Satin black	1HM 864 571 B 41
	mauritius blue	1H0 863 216 F 31
	mauritius blue	1H0 863 209 F 31
	kenya black	1HM 863 315 B S X7
	Satin black	1H0 863 209 B 41
	mauritius blue	1HM 863 209 F 31
	beaver	1HM 863 209 T 21
	beaver	3A0 864 137 T 21
	Black	3A0 864 137 4 FB
	beaver	1HM 862 543 T 21
	mauritius blue "CDN"	1HM 863 243 A F 31
	beaver	1HM 863 243 A T 21
	beaver	1HM 864 571 T 21
	mauritius blue	1HM 863 243 A F 31
	beaver	1HM 863 243 A T 21
	mauritius blue	1H1 863 209 F 31
	Satin black	1HM 863 243 B B 41
	beaver	1HM 863 243 B T 21
	Satin black	1HM 862 543 B 41
	mauritius blue	1H1 863 243 F 31
	beaver	1H1 863 243 T 21
	Satin black	1HM 862 533 D B 41
	Satin black	1HM 863 243 B B 41
	Satin black	1H0 863 328 A B 41
	Satin black	1H0 863 277 A B 41
	Satin black	1H0 863 319 A B 41
	mauritius blue	1H0 863 319 A F 31
(10A)	Centre consolevinylfor models with airbag "USA","CDN"	1HM 863 315
(10A)	Centre console GOLF CITY	1HM 863 315 B
(10A)	Centre console "USA"	1HM 863 319
(11)	Securing bracketfor models with airbag "USA","CDN"	1HM 864 139
(12)	fillister hd. bolt M 4 X 15 M 4 X 15	N 904 484 01
(12)	fillister hd. bolt M 4 X 15 M 4 X 15	N 904 484 02
(2)	Trim for gear selector automatic	1H1 863 209 C
(3)	Trim for gear selector manualgearboxdiesel eng.	1H0 863 209
(3)	Trim for gear selector manualgearbox	1HM 863 209
(4)	guide for cover strip F 1 H-P-012 601>>* automatic	1H0 863 221 A
(6)	Centre console F >> 1 H-R-012 658 "USA","CDN"	1HM 863 243 A
(6)	Centre console F 1 H-P-006 273>>*1 H-P-999 000	1HM 863 243 A
(6)	Centre consolefor models with airbag F 1 H-R-012 659>> "USA","CDN"	1HM 863 243 B
1	spacer sleeve	357 864 133 A
10	Centre console with stow. comp "CDN"	1H0 863 319 A
10	Centre console with stow. comp	1H0 863 319 A
10	Centre console with stow. compfor models with airbag "USA"	1H0 863 319 A
10A	Centre consolefor models with airbag	1HM 863 319 B
11	Securing bracket	1H0 864 139
12	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
14	Hexagon collar nut 5 5	171 201 969
15/16	see illustration: 711-022711-024 711-022711-024	—
17	Retaining plate Centre console	1H0 863 350
18	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
19	Insert piece ELASTOMER ELASTOMER	1H0 863 328 A
2	Trim for gear selectorfor vehicles with rotary knob automatic	1H1 863 209
20	No longer available	—
21	Drinks holderfor models with airbag "USA","CDN"	1HM 862 533 D
22	Lid for cupholder "USA","CDN"	1HM 862 543
23	Cover cap for bolt "USA","CDN"	3A0 864 137
24	cover for center console "USA","CDN"	1HM 864 571
25	catch "USA","CDN"	1HM 864 579
26	Lock cylinders "USA","CDN"	1H0 857 113
3	Trim for gear selector manualgearbox	1H0 863 216
4	Guide F >> 1 H-P-012 600* automatic	1HM 864 221
5	guide for cover strip automatic	1H0 864 223
6	Centre console F >> 1 H-P-006 272*	1H1 863 243
6	Centre console F >> 1 H-P-006 272*	1HM 863 243 B
7	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
8	cover strips automatic	1H0 863 277 A
