Centre console gear shift cover — Mk3 Golf Dash Panel Centre Console (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Floor covering

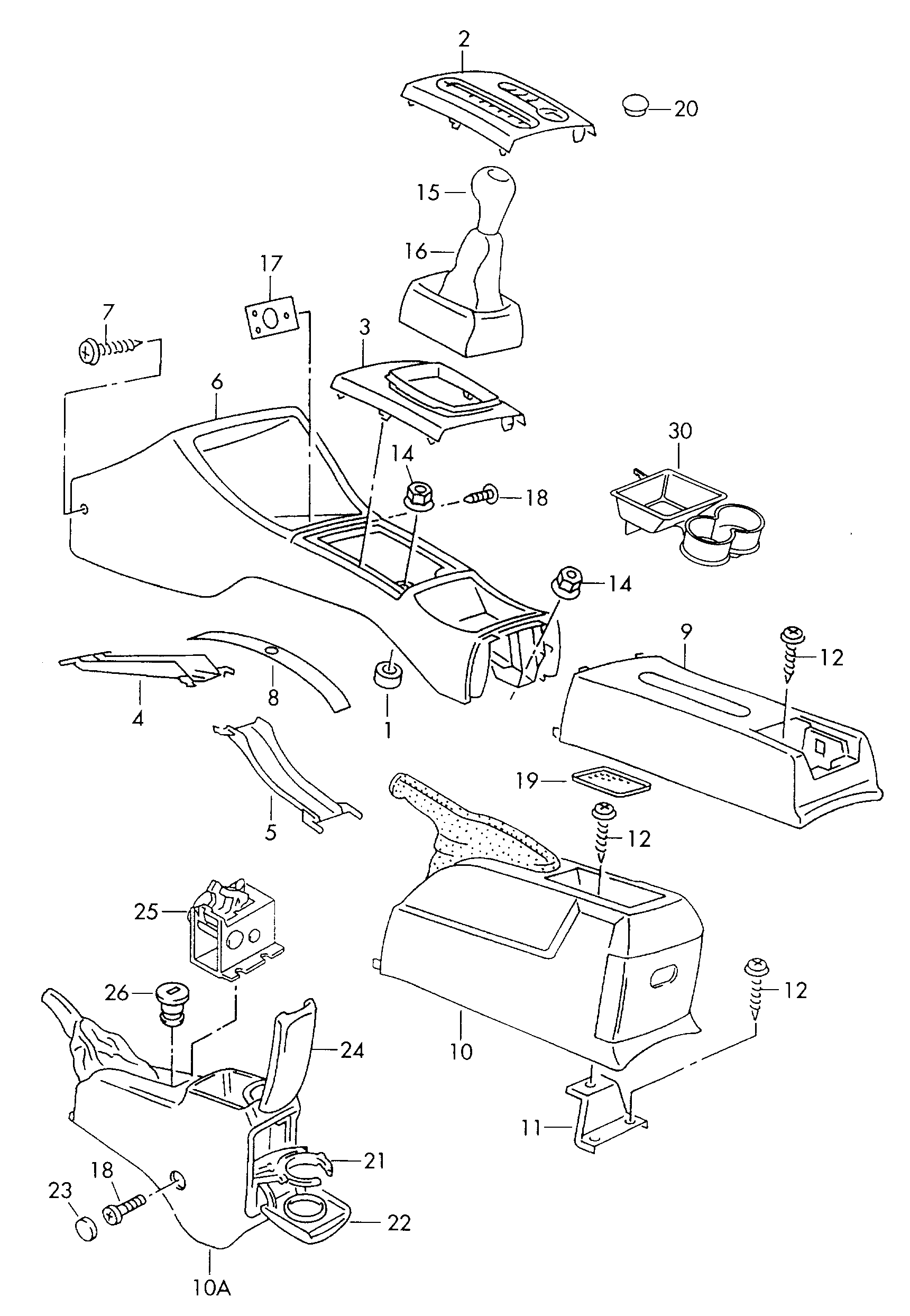

Centre console gear shift cover for the Volkswagen Golf Mk3 (1997): factory exploded diagram 863060 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 75 OEM part numbers across 76 catalogued positions including 1H0 863 209 C 82, 1H2 863 209 C T 21 and 1H2 863 209 C Y 01. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 75 OEM part numbers across 76 numbered positions.
| № | Description | Part number |
|---|---|---|
| soft black -89,89 -89,89 | 1H0 863 209 C 82 | |
| beaver | 1H2 863 209 C T 21 | |
| pebble grey -39,72 -39,72 | 1H2 863 209 C Y 01 | |
| Satin black | 1H0 863 216 B 41 | |
| soft black -89,99 -89,99 | 1H0 863 216 C 82 | |
| beaver | 1H0 863 216 T 21 | |
| pebble grey -39,72 -39,72 | 1H0 863 216 Y 01 | |
| Satin black | 1H0 863 209 B 41 | |
| beaver | 1H0 863 209 T 21 | |
| Satin black | 1H1 863 243 B 41 | |
| soft black -89,99 -89,99 | 1H1 863 243 C 82 | |
| beaver | 1H1 863 243 T 21 | |
| pebble grey -39,72 -39,72 | 1H1 863 243 Y 01 | |
| Satin black | 1H2 863 243 B 41 | |
| beaver | 1H2 863 243 T 21 | |
| pebble grey -39,72 -39,72 | 1H2 863 243 Y 01 | |
| Satin black | 1H1 863 243 A B 41 | |
| Satin black | 1H1 863 243 B B 41 | |
| Satin black | 1HM 863 243 B B 41 | |
| Satin black | 1H0 863 277 A B 41 | |
| Satin black | 1E0 863 319 B 41 | |
| beaver | 1H0 863 319 T 21 | |
| pebble grey -39,72 -39,72 | 1H0 863 319 Y 01 | |
| Satin black | 1H0 863 319 B 41 | |
| Satin black | 1H0 863 319 A B 41 | |
| beaver 196 196 | 1H0 863 319 A T 21 | |
| Satin black | 1H0 863 319 E B 41 | |
| beaver | 1H0 863 319 E T 21 | |
| Satin black | 1H0 863 319 D B 41 | |
| soft black -22,89 -22,89 | 1H0 863 319 D C 82 | |
| beaver | 1H0 863 319 D T 21 | |
| Satin black | 1H0 863 319 F C HT | |
| soft black -89,99 -89,99 | 1H0 863 319 F C 82 | |
| beaver | 1H0 863 319 F E BN | |
| Satin black | 1H0 863 328 A B 41 | |
| Satin black | 1HM 862 533 E B 41 | |
| Satin black | 1H1 863 209 C B 41 | |
| soft black -89,99 -89,99 | 1H1 863 209 C C 82 | |
| beaver | 1H1 863 209 C T 21 | |
| pebble grey -39,72 -39,72 | 1H1 863 209 C Y 01 | |
| Satin black | 1H2 863 209 C B 41 | |
| (10) | Centre console with stow. comp Brake lever | 1H0 863 319 F |
| (10) | Centre console with stow. comp Brake lever | 1H0 863 319 D |
| (10) | Centre console with stow. comp Brake lever | 1H0 863 319 E |
| (16) | Damping manualgearbox | 1H0 864 219 |
| (2) | Trim for gear selector automatic | 1H2 863 209 C |
| (3) | Trim for gear selector manualgearbox | 1H0 863 209 |
| (4) | guide for cover strip Automatic+police | 357 864 221 A |
| (6) | Centre console police | 1H1 863 243 B |
| (6) | Centre console "J.." | 1HM 863 243 B |
| (6) | Centre console | 1H2 863 243 |
| (6) | Centre console TAXI | 1H1 863 243 A |
| 1 | spacer sleeve | 357 864 133 A |
| 1 | spacer sleeve | 357 864 133 |
| 10 | Centre console with stow. comp | 1H0 863 319 A |
| 11 | Securing bracket | 1H0 864 139 |
| 12 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 902 412 03 |
| 14 | Hexagon collar nut 5 5 | 171 201 969 |
| 15/16 | see illustration: 711-20/-22/-24 711-20/-22/-24 | — |
| 17 | Retaining plate | 1H0 863 350 |
| 18 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 902 412 03 |
| 19 | Insert piece | 1H0 863 328 A |
| 2 | Trim for gear selector automatic | 1H1 863 209 C |
| 3 | Trim for gear selector manualgearbox Petr. engine | 1H0 863 216 |
| 30 | Drinks holderfor models with airbag "J.." | 1HM 862 533 E |
| 4 | guide for cover strip automatic | 1H0 863 221 A |
| 4 | guide for cover strip automatic | 1H0 864 221 |
| 5 | guide for cover strip automatic | 1H0 864 223 |
| 6 | Centre console | 1H1 863 243 |
| 7 | Oval hexagon socket head bolt ST 4,8 X 16-C ST 4,8 X 16-C | N 906 487 02 |
| 7 | Hexagon socket head panel bolt 4,8 X 16 4,8 X 16 | N 907 750 01 |
| 7 | oval head panel screw B 4,8 X 13 B 4,8 X 13 | N 013 968 1 |
| 8 | cover strips automatic | 1H0 863 277 A |
| 9 | Centre console | 1E0 863 319 |
| 9 | Centre console | 1H0 863 319 |
| 9 | Centre console | 1H0 863 319 |
