Cigarette lighter bulb carrier bulb — Mk3 Golf Dash Panel Centre Console (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Distance sensor. Combi-instrument

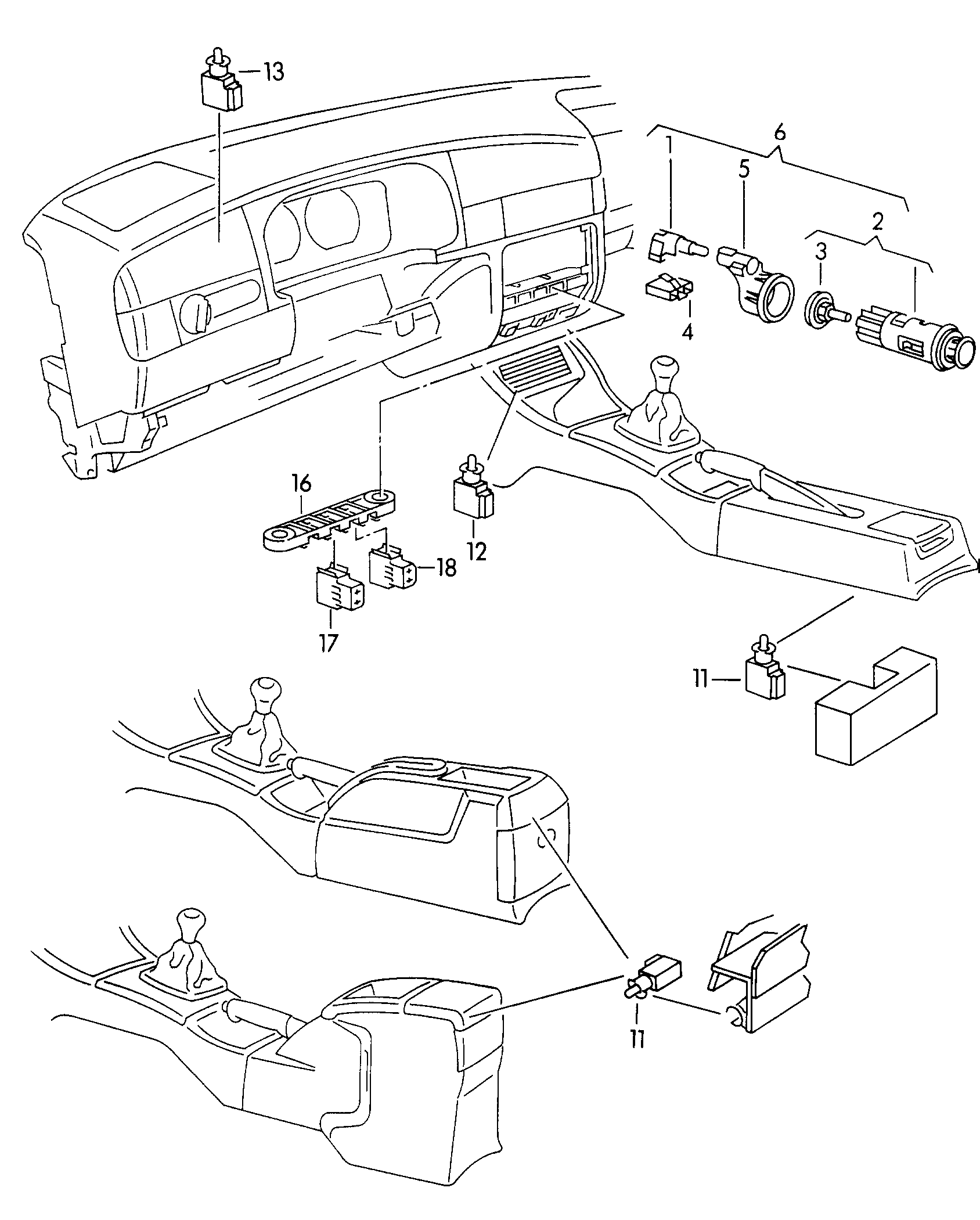

Cigarette lighter bulb carrier bulb for the Volkswagen Golf Mk3 (1997): factory exploded diagram 919090 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 21 OEM part numbers across 23 catalogued positions including 1J0 919 307 9 B9, 357 919 243 D 8 5H and 191 919 321. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 21 OEM part numbers across 23 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1J0 919 307 9 B9 | |
| crystal clear | 357 919 243 D 8 5H | |
| crystal clear | 357 919 243 D 8 5H | |
| - | Flat contact housing | 191 919 321 |
| - | Socket SCHOELLER SCHOELLER | 1J0 919 309 |
| - | Cigarette lighter SCHOELLER SCHOELLER | 1J0 919 307 |
| - | Spring pin | 1E0 919 341 B |
| (1) | Bulb carrier with bulb SUELEC SUELEC | 3A0 919 243 |
| (1) | Bulb carrier with bulb also use: 1 H 0 919 343 1 H 0 919 343 | 6K0 919 243 |
| (13) | bulbillumination forfresh air controls see illustration: W 5/1,2 W 12 V 1,2 W 819-040 W 5/1,2 W 12 V 1,2 W 819-040 | N 017 751 2 |
| (16) | Diagnostics infinite bus | 1H0 972 559 A |
| (5) | retaining sleeve forcigarette lighter SUELEC SUELEC | 3A0 919 343 A |
| 1 | Bulb carrier with bulb SCHOELLER SCHOELLER | 191 919 243 D |
| 11 | Bulb carrier with bulb | 357 919 243 D |
| 12 | Bulb carrier with bulb | 357 919 243 D |
| 13 | illumination forfresh air controls see illustration: 819-030 NR.15 A 819-030 NR.15 A | — |
| 2 | Cigarette lighter | 191 919 305 B |
| 3 | glow element forcigarette lighter | 803 919 317 |
| 4 | Flat contact housing Cigarette lighter | 191 919 321 |
| 5 | retaining sleeve forcigarette lighter also use: 6 K 0 919 243 6 K 0 919 243 | 1H0 919 343 |
| 5 | retaining sleeve forcigarette lighter SCHOELLER SCHOELLER | 191 919 343 C |
| 6 | No longer available replacement: 1 J 0 919 307(9 B 9)1 J 0 919 3091 E 0 919 341 B 191 919 321 1 J 0 919 307(9 B 9)1 J 0 919 3091 E 0 919 341 B 191 919 321 | — |
| 6 | Installation kit forcigarette lighter | 191 998 250 A |
