Combi instrumentdistance sensor — Mk3 Golf Dash Panel Centre Console (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Distance sensor. Combi-instrument

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 103 Primary OEM: N 012 234 5, 1H0 919 850 X, 1H0 919 900 X

Combi instrumentdistance sensor for the Volkswagen Golf Mk3 (1997): factory exploded diagram 919000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 99 OEM part numbers across 103 catalogued positions including N 012 234 5, 1H0 919 850 X and 1H0 919 900 X. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 99 OEM part numbers across 103 numbered positions.

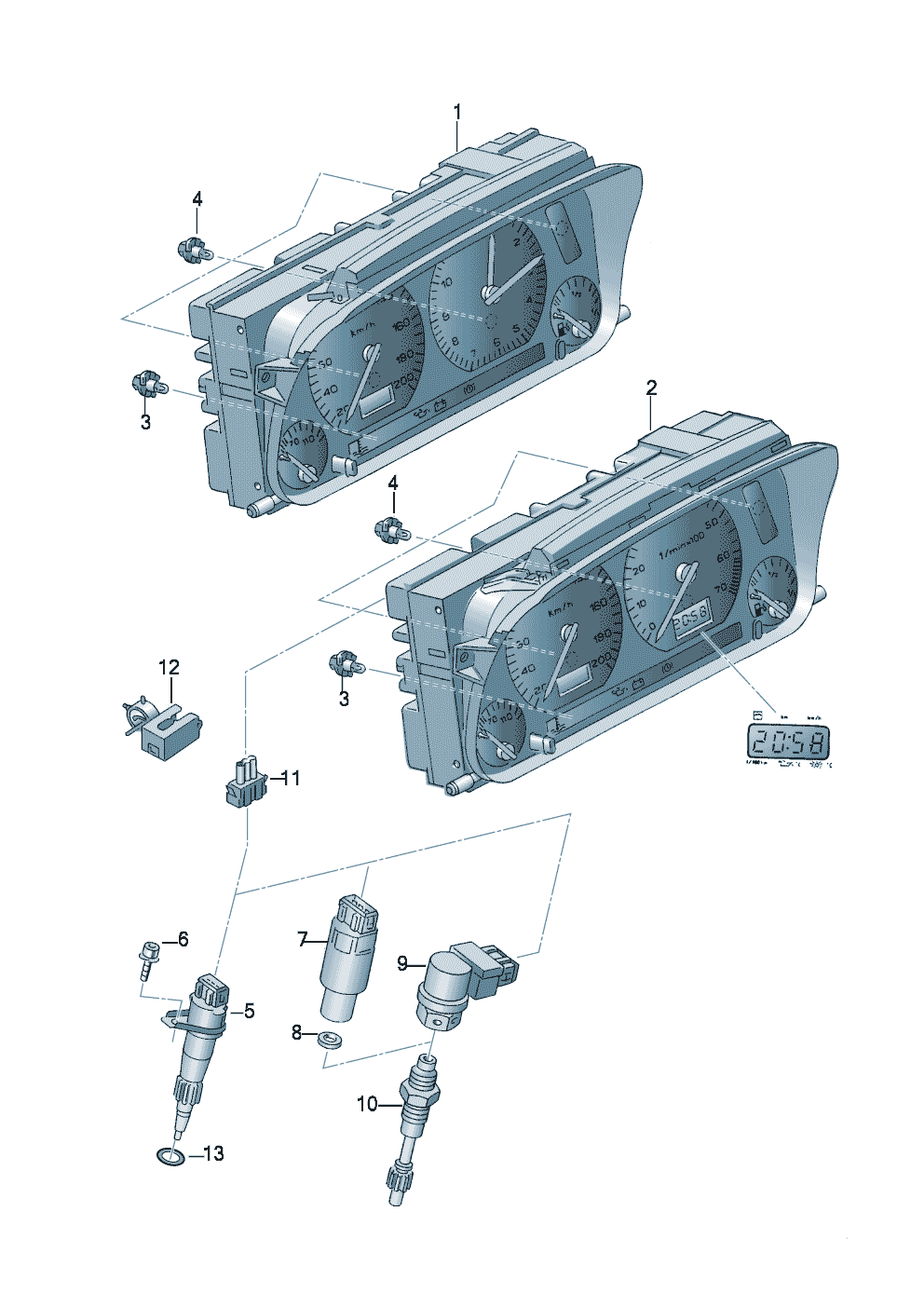

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Combi-instrumentfor models with revolutioncounter Petr. engine	—
	Combi-instrumentfor models with analogue clock diesel eng.	—
	Combi-instrumentfor models with revolutioncounter diesel eng.	—
-	Spring washer 7 7	N 012 234 5
(1)	Combi-instrument 220 KM/H ecomatic 220 KM/H	1H0 919 850 X
(1)	Combi-instrument 120 MPH ecomatic 120 MPH	1H0 919 900 X
(2)	Combi-instrument dial colour: 120 MPH AEX:4-speedman. gearbox 120 MPH	1H0 919 913 BX
(2)	Combi-instrument 200 KM/H "AUS","ROK"/Automatic+AHU 200 KM/H	1HM 919 861 LX
(2)	Combi-instrument 240 KM/H "J..":ABF 240 KM/H	1H0 919 880 TX
(2)	Combi-instrument dial colour: 240 KMH "J..":ABF 240 KMH	1H0 919 881 QX
(2)	Combi-instrument 240 KM/H "J.."/Automatic+AAA 240 KM/H	1H0 919 880 SX
(2)	Combi-instrument 240 KM/H "AUS":AAA 240 KM/H	1HM 919 880 F
(2)	Combi-instrument 240 KM/H "AUS"/Automatic+AAA 240 KM/H	1HM 919 880 G
(2)	Combi-instrument dial colour: 240 KMH "J.."/Automatic+AAA 240 KMH	1H0 919 881 SX
(2)	Combi-instrument 240 KM/H "AUS","ROK":AAA 240 KM/H	1HM 919 881 EX
(2)	Combi-instrument 240 KM/H "AUS","ROK"/Automatic+AAA 240 KM/H	1HM 919 881 FX
(2)	Combi-instrument 200 KM/H "AUS"/Automatic+1 Z,AHU 200 KM/H AHU	1HM 919 860 E
(2)	Combi-instrument 200 KM/H AEX:4-speedman. gearbox 200 KM/H	1H0 919 863 RX
(2)	Combi-instrument dial colour: 200 KM/H AEX:4-speedman. gearbox 200 KM/H	1H0 919 865 X
(2)	Combi-instrument 220 KM/H "AUS":AGG 220 KM/H	1HM 919 860 B
(2)	Combi-instrument 220 KM/H "AUS"/Automatic+AGG 220 KM/H	1HM 919 860 G
(2)	Combi-instrument 120 MPH AEX:4-speedman. gearbox 120 MPH	1H0 919 912 MX
(2)	Combi-instrument dial colour: 220 KM/H "J..":AGG,ADZ,AKR 220 KM/H ADZAKR	1H0 919 861 JX
(2)	Combi-instrument 140 MPH Automatic+ADZ,AGG,AKR 140 MPH AGGAKR	1H0 919 930 BX
(2)	Combi-instrument 200 KM/H "AUS":1 Z,AHU 200 KM/H AHU	1HM 919 860 D
(2)	Combi-instrument 200 KM/H AEY 200 KM/H AEY	1H0 919 861 EX
(2)	Combi-instrument dial colour: 220 KM/H 1 Z,AFN,AHU,ALE 220 KM/H 1ZAFNAHUALE	1H0 919 881 PX
(2)	Combi-instrument 220 KM/H AEP,ADZ,AGG,ACC,AKR 220 KM/H ACCADZAEPAGGAKR	1H0 919 880 AX
(2)	Combi-instrument 140 MPH 1 Z,AFN,AHU,ALE 140 MPH 1ZAFNAHUALE	1H0 919 930 RX
(2)	Combi-instrument dial colour: 200 KM/H 1 Y 200 KM/H 1Y	1H0 919 865 BX
(2)	Combi-instrument dial colour: 140 MPH ADZ,AGG,AKR 140 MPH ADZAGGAKR	1H0 919 930 PX
(2)	Combi-instrument 160 MPH AAA 160 MPH AAA	1H0 919 930 GX
(2)	Combi-instrument dial colour: 220 KM/H AFT,AKS 220 KM/H AFTAKS	1H0 919 880 LX
(2)	Combi-instrument dial colour: 140 MPH 1 Z,AFN,AHU,ALE 140 MPH 1ZAFNAHUALE	1H0 919 930 SX
(2)	Combi-instrument 160 MPH ABF 160 MPH ABF	1H0 919 930 FX
(2)	Combi-instrument 220 KM/H 1 Z,AFN,AHU,ALE 220 KM/H 1ZAFNAHUALE	1H0 919 864 QX
(2)	Combi-instrument 220 KM/H "AUS","ROK":ADZ,AGG 220 KM/H AGG	1HM 919 861 HX
(2)	Combi-instrument 220 KM/H Automatic+AAM,AEP,AGG,ADZ,AKR 220 KM/H ADZAEPAGGAKR	1H0 919 860 DX
(2)	Combi-instrument dial colour: 220 KM/H Automatic+AFT,AKS 220 KM/H AKS	1H0 919 881 RX
(2)	Combi-instrument dial colour: 220 KM/H "J.."/Automatic+AGG,ADZ,AKR 220 KM/H ADZAKR	1H0 919 861 HX
(2)	Combi-instrument 200 KM/H AAZ 200 KM/H AAZ	1H0 919 860 FX
(2)	Combi-instrument 220 KM/H "J..":ADZ,AGG,AKR 220 KM/H AGGAKR	1H0 919 860 KX
(2)	Combi-instrument 220 KM/H 1 Z,AFN,AHU,ALE 220 KM/H 1ZAFNAHUALE	1H0 919 881 NX
(2)	Combi-instrument dial colour: 220 KMH Automatic+ADZ,AGG,AKR 220 KMH AGGAKR	1H0 919 880 MX
(2)	Combi-instrument dial colour: 140 MPH Automatic+AAM,ADZ,AGG,AKR 140 MPH ADZAGGAKR	1H0 919 912 EX
(2)	Combi-instrument 140 MPH ADZ,AGG,AKR 140 MPH ADZAGGAKR	1H0 919 930 AX
(2)	Combi-instrument dial colour: 220 KM/H ACC,ADZ,AGG,AKR 220 KM/H ACCADZAGGAKR	1H0 919 880 HX
(2)	Combi-instrument dial colour: 220 KMH Automatic+AFT,AKS 220 KMH AKS	1H0 919 865 DX
(2)	Combi-instrument dial colour: 200 KM/H AEY 200 KM/H AEY	1H0 919 863 PX
(2)	Combi-instrument dial colour: 220 KM/H 1 Z,AFN,AHU,ALE 220 KM/H 1ZAFNAHUALE	1H0 919 864 RX
(2)	Combi-instrument 240 KM/H ABF 240 KM/H ABF	1H0 919 880 NX
(2)	Combi-instrument 140 MPH AFT,AKS 140 MPH AFTAKS	1H0 919 910 BX
(2)	Combi-instrument 140 MPH 1 Z,AFN,AHU,ALE 140 MPH 1ZAFNAHUALE	1H0 919 913 X
(2)	Combi-instrument 120 MPH AAZ 120 MPH AAZ	1H0 919 910 FX
(2)	Combi-instrument dial colour: 140 MPH Automatic+AGG,ADZ,AKR 140 MPH ADZAKR	1H0 919 931 BX
(2)	Combi-instrument 220 KM/H AAM,ACC,AGG,ADZ,AEP,AKR 220 KM/H AAMACCADZAEPAGGAKR	1H0 919 860 CX
(2)	Combi-instrument dial colour: 220 KM/H AAM,ADZ,ACC,AGG,AKR 220 KM/H AAMACCADZAGGAKR	1H0 919 861 BX
(2)	Combi-instrument "AUS","ROK":1 Z,AHU AHU	1HM 919 860 T
(2)	Combi-instrument dial colour: 160 MPH ABF 160 MPH ABF	1H0 919 930 TX
(2)	Combi-instrument 140 MPH Automatic+AFT,AKS 140 MPH AKS	1H0 919 910 QX
(2)	Combi-instrument 220 KM/H Automatic+AEP,ADZ,AGG,AKR 220 KM/H ADZAGGAKR	1H0 919 880 BX
(2)	Combi-instrument 220 KM/H Automatic+AFT,AKS 220 KM/H AKS	1H0 919 880 GX
(2)	Combi-instrument 220 KM/H "AUS","ROK"/Automatic+ADZ,AGG 220 KM/H AGG	1HM 919 861 JX
(2)	Combi-instrument 200 KM/H 1 Y 200 KM/H 1Y	1H0 919 864 KX
(2)	Combi-instrument 220 KM/H AFT,AKS 220 KM/H AFTAKS	1H0 919 880 X
(2)	Combi-instrument dial colour: 220 KM/H AEE,AEX 220 KM/H AEEAEX	1H0 919 865 AX
(2)	Combi-instrument dial colour: 140 MPH Automatic+AFT,AKS 140 MPH AKS	1H0 919 931 AX
(2)	Combi-instrument dial colour: 140 MPH AFT,AKS 140 MPH AFTAKS	1H0 919 931 X
(2)	Combi-instrument 120 MPH AEY 120 MPH AEY	1H0 919 910 RX
(2)	Combi-instrument 240 KM/H AAA 240 KM/H AAA	1H0 919 880 QX
(2)	Combi-instrument 220 KM/H AFT,AKS 220 KM/H AFTAKS	1H0 919 860 BX
(2)	Combi-instrument dial colour: 240 KM/H AAA 240 KM/H AAA	1H0 919 880 RX
(2)	Combi-instrument 120 MPH 1 Y 120 MPH 1Y	1H0 919 912 PX
(2)	Combi-instrument dial colour: 140 MPH 1 Z,AFN,AHU,ALE 140 MPH 1ZAFNAHUALE	1H0 919 913 AX
(2)	Combi-instrument dial colour: 120 MPH 1 Y 120 MPH 1Y	1H0 919 913 DX
(2)	Combi-instrument dial colour: 120 MPH AEY 120 MPH AEY	1H0 919 912 GX
(2)	Combi-instrument dial colour: 120 MPH AAZ 120 MPH AAZ	1H0 919 912 JX
(2)	Combi-instrument 140 MPH AFT,AKS 140 MPH AFTAKS	1H0 919 930 X
(2)	Combi-instrument dial colour: 220 KM/H AFT,AKS 220 KM/H AFTAKS	1H0 919 861 GX
(2)	Combi-instrument 140 MPH Automatic+AFT,AKS 140 MPH AKS	1H0 919 930 EX
(2)	Combi-instrument dial colour: 240 KM/H ABF 240 KM/H ABF	1H0 919 880 PX
(2)	Combi-instrument dial colour: 200 KM/H AAZ 200 KM/H AAZ	1H0 919 860 TX
(2)	Combi-instrument 220 KM/H "J.."/Automatic+ADZ,AGG,AKR 220 KM/H AGGAKR	1H0 919 860 JX
(2)	Combi-instrument dial colour: 140 MPH AAM,ADZ,AGG,AKR 140 MPH AAMADZAGGAKR	1H0 919 912 DX
(2)	Combi-instrument 220 KM/H Automatic+AFT,AKS 220 KM/H AKS	1H0 919 860 PX
(2)	Combi-instrument 220 KM/H AEE,AEX 220 KM/H AEEAEX	1H0 919 864 JX
(2)	Combi-instrument 140 MPH AEE,AEX 140 MPH AEEAEX	1H0 919 912 NX
(2)	Combi-instrument 140 MPH Automatic+AAM,ADZ,AGG,AKR 140 MPH ADZAGGAKR	1H0 919 910 DX
(2)	Combi-instrument dial colour: 220 KM/H Automatic+AAM,ADZ,AGG,AKR 220 KM/H ADZAGGAKR	1H0 919 861 CX
(2)	Combi-instrument dial colour: 140 MPH AEE,AEX 140 MPH AEEAEX	1H0 919 913 CX
(2)	Combi-instrument 140 MPH AAM,ADZ,AGG,AKR 140 MPH AAMADZAGGAKR	1H0 919 910 CX
(9)	distance sensor AAA,ABF,1 Z,AHU,ALE,AFN 1ZAAAABFAFNAHUALE	191 919 149 D
10	speedometer pinion see illustration: 409-.. AHU,AFN 409-.. AFNAHU	—
11	Flat contact housing	357 972 753
12	retainer, swivelling withcap for seal 24 MM 24 MM	701 957 845
13	O-ring 22 X 2 22 X 2	N 903 541 01
3	bulbfor warning lamps 12 V 1,1 W VDO,TRW 12 V 1,1 W VDO,TRW	4A0 919 040 C
4	bulbfor dashboard lighting 12 V 2 W 12 V 2 W	893 919 040 A
5	distance sensor AAM,ADZ,ADY,AFT,AAZ,AEP,AEY,1 Y,ACC,AEX,AEE,AEK,AGG,AKS,AKR 1YAAMAAZACCADYADZAEEAEKAEPAEXAEYAFTAGGAKRAKS	1H0 919 149 A
6	Hexagon bolt also use: M 7 X 1,25 X 13 SKN 012 234 5 M 7 X 1,25 X 13 SKN 012 234 5	N 900 092 01
6	fillister head bolt (combi.) M 7 X 1,25 X 13 Z 3 M 7 X 1,25 X 13 Z 3	N 090 173 3
7	distance sensor Automatic+AAM,ADZ,ADY,AEP,AGG,AFN,1 Z,AFT,AHU,ALE,AKR,AKS,ALE 1ZADYADZAEPAFNAFTAGGAHUAKRAKSALE	357 919 149
8	seal ring 9,6/16 MM 9,6/16 MM	871 957 825
