Dashboard fittings — Mk3 Golf Dash Panel Centre Console (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Dashboard. dashboard fittings

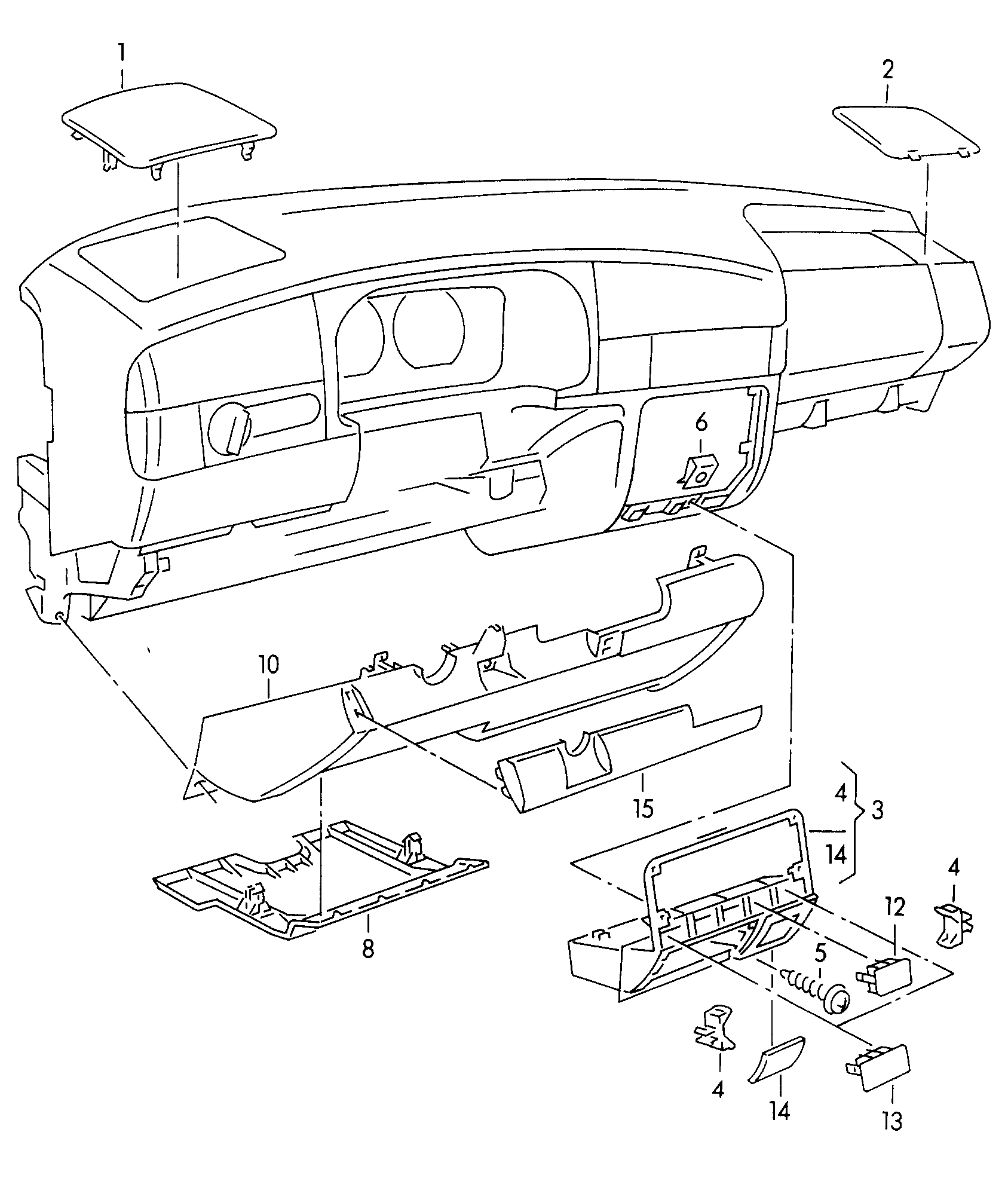

Dashboard fittings for the Volkswagen Golf Mk3 (1997): factory exploded diagram 857010 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 79 OEM part numbers including 1H2 857 210 S 11, 1H1 857 209 S 11 and 1H1 857 209 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 79 OEM part numbers across 79 numbered positions.
| № | Description | Part number |
|---|---|---|
| beaver | 1H2 857 210 S 11 | |
| beaver | 1H1 857 209 S 11 | |
| Satin black | 1H1 857 209 0 1C | |
| flint | 1H1 857 923 Y 01 | |
| Satin black | 1H2 857 924 B 41 | |
| beaver | 1H2 857 924 T 21 | |
| flint | 1H2 857 924 Y 01 | |
| Satin black | 1H0 858 179 0 1C | |
| flint | 1H2 858 183 Y 01 | |
| Satin black | 1H0 858 180 0 1C | |
| beaver | 1H2 858 183 T 21 | |
| Satin black | 1H1 858 981 0 1C | |
| Satin black | 1H2 858 183 B 41 | |
| Satin black | 1H1 858 981 A 0 1C | |
| Satin black | 1H1 858 981 B 0 1C | |
| Satin black | 1H2 858 981 0 1C | |
| Satin black | 1H1 858 183 B 41 | |
| beaver | 1H1 858 183 T 21 | |
| flint | 1H1 858 183 Y 01 | |
| soft black -89,99 'HIGHLINE' -89,99 | 1H1 858 183 C 82 | |
| beaver | 1H1 857 209 A S 11 | |
| Satin black | 1H1 857 209 A 0 1C | |
| beaver | 1H2 857 209 S 11 | |
| Satin black | 1H2 857 209 0 1C | |
| beaver | 1H2 858 184 A T 21 | |
| beaver | 1H1 857 210 S 11 | |
| Satin black | 1H1 857 210 0 1C | |
| Satin black | 1H2 858 184 A B 41 | |
| beaver | 1H1 857 210 A S 11 | |
| Satin black | 1H1 857 210 A 0 1C | |
| Satin black | 1H2 857 210 0 1C | |
| Satin black | 1H1 857 305 B 0 1C | |
| Satin black | 1H1 857 305 D 0 1C | |
| Satin black | 1H2 857 305 B 0 1C | |
| soft black -89,99 'HIGHLINE' -89,99 | 1H2 858 184 C 82 | |
| flint | 1H2 858 184 Y 01 | |
| beaver | 1H2 858 184 T 21 | |
| Satin black | 1H1 857 917 B 41 | |
| beaver | 1H1 857 917 T 21 | |
| flint | 1H1 857 917 Y 01 | |
| Satin black | 1H2 858 184 B 41 | |
| soft black | 1H1 857 917 C 82 | |
| Satin black | 1H2 857 918 B 41 | |
| beaver | 1H2 857 918 T 21 | |
| soft black | 1H2 857 918 C 82 | |
| flint | 1H2 857 918 Y 01 | |
| Satin black | 1H1 857 923 B 41 | |
| beaver | 1H1 857 923 T 21 | |
| soft black | 1H1 857 923 C 82 | |
| (1) | Loudspeaker trim | 1H2 857 209 |
| (10) | Cover Cross member | 1H2 857 924 |
| (14) | Cover cap with symbolfor diagnostic plug GHE,TJG GHE,TJG | 1H1 858 981 B |
| (14) | Cover capfor diagnostic plug | 1H2 858 981 |
| (15) | Trim | 1H1 858 183 |
| (15) | Trim | 1H1 858 183 |
| (15) | Trim | 1H2 858 183 |
| (15) | Trimfor models with choke cable | 1H2 858 184 A |
| (15) | Trim | 1H2 858 184 |
| (15) | Trim | 1H2 858 184 |
| (2) | Loudspeaker trim | 1H2 857 210 |
| (3) | switch bracket withhousing for ashtray with: TJG 1 H 1 858 981 B(01 C) TJG 1 H 1 858 981 B(01 C) | 1H1 857 305 D |
| (3) | switch bracket withhousing for ashtray | 1H2 857 305 B |
| (8) | Coverfor fuse box/relay plate | 1H2 857 918 |
| (8) | Coverfor fuse box/relay plate | 1H2 857 918 |
| 1 | Loudspeaker trim | 1H1 857 209 |
| 1 | Loudspeaker trim use if required: 1 H 1 857 210 A 1 H 1 857 210 A | 1H1 857 209 A |
| 10 | Cover Cross member | 1H1 857 923 |
| 12 | Dummy cover | 1H0 858 179 |
| 13 | Dummy cover | 1H0 858 180 |
| 14 | Cover capfor diagnostic plug TJG TJG | 1H1 858 981 A |
| 14 | Cover capfor diagnostic plug GHE GHE | 1H1 858 981 |
| 2 | Loudspeaker trim | 1H1 857 210 |
| 2 | Loudspeaker trim use if required: 1 H 1 857 209 A 1 H 1 857 209 A | 1H1 857 210 A |
| 3 | switch bracket withhousing for ashtray GHE GHE | 1H1 857 305 B |
| 4 | Glide piece | 1H0 857 327 |
| 5 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 902 412 03 |
| 6 | Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5 | N 904 190 02 |
| 8 | Coverfor fuse box/relay plate | 1H1 857 917 |
| 8 | Coverfor fuse box/relay plate | 1H1 857 917 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 32 Dash panel / centre console
- Factory subgroup
- 857010
Related factory diagrams
Other published dash panel centre console plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the dashboard fittings diagram for the Mk3 Golf?
- This diagram lists 79 OEM part numbers for the Mk3 Golf. The first three are 1H2 857 210 S 11, 1H1 857 209 S 11 and 1H1 857 209 0 1C.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
