Which VW part numbers are on the exterior mirror diagram for the Mk3 Golf?

This diagram lists 74 OEM part numbers for the Mk3 Golf. The first three are 1H0 857 520 A T 21, 1H0 857 520 A B 41 and 1H1 857 577 0 1C.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Exterior mirror — Mk3 Golf Dash Panel Centre Console (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Dashboard. dashboard fittings

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 76 Primary OEM: 1H0 857 520 A T 21, 1H0 857 520 A B 41, 1H1 857 577 0 1C

Exterior mirror for the Volkswagen Golf Mk3 (1997): factory exploded diagram 857040 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 74 OEM part numbers across 76 catalogued positions including 1H0 857 520 A T 21, 1H0 857 520 A B 41 and 1H1 857 577 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 74 OEM part numbers across 76 numbered positions.

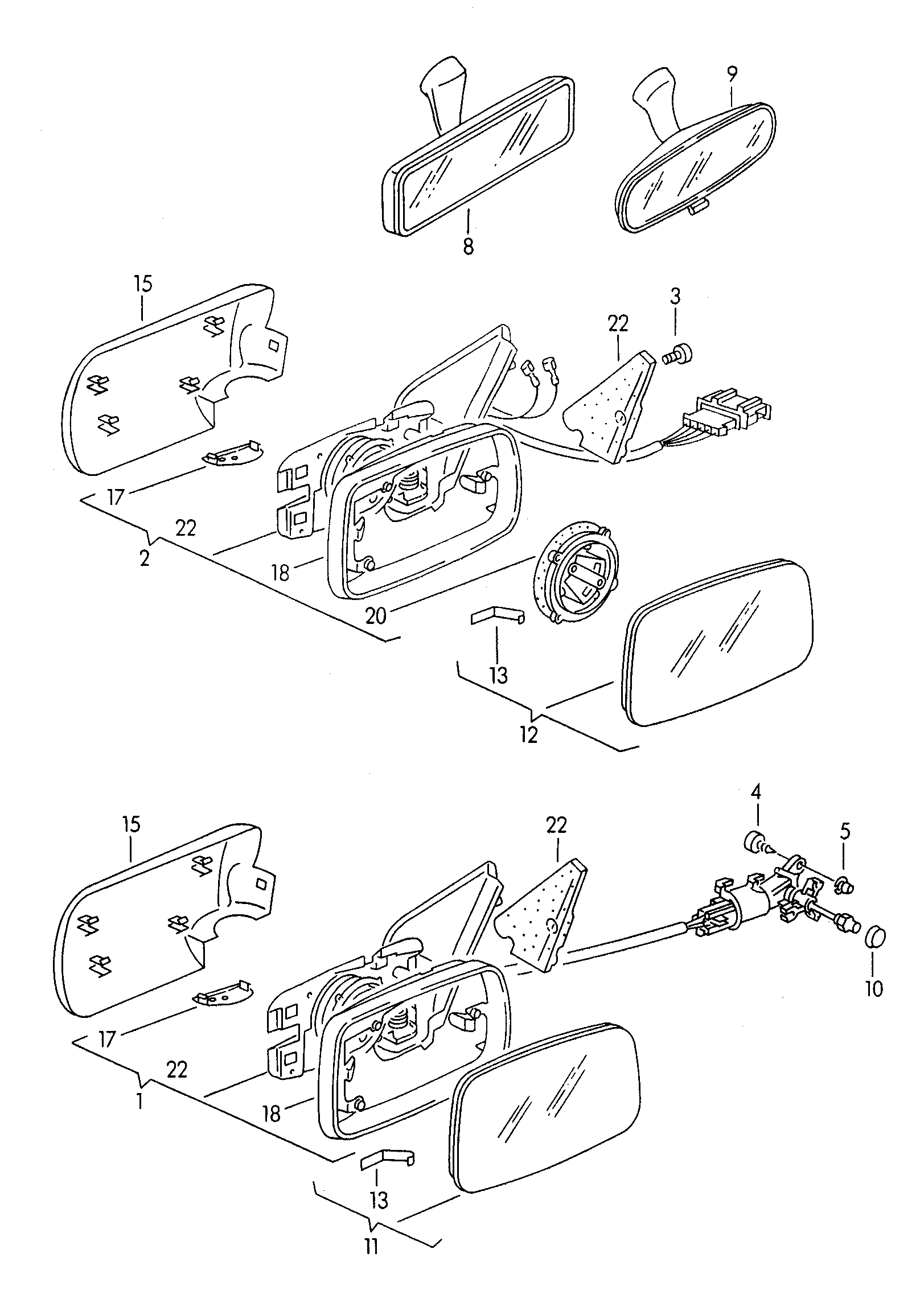

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	beaver	1H0 857 520 A T 21
	Satin black	1H0 857 520 A B 41
	Satin black	1H1 857 577 0 1C
	Satin black	1H2 857 507 0 1C
	Satin black	1H0 857 538 C 0 1C
	Satin black	1H1 857 508 0 1C
	primedif necessary paint in colorof vehicle	1H0 857 538 B G RU
	Satin black	1H2 857 508 0 1C
	Satin black	1H1 857 507 0 1C
	Satin black	1H1 857 507 A 0 1C
	Satin black	1H0 857 537 C 0 1C
	Satin black	1H2 857 507 A 0 1C
	Satin black	1H1 857 578 0 1C
	Satin black	1H1 857 508 A 0 1C
	primedif necessary paint in colorof vehicle	1H0 857 537 B G RU
	Satin black	1H2 857 508 A 0 1C
	Satin black	1H0 858 554 C 0 1C
	Satin black	1H2 857 578 0 1C
	Satin black See photo	1H0 858 553 C 0 1C
	Satin black See photo	1H0 858 553 A 0 1C
	Satin black	6N0 857 511 A 0 1C
	Satin black	1H0 858 554 A 0 1C
	Satin black	1H2 857 577 0 1C
	flint	1H0 857 520 A Y 01
	flint	1H0 857 520 Y 01
-	Mirror with suction footfor driving school vehicles	1H0 857 523
-	countersunk bolt M 3 X 10 M 3 X 10	N 102 998 01
(1)	Exterior mirror housing	1H2 857 508
(1)	Exterior mirror housing	1H2 857 507
(1)	Exterior mirror housing	1H1 857 508
(10)	knob	1H0 857 520
(11)	Mirror glass (convex) withcarrier plate	1H1 857 521 D
(11)	Mirror glass (convex) withcarrier plate "J.."	1H1 857 521 D
(11)	Mirror glass (convex) withcarrier plate	1H1 857 522
(11)	Mirror glass (convex) withcarrier plate "J.."	1H1 857 522
(11)	mirror glass (flat) withplate	1H2 857 522
(11)	mirror glass (aspherical-wide angle) with plate	1H1 857 521 A
(11)	mirror glass (aspherical-wide angle) with plate	1H2 857 522 B
(12)	mirror glass (aspherical-wide angle) with plate For heated and electricadjustable exterior mirrors	1H1 857 521 C
(12)	Mirror glass (convex) withcarrier plate For heated and electricadjustable exterior mirrors	1H1 857 521 E
(12)	Mirror glass (convex) withcarrier plate For heated and electricadjustable exterior mirrors "J.."	1H1 857 521 E
(12)	Mirror glass (convex) withcarrier plate For heated and electricadjustable exterior mirrors	1H1 857 522 A
(12)	Mirror glass (convex) withcarrier plate For heated and electricadjustable exterior mirrors "J.."	1H1 857 522 A
(12)	mirror glass (aspherical-wide angle) with plate For heated and electricadjustable exterior mirrorsfor driving school vehicles	1H1 857 522 H
(12)	Mirror glass (convex) withcarrier plate For heated and electricadjustable exterior mirrors with lettering in:	1H1 857 522 J
(12)	mirror glass (flat) withplate For heated and electricadjustable exterior mirrors "AUS"	1H2 857 522 A
(12)	mirror glass (aspherical-wide angle) with plate For heated and electricadjustable exterior mirrors	1H2 857 522 C
(15)	Mirror cap	1H0 857 538 B
(15)	Mirror cap	1H0 857 537 B
(15)	Mirror cap	1H0 857 538 C
(17)	Cover cap	1H2 857 577
(17)	Cover cap	1H2 857 578
(17)	Cover cap	1H1 857 578
(18)	Bezel for exteriormirror ENGELMANN ENGELMANN	1H0 858 554 C
(18)	Bezel for exteriormirror HOHE HOHE	1H0 858 554 A
(18)	Bezel for exteriormirror ENGELMANN ENGELMANN	1H0 858 553 C
(2)	Exterior mirror housing For heated and electricadjustable exterior mirrors	1H1 857 508 A
(2)	Exterior mirror housing For heated and electricadjustable exterior mirrors	1H2 857 508 A
(2)	Exterior mirror housing For heated and electricadjustable exterior mirrors	1H2 857 507 A
1	Exterior mirror housing	1H1 857 507
10	knob	1H0 857 520 A
11	mirror glass (flat) withplate	1H1 857 521
12	mirror glass (flat) withplate For heated and electricadjustable exterior mirrors	1H1 857 521 B
13	No replacement part	—
15	Mirror cap	1H0 857 537 C
17	Cover cap	1H1 857 577
18	Bezel for exteriormirror HOHE HOHE	1H0 858 553 A
2	Exterior mirror housing For heated and electricadjustable exterior mirrors	1H1 857 507 A
20	Adjusting unit with motorfor exterior mirror	1H0 959 577
20	Adjusting unit with motorfor exterior mirror	4A0 959 577
22	No replacement part	—
3	fillister hd. bolt M 5 X 12 M 5 X 12	N 014 133 5
4	oval head panel screw shorten to: E 3,9 X 169 MM E 3,9 X 169 MM	N 903 494 01
5	expanding nut	1H0 853 120
8	Interior mirror,anti-dazzle	6N0 857 511 A
9	Interior mirrorfor vehicles with secondinterior mirror for serv. install. use: 701 845 543 A 701 845 543 A	357 858 561
