Floor covering — Mk3 Golf Dash Panel Centre Console (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Floor covering

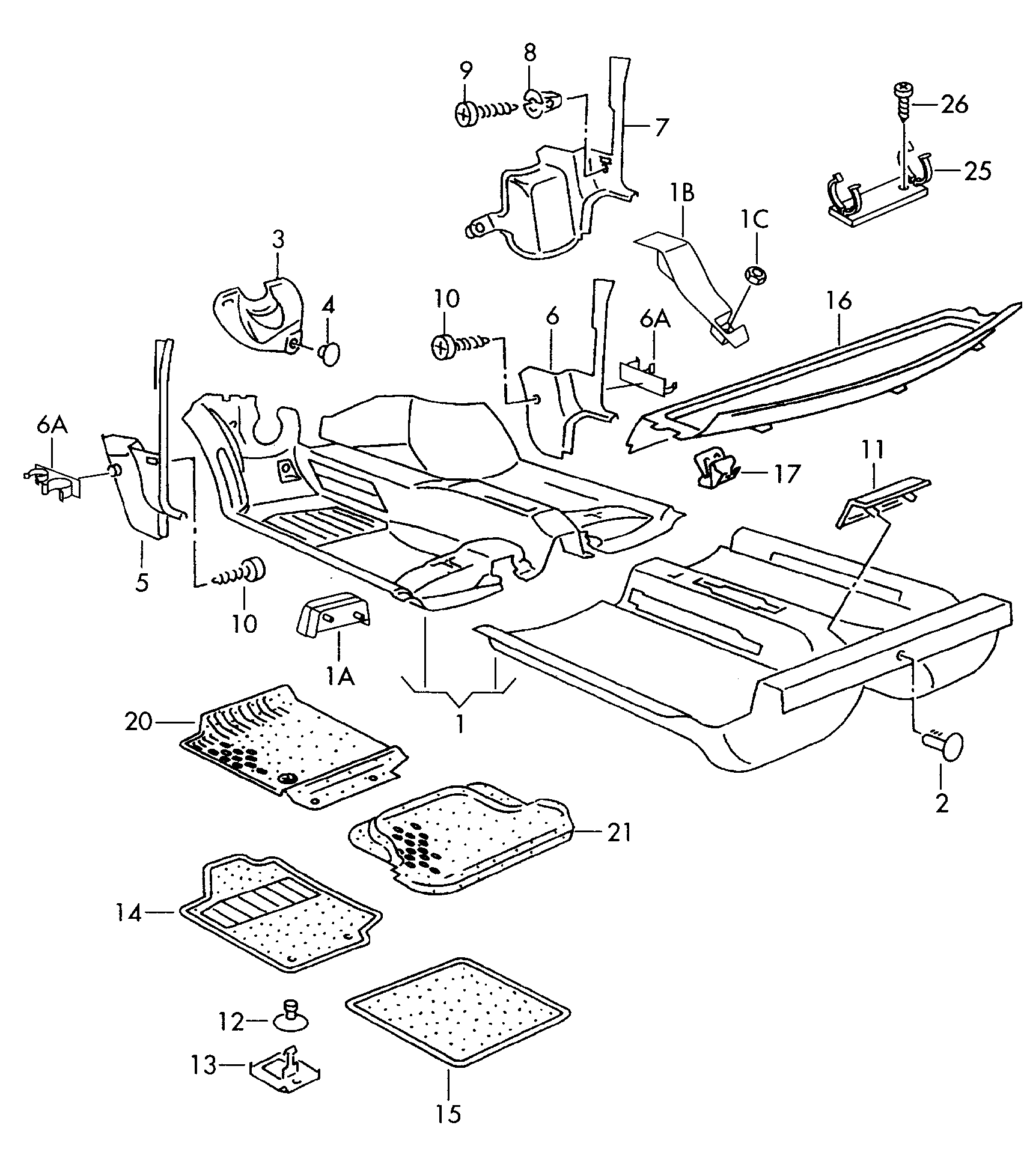

Floor covering for the Volkswagen Golf Mk3 (1997): factory exploded diagram 863000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 76 OEM part numbers across 79 catalogued positions including 1H1 863 484 A B 41, 1H2 863 483 B B 41 and 1H2 863 483 B T 21. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 76 OEM part numbers across 79 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1H1 863 484 A B 41 | |
| Satin black | 1H2 863 483 B B 41 | |
| beaver | 1H2 863 483 B T 21 | |
| flint -39,72 -39,72 | 1H2 863 483 B Y 01 | |
| pebble grey -39,72 -39,72 | 1H1 863 101 Q Y 34 | |
| Black | 1H1 863 101 Q B 23 | |
| Black | 1H2 863 101 L B 23 | |
| beaver | 1H2 863 101 L P 43 | |
| mauritius blue | 1H1 863 101 Q H 13 | |
| mauritius blue | 1H2 863 101 L H 13 | |
| pebble grey BON JOVI | 1H2 863 101 L Y 34 | |
| beaver | 1H1 863 101 Q P 43 | |
| Black | 1H2 863 101 R B 23 | |
| mauritius blue | 1H2 863 101 R H 13 | |
| beaver | 1H2 863 101 R P 43 | |
| pebble grey -39,72 -39,72 | 1H2 863 101 R Y 34 | |
| Satin black | 4A0 864 229 0 1C | |
| Satin black | 1H0 864 229 B 41 | |
| Satin black | 191 863 739 0 1C | |
| Satin black | 1H2 864 419 B 41 | |
| mauritius blue | 1H2 864 419 F 31 | |
| light beige | 1H2 864 419 Q 70 | |
| flint | 1H2 864 419 Y 01 | |
| beaver | 191 863 739 T 21 | |
| flint -39,72 -39,72 | 1H2 863 484 B Y 01 | |
| beaver | 321 863 119 T 21 | |
| Satin black | 321 863 119 0 1C | |
| beaver | 1H2 863 484 B T 21 | |
| Satin black | 1H1 863 129 B B 41 | |
| Satin black | 1H2 863 484 B B 41 | |
| Satin black | 1H2 863 129 D B 41 | |
| flint -39,72 -39,72 | 1H2 863 484 A Y 01 | |
| Satin black 9,5 X 8 X 24 9,5 X 8 X 24 | N 908 618 010 1C | |
| beaver | 1H2 863 484 A T 21 | |
| Satin black | N 904 384 010 1C | |
| Satin black | 1H2 863 484 A B 41 | |
| Satin black | 1H1 863 483 A B 41 | |
| beaver | 1H1 863 483 A T 21 | |
| flint -39,72 -39,72 | 1H1 863 483 A Y 01 | |
| flint -39,72 -39,72 | 1H1 863 484 A Y 01 | |
| Satin black | 1H2 863 483 A B 41 | |
| beaver | 1H2 863 483 A T 21 | |
| flint -39,72 -39,72 | 1H2 863 483 A Y 01 | |
| beaver | 1H1 863 484 A T 21 | |
| soft black -89,99 -89,99 | 1H1 863 483 A C 82 | |
| (1) | Flooring | 1H1 863 101 Q |
| (1) | Flooring | 1H2 863 101 L |
| (1) | Flooring | 1H2 863 101 L |
| (1) | Flooring Foot rest | 1H2 863 101 R |
| (1A) | Cap | 1H0 864 472 |
| (3) | Cover for steering column | 1H2 863 129 D |
| (3) | Cover for steering column | 1H1 863 129 B |
| (5) | A-pillar trim | 1H2 863 483 A |
| (5) | A-pillar trim | 1H2 863 483 B |
| (7) | A-pillar trim | 1H2 863 484 B |
| 10 | oval head panel screw 4,8 X 22 4,8 X 22 | N 013 971 3 |
| 11 | Cover | 191 863 739 |
| 12 | Cover cap | 1H0 864 229 |
| 12 | bracket for foot mat | 4A0 864 229 |
| 13 | Bracket | 4A0 864 227 |
| 14 | ** See accessory catalogue ** | — |
| 15 | ** See accessory catalogue ** | — |
| 1A | Cap | 1H0 864 471 |
| 1B | Foot rest | 1H2 864 419 |
| 1C | Hexagon nut 5 5 | N 904 827 01 |
| 2 | Bungs | 321 863 119 |
| 21 | floor cover (rubber)** See accessory catalogue ** | — |
| 25 | bracket for warning flare "J.." | 1H0 863 253 |
| 26 | oval head panel screwchromed 4,8 X 13 4,8 X 13 | N 013 968 1 |
| 4 | press stud 24 X 9,5 X 8 24 X 9,5 X 8 | N 904 384 01 |
| 4 | press stud 24 X 9,5 X 8 24 X 9,5 X 8 | N 908 618 01 |
| 5 | A-pillar trim | 1H1 863 483 A |
| 5 | A-pillar trim | 1H1 863 483 A |
| 6 | A-pillar trim | 1H1 863 484 A |
| 6A | Cable holdera-pillar | 1H0 971 731 |
| 7 | A-pillar trim | 1H2 863 484 A |
| 8 | insert nut | 811 807 577 C |
| 8 | expanding nut | 357 809 966 |
| 9 | oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0 | N 013 969 4 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 32 Dash panel / centre console
- Factory subgroup
- 863000
Related factory diagrams
Other published dash panel centre console plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the floor covering diagram for the Mk3 Golf?
- This diagram lists 76 OEM part numbers for the Mk3 Golf. The first three are 1H1 863 484 A B 41, 1H2 863 483 B B 41 and 1H2 863 483 B T 21.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
