Floor covering — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

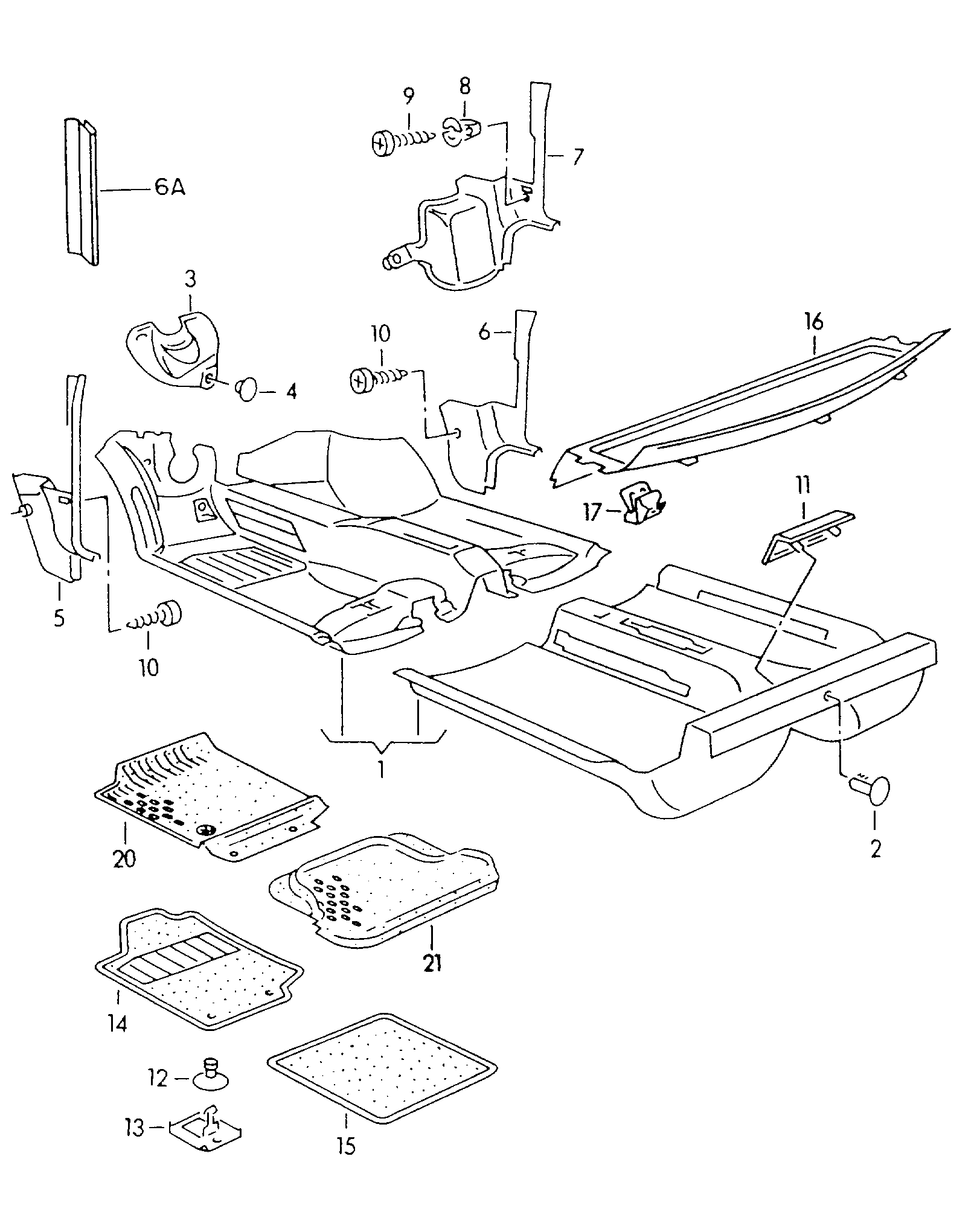

Factory title: Volkswagen Golf (1993 - 1996) - Floor covering
Floor covering for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 863000 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 64 OEM part numbers including N 908 618 010 1C, 1HM 863 101 H 13 and 1HM 863 101 P P 43. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 64 OEM part numbers across 64 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black 9,5 X 8 X 24 9,5 X 8 X 24 | N 908 618 010 1C | |
| mauritius blue | 1HM 863 101 H 13 | |
| beaver | 1HM 863 101 P P 43 | |
| beaver | 321 863 119 T 21 | |
| Satin black | 321 863 119 0 1C | |
| Satin black | 1H1 863 129 B B 41 | |
| Satin black | 1H1 863 483 A B 41 | |
| mauritius blue | 1H1 863 483 A F 31 | |
| beaver | 1H1 863 483 A T 21 | |
| light beige | 1HM 863 484 Q 70 | |
| Satin black | 1H1 863 484 A B 41 | |
| mauritius blue | 1H1 863 484 A F 31 | |
| beaver | 1H1 863 484 A T 21 | |
| Satin black | 191 863 739 0 1C | |
| Satin black | 4A0 864 229 0 1C | |
| Satin black 20 MM 20 MM | 321 867 164 0 1C | |
| mauritius blue | 1H5 863 413 A G 94 | |
| beaver | 1HM 863 413 R 36 | |
| Black | 1HM 863 413 5 YV | |
| beaver | 1HM 863 413 D R 36 | |
| Black | 1HM 863 413 D 5 YV | |
| beaver | 1HM 863 413 C R 36 | |
| Black | 1HM 863 413 C 5 YV | |
| mauritius blue | 1HM 864 495 H 13 | |
| beaver | 1HM 864 495 P 43 | |
| Black | 1HM 863 011 B 23 | |
| Black | 1HM 864 496 B 23 | |
| beaver | 1HM 864 496 P 43 | |
| Black | 1HM 864 496 A B 23 | |
| mauritius blue "CDN" | 1HM 864 496 A H 13 | |
| beaver | 1HM 864 496 A P 43 | |
| Black | 1HM 863 101 H B 23 | |
| Black | 1HM 863 101 K B 23 | |
| beaver | 1HM 863 101 K P 43 | |
| Black | 1HM 863 101 P B 23 | |
| - | Insulation strip F 1 H-T-000 001>> JETTA | 323 839 807 |
| (1) | Flooring F 1 H-S-000 003>>F 1 H-S-013 565>> "USA","CDN" | 1HM 863 101 P |
| (1) | Flooring F 1 H-R-059 408>> 1 H-S-013 564 F 1 H-R-009 703>> 1 H-S-000 002 "USA","CDN" | 1HM 863 101 K |
| (1) | Flooring F >> 1 H-R-059 407 F >> 1 H-R-009 702 "USA","CDN" | 1HM 863 101 H |
| (12) | Bungs "CDN"+ JETTA | 321 867 164 |
| (16) | Trim for rear shelfpanel F >> 1 H-R-037 642 F >> 1 H-R-039 312 "USA","CDN"+JETTA | 1H5 863 413 A |
| (16) | Trim for rear shelfpanel F 1 H-T-000 001>> "USA","CDN"+JETTA | 1HM 863 413 D |
| (16) | Trim for rear shelfpanel F 1 H-T-000 001>> JETTA | 1HM 863 413 C |
| (16) | Trim for rear shelfpanel F >> 1 H-S-999 000 F >> 1 H-R-999 000 "USA","CDN"+JETTAJETTA | 1HM 863 413 |
| (20) | Flooringfor vehicles with cover forelectronic control unit F >> 1 H-S-013 565 F >> 1 H-R-999 000 "USA","CDN" | 1HM 864 495 |
| (20) | Flooring F >> 1 H-S-013 565 "USA","CDN" | 1HM 864 496 A |
| (20) | 1 set foot mats | 1HM 863 011 |
| (20) | Flooringfor vehicles with cover forelectronic control unit F >> 1 H-R-999 000 | 1HM 864 496 |
| (6) | A-pillar trim | 1HM 863 484 |
| 1 | Flooring F >> 1 H-P-013 630 F >> 1 H-P-001 630 "USA","CDN" | 1HM 863 101 |
| 10 | oval head panel screw 4,8 X 22 4,8 X 22 | N 013 971 3 |
| 11 | Cover | 191 863 739 |
| 12 | bracket for foot mat F >> 1 H-S-013 565 | 4A0 864 229 |
| 13 | Bracket F >> 1 H-S-013 565 | 4A0 864 227 |
| 17 | Clip 15 X 11 X 1,4/3,8 JETTA 15 X 11 X 1,4/3,8 | N 905 143 01 |
| 2 | Bungs | 321 863 119 |
| 3 | Cover for steering column | 1H1 863 129 B |
| 4 | press stud 24 X 9,5 X 8 24 X 9,5 X 8 | N 908 618 01 |
| 5 | A-pillar trim | 1H1 863 483 A |
| 6 | A-pillar trim | 1H1 863 484 A |
| 6A | Seal | 1HM 863 493 C |
| 8 | insert nut | 811 807 577 C |
| 8 | expanding nut | 357 809 966 |
| 9 | oval head panel screw 4,8 X 16 4,8 X 16 | N 013 969 21 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Factory group
- 32 Dash panel / centre console
- Factory subgroup
- 863000
