Which VW part numbers are on the fuel delivery unit sender fuel gauge diagram for the Mk3 Golf?

This diagram lists 13 OEM part numbers for the Mk3 Golf. The first three are 1H0 919 679 C, 1H0 919 651 P and 1HM 919 051 N.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes AAA, AAM, ABA, ACC, ADC and ADD.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Fuel delivery unit sender fuel gauge — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Distance sensor. Combi-instrument

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 14 Primary OEM: 1H0 919 679 C, 1H0 919 651 P, 1HM 919 051 N

Fuel delivery unit sender fuel gauge for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 919050 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 13 OEM part numbers across 14 catalogued positions including 1H0 919 679 C, 1H0 919 651 P and 1HM 919 051 N. Parts on this plate carry the engine codes AAA, AAM, ABA, ACC, ADC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 13 OEM part numbers across 14 numbered positions.

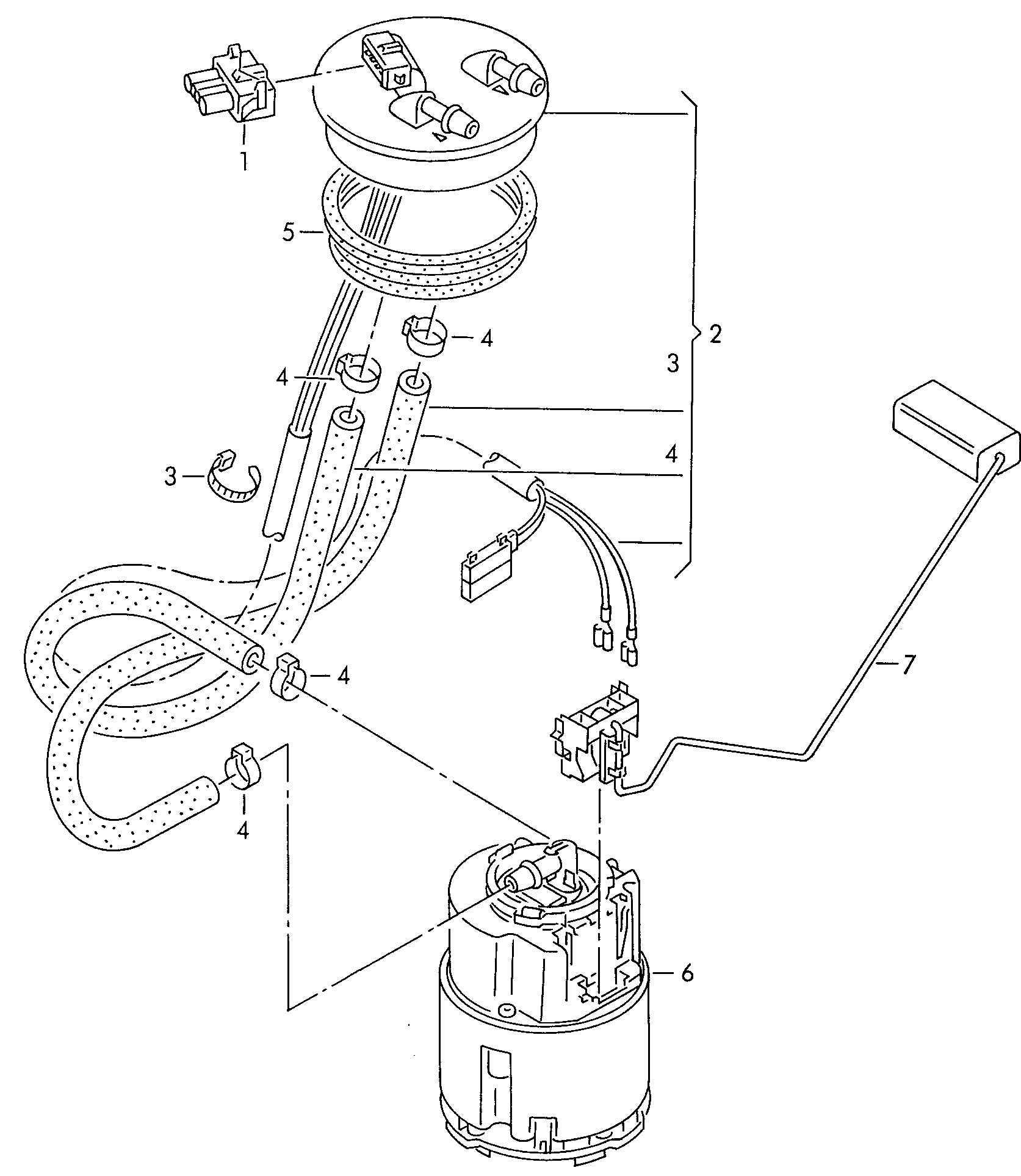

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel delivery unitand sender forfuel gauge F >> 1 H-R-014 324 F >> 1 H-S-012 882 AAM,ABA,ACCAAA,ABA,ACC AAMABAACC	—
(2)	flange with:Wire set Hose Hosehose clipclamp flange colour:to use for: flange colour:to use for:Assembly 1 H 0 919 0511 H 0 919 051 E 1 H 0 919 051 G 1 H 0 919 051 H 1 H 0 919 051 D 1 H 0 919 051 J 1 H 0 919 051 Q 1 H 0 919 051 R 1 HM 919 051 E 1 H 0 919 0511 H 0 919 051 E 1 H 0 919 051 G 1 H 0 919 051 H 1 H 0 919 051 D 1 H 0 919 051 J 1 H 0 919 051 Q 1 H 0 919 051 R 1 HM 919 051 E	1H0 919 679 C
(6)	fuel pump with housing housing colour: connection plate colour:for:Assembly F >> 1 H-P-003 434* also use: 3 BAR VDO 1 H 0 919 051 D 1 H 0 919 673 F 3 BAR VDO 1 H 0 919 051 D 1 H 0 919 673 F	1H0 919 651 P
(6)	Fuel delivery unit withseparately supported senderfor fuel gauge 1.2 BAR AAM, ACC 1.2 BAR AAMACC	1HM 919 051 N
(6)	fuel pump with housing 4 BAR VDO AAA 4 BAR VDO AAA	1H0 919 651 Q
(7)	Sender forfuel gauge lever colour: connector housing colour:for:Assembly F >> 1 H-P-003 434* 1 H 0 919 0511 H 0 919 051 E 1 H 0 919 051 D 1 H 0 919 0511 H 0 919 051 E 1 H 0 919 051 D	1H0 919 673
(7)	Sender forfuel gauge lever colour: connector housing colour:for:Assembly 1 H 0 919 051 G 1 H 0 919 051 H 1 H 0 919 051 Q 1 H 0 919 051 R 1 H 0 919 051 AF 1 H 0 919 051 G 1 H 0 919 051 H 1 H 0 919 051 Q 1 H 0 919 051 R 1 H 0 919 051 AF	1H0 919 673 F
(7)	Sender forfuel gauge lever colour: connector housing colour:for:Assembly 1 H 0 919 051 S 1 HM 919 0511 HM 919 051 M 191 919 051 BM 1 H 0 919 051 S 1 HM 919 0511 HM 919 051 M 191 919 051 BM	1H0 919 673 H
1	Flat contact housing	357 906 231
3	Cable ties with bracket 4,5 X 200 4,5 X 200	3D0 971 838 N
3	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
4	clamp 12,6-15,1 MM 12,6-15,1 MM	357 919 139
5	seal ring 109 109	1J0 919 133 A
6	Fuel delivery unit withseparately supported senderfor fuel gauge 3 BAR AAA,ADC,ADD,ABA 3 BAR AAAABAADCADD	1HM 919 051 M

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAA, AAM, ABA, ACC, ADC, ADD
Factory group: 32 Dash panel / centre console
Factory subgroup: 919050
