Fuel delivery unit separately supported sender fuel gauge — Mk3 Golf Dash Panel Centre Console (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Distance sensor. Combi-instrument

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 12 Primary OEM: 1H0 919 651 N, 1H0 919 651 P, 1H0 919 051 AK

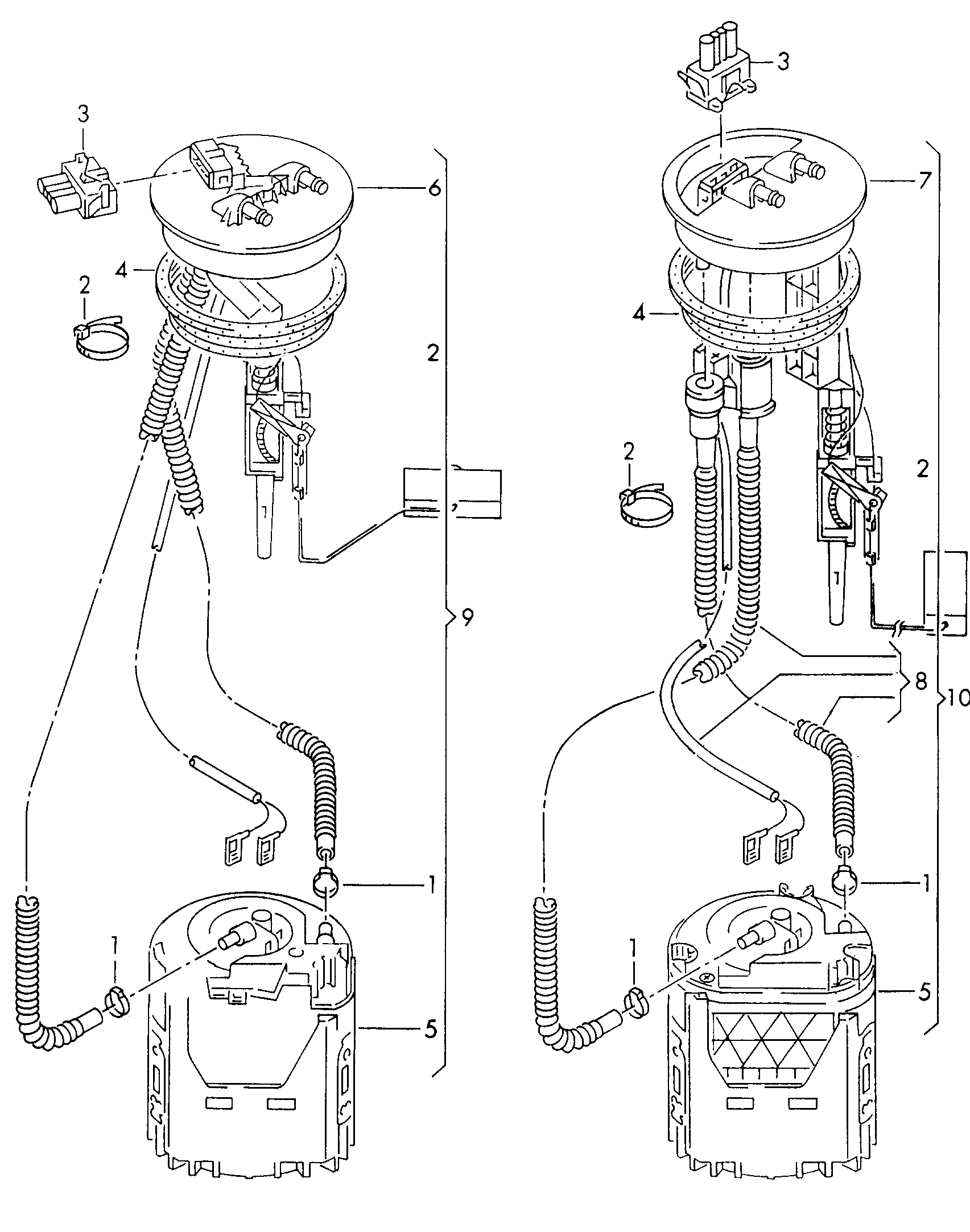

Fuel delivery unit separately supported sender fuel gauge for the Volkswagen Golf Mk3 (1997): factory exploded diagram 919052 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 11 OEM part numbers across 12 catalogued positions including 1H0 919 651 N, 1H0 919 651 P and 1H0 919 051 AK. Parts on this plate carry the engine codes AAA, AAM, ABF, ADZ, AEE, AEP, AEX and AFT. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 11 OEM part numbers across 12 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel delivery unit withseparately supported senderfor fuel gauge Petr. engine	—
(5)	fuel pump with housing also use: 1,2 BAR VDO 1 H 0 919 670 ADZ,AAM 1,2 BAR VDO 1 H 0 919 670 AAMADZ	1H0 919 651 N
(5)	fuel pump with housing also use: 3 BAR VDO 1 H 0 919 670 ABF,AGG,AEP,AFT,AEX,AEE,AAA,AKR,AKS 3 BAR VDO 1 H 0 919 670 AAAABFAEEAEPAEXAFTAGGAKRAKS	1H0 919 651 P
(9)	Fuel delivery unit withseparately supported senderfor fuel gauge 3 BAR ABF,AGG,AEP,AFT,AEX,AEE,AAA,AKR,AKS 3 BAR AAAABFAEEAEPAEXAFTAGGAKRAKS	1H0 919 051 AK
(9)	Fuel delivery unit withseparately supported senderfor fuel gauge 1,2 BAR ADZ,AAM 1,2 BAR AAMADZ	1H0 919 051 AJ
1	clamp 11,9 X 7 X 0,6 11,9 X 7 X 0,6	N 103 100 01
2	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
3	Flat contact housing	357 906 231
4	seal ring 109 109	321 919 133
4	seal ring 109 109	1J0 919 133 A
4	seal ring 109 109	1H0 919 133
6	Sensor module for fuelgauge	1H0 919 670

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA, AAM, ABF, ADZ, AEE, AEP, AEX, AFT
Factory group: 32 Dash panel / centre console
Factory subgroup: 919052
