Glove compartment stowage compartment — Mk3 Golf Dash Panel Centre Console (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Dashboard. dashboard fittings

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 106 Primary OEM: 357 858 133 0 1C, 1H1 857 101 B 41, 1H2 857 923 B B 41

Glove compartment stowage compartment for the Volkswagen Golf Mk3 (1997): factory exploded diagram 857020 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 105 OEM part numbers across 106 catalogued positions including 357 858 133 0 1C, 1H1 857 101 B 41 and 1H2 857 923 B B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 105 OEM part numbers across 106 numbered positions.

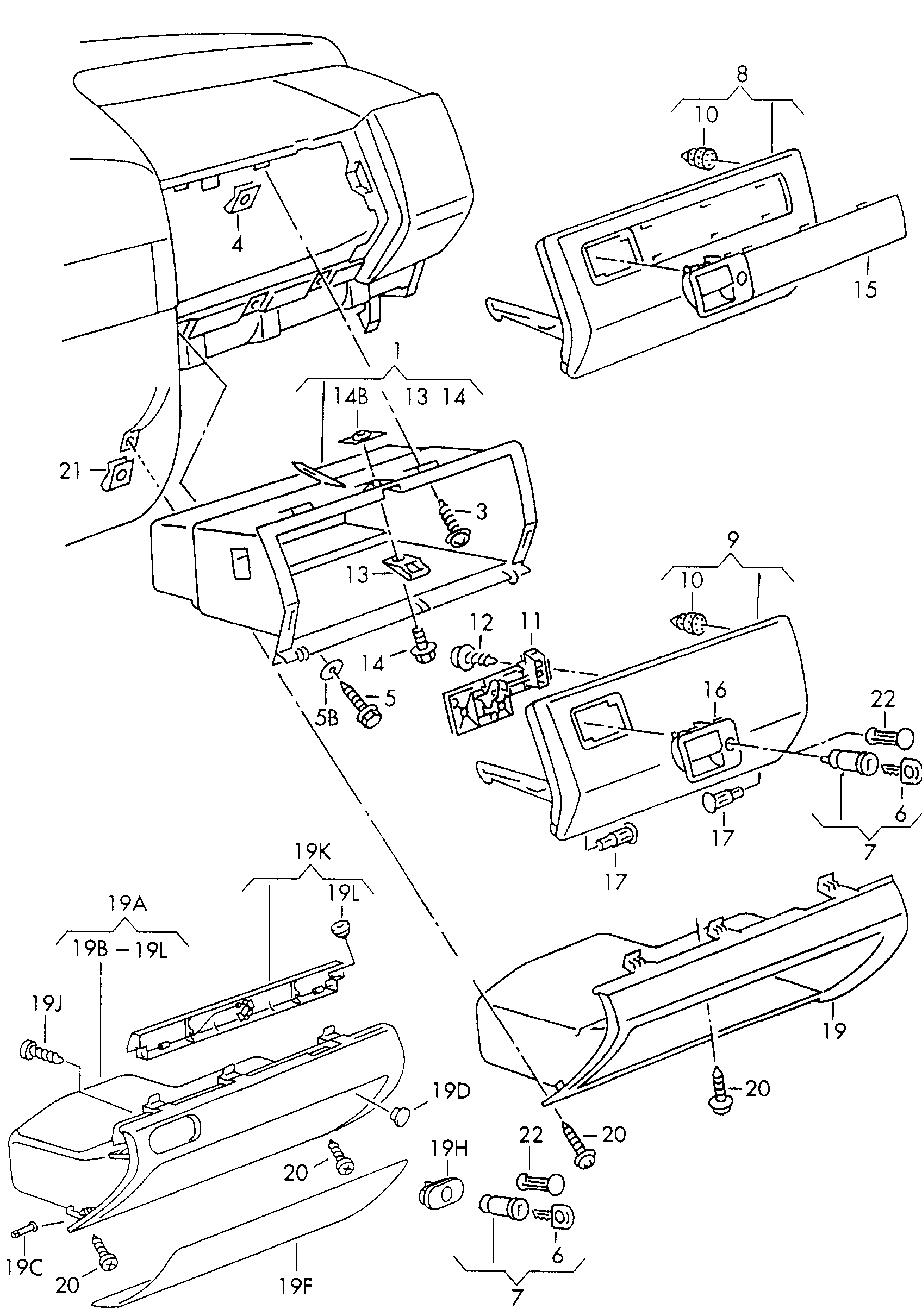

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	357 858 133 0 1C
	Satin black	1H1 857 101 B 41
	Satin black	1H2 857 923 B B 41
	beaver	1H2 857 923 B T 21
	flint	1H2 857 923 B Y 01
	Satin black	1H2 857 923 C B 41
	beaver	1H2 857 923 C T 21
	flint	1H2 857 923 C Y 01
	Satin black	1H1 857 924 B 41
	beaver	1H1 857 924 T 21
	flint	1H1 857 924 Y 01
	Satin black	1H1 857 924 A B 41
	beaver	1H1 857 924 A T 21
	flint	1H1 857 924 A Y 01
	soft black	1H1 857 924 A C 82
	Satin black	1H2 857 921 B 41
	soft black	1H2 857 921 C 82
	beaver	1H2 857 921 T 21
	flint	1H2 857 921 Y 01
	Satin black	1H2 857 921 A B 41
	soft black	1H2 857 921 A C 82
	beaver	1H2 857 921 A T 21
	flint	1H2 857 921 A Y 01
	Satin black	1H1 857 922 B B 41
	soft black	1H1 857 922 B C 82
	beaver	1H1 857 922 B T 21
	flint	1H1 857 922 B Y 01
	Satin black	1H1 857 922 C B 41
	soft black	1H1 857 922 C C 82
	beaver	1H1 857 922 C T 21
	flint	1H1 857 922 C Y 01
	Satin black	1H2 858 911 B 41
	soft black	1H2 858 911 C 82
	beaver	1H2 858 911 T 21
	flint	1H2 858 911 Y 01
	Satin black	1H1 858 912 B 41
	soft black	1H1 858 912 C 82
	beaver	1H1 858 912 T 21
	flint	1H1 858 912 Y 01
	Satin black	1H1 857 147 B 41
	soft black	1H1 857 147 C 82
	beaver	1H1 857 147 T 21
	flint	1H1 857 147 Y 01
	Satin black	1H2 857 147 B 41
	soft black	1H2 857 147 C 82
	beaver	1H2 857 147 T 21
	flint	1H2 857 147 Y 01
	Satin black	1H2 857 101 B 41
	Satin black	1H0 857 122 B 41
	Black	1H6 857 122 A 35
	beaver	1H6 857 122 Q 05
	Black	1H6 857 122 A A 35
	beaver	1H6 857 122 A Q 05
	Satin black	1H1 857 131 0 1C
	Satin black	1H2 857 131 0 1C
	Satin black	1H0 857 133 0 1C
	Satin black	1H0 857 133 B 41
	beaver	1H6 857 147 S 11
	Satin black	1H6 857 147 0 1C
	beaver	1H6 857 147 B S 11
	Satin black	1H6 857 147 B 0 1C
(1)	Glove compartment	1H2 857 101
(11)	catch	1H2 857 131
(14)	fillister hd. bolt shorten to: M 4 X 2015 MM M 4 X 2015 MM	N 902 412 03
(14)	Speed nut 3,1 X 16,5 X 11 3,1 X 16,5 X 11	N 906 501 01
(14B)	Speed nut 3,1 X 16,5 X 11 3,1 X 16,5 X 11	N 906 501 01
(16)	Actuator	1H6 857 147 B
(19)	Stowage compartment air condit.	1H2 857 923 C
(19)	Stowage compartment	1H2 857 923 B
(19)	Stowage compartment air condit.	1H1 857 924 A
(19)	Stowage compartment air condit.	1H1 857 924 A
(19A)	stowage box, (lockable) use if required: 1 H 0 857 113 air condit. 1 H 0 857 113	1H2 857 921 A
(19A)	stowage box, (lockable) use if required: 1 H 0 857 113 1 H 0 857 113	1H2 857 921
(19A)	stowage box, (lockable) use if required: 1 H 0 857 113 air condit. 1 H 0 857 113	1H1 857 922 C
(19F)	lid for glove box	1H2 858 911
(19H)	Actuator	1H2 857 147
(9)	Glove compartment lidfor padded dashboard	1H6 857 122 A
(9)	Glove compartment lid	1H0 857 122
1	Glove compartment	1H1 857 101
10	Bungs 7 X 2 X 10,7 7 X 2 X 10,7	N 905 814 01
11	catch	1H1 857 131
12	oval head panel screw 3,9 X 16 3,9 X 16	N 903 494 01
13	sealing bearing	1H0 857 133
14	oval head panel screw 3,9 X 16 3,9 X 16	N 903 494 01
16	Actuator	1H6 857 147
17	Hinge pin	867 857 169
19	Stowage compartment	1H1 857 924
19A	stowage box, (lockable) use if required: 1 H 0 857 113 1 H 0 857 113	1H1 857 922 B
19C	Hinge pin	1H0 857 169
19D	Stop buffer	171 857 145
19F	lid for glove box	1H1 858 912
19H	Actuator	1H1 857 147
19J	oval head panel screw 4 X 12 4 X 12	N 903 474 02
19K	catch	1H0 857 131
19L	Bungs 7 X 2 X 10,7 7 X 2 X 10,7	N 905 814 01
20	fillister hd. bolt shorten to: M 4 X 2015 MM M 4 X 2015 MM	N 902 412 03
21	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 02
22	Cover cap	357 858 133
3	fillister hd. bolt M 4 X 20 M 4 X 20	N 902 412 03
4	Speed nut M 4 X 15 X 17,5 M 4 X 15 X 17,5	N 904 190 02
5	Hexagon bolt M 5 X 20 M 5 X 20	N 010 264 4
5	Hexagon bolt M 5 X 18 M 5 X 18	N 010 296 2
5B	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
6	see illustration: 837-000 837-000	—
7	Lock cylinders	1H0 857 113
9	Glove compartment lidfor padded dashboard	1H6 857 122
