Insulation floor damping bulkhead damper tunnelsound — Mk3 Golf Dash Panel Centre Console (1997)

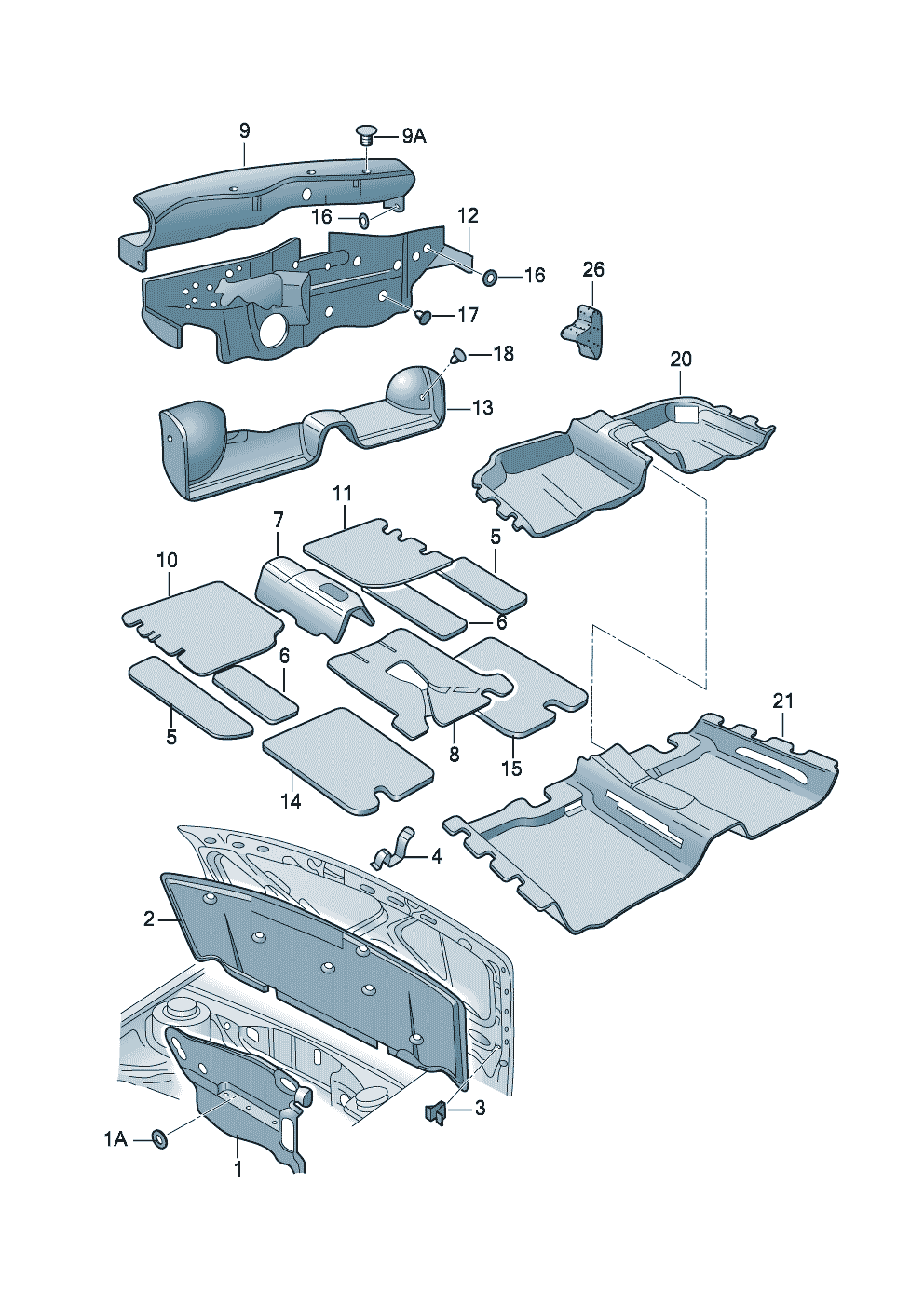

Factory title: Volkswagen Golf (1997 - 1998) - Floor covering

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 31 Primary OEM: 867 863 849 A 0 1C, N 908 618 010 1C, 441 863 987 A B 41

Insulation floor damping bulkhead damper tunnelsound for the Volkswagen Golf Mk3 (1997): factory exploded diagram 863020 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 31 OEM part numbers including 867 863 849 A 0 1C, N 908 618 010 1C and 441 863 987 A B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 31 OEM part numbers across 31 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	867 863 849 A 0 1C
	Satin black 9,5 X 8 X 24 9,5 X 8 X 24	N 908 618 010 1C
	Satin black	441 863 987 A B 41
	Satin black	N 904 384 010 1C
(1)	Damping for bulkhead	1H1 863 353 G
(1)	Damping for bulkhead	1H2 863 353 C
(12)	Damping for bulkhead	1H1 863 925 Q
(12)	Damping for bulkhead	1H2 863 925 K
(13)	sound absorber for pedal plate	1H2 863 939 B
(2)	sound absorber for flap	1H0 863 835 E
(9)	sound absorber for water box TDI	1H0 863 994
(9)	sound absorb. for cross member	1H2 863 909 A
(9)	sound absorb. for cross member	1H0 863 909 B
10	Insulation for floor	1H0 863 919 C
10	Insulation for floor	1H0 863 919
11	Insulation for floor	1H0 863 920
11	Insulation for floor	1H0 863 920 C
13	sound absorber for pedal plate	1H1 863 939 E
14	Insulation for floor	1H0 863 955 A
15	Insulation for floor	1H0 863 956 A
16	Clamping washer 5 X 30 5 X 30	N 907 965 02
16	Clamping washer 5 X 30 5 X 30	N 903 350 04
17	press stud 24 X 9,5 X 8 24 X 9,5 X 8	N 904 384 01
17	press stud 24 X 9,5 X 8 24 X 9,5 X 8	N 908 618 01
18	press stud 9,5 X 12 X 30 9,5 X 12 X 30	441 863 987 A
3	Clip	867 863 849 A
4	Clip	1H0 863 850
5	Insulation for floor	171 863 863 A
6	Damping	321 863 863
7	Damper for tunnel	1H0 863 869 C
8	Damper for tunnel	1H0 863 870 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 32 Dash panel / centre console
Factory subgroup: 863020
