Luggage boot trims cover lock carrier — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Floor covering

Generation: Mk3 1993 - 1996 (MEX) Group: Dash panel / centre console Parts: 33 Primary OEM: 1HM 863 772 D 4 AY, 1HM 863 463 D 4 AY, 1HM 863 463 K 4 AY

Luggage boot trims cover lock carrier for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 863080 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 33 OEM part numbers including 1HM 863 772 D 4 AY, 1HM 863 463 D 4 AY and 1HM 863 463 K 4 AY. Parts on this plate carry the engine code RA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 33 OEM part numbers across 33 numbered positions.

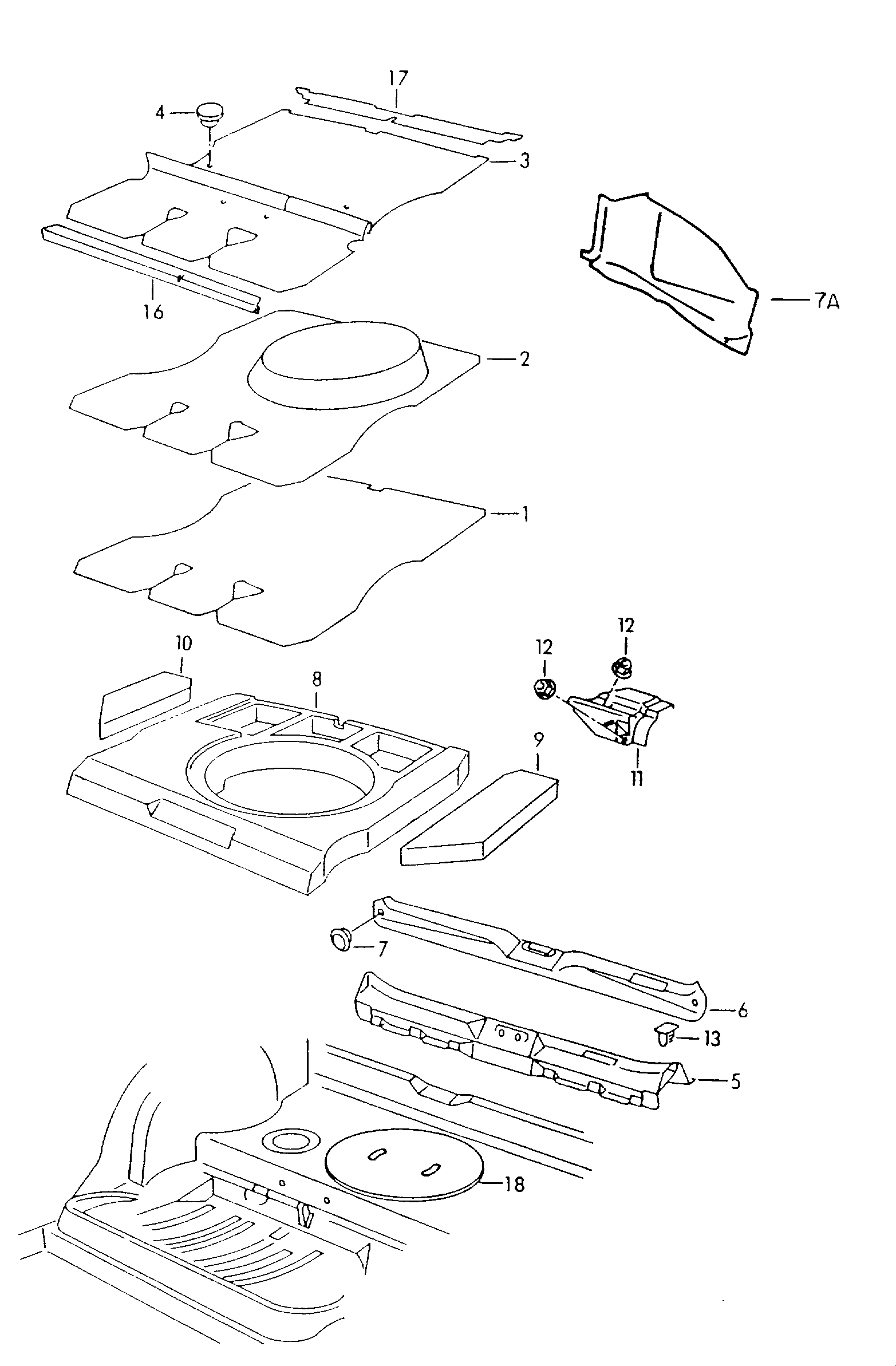

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Black
 1HM 863 772 D 4 AY
Black
 1HM 863 463 D 4 AY
Black
 1HM 863 463 K 4 AY
Satin black 9,5 X 4 X 30
9,5 X 4 X 30
 N 900 936 010 1C
Black
 1HM 863 772 K 4 AY
Black
 1H5 863 485 8 BM
Black
 1H6 863 485 8 BM
Black
 1HM 863 772 A 4 AY
Satin black
 191 863 689 0 1C
Black
 1HM 863 771 D 4 AY
Black
 1HM 863 771 E 4 AY
Black
 1HM 863 463 J 4 AY
Black
 1HM 863 463 A 4 AY
Black
 1HM 863 463 B 4 AY
(1)
luggage comp. floor covering GOLF
 1HM 863 463 D
(1)
luggage comp. floor covering "USA","CDN"+GOLF
 1HM 863 463 A
(1)
luggage comp. floor covering JETTA
 1HM 863 463 B
(1)
luggage comp. floor covering "BR."+GOLF GTI
 1HM 863 463 K
(1)
luggage comp. floor covering GOLF GTI
 1HM 863 463 J
(7A)
Coverrear panel JETTA
 1HM 863 772 A
(7A)
Trimrear panel JETTA
 1HM 863 771 E
(7A)
Coverrear panel GOLF
 1HM 863 772 D
(7A)
Trimrear panel JETTA
 1HM 863 772 K
(8)
Filler piece GOLF
 1HM 863 471 G
(8)
Filler piece JETTA
 1HM 863 471
(8)
Filler piece JETTA
 1HM 863 471 D
(8)
Filler piece "BR.","RA."
RA
1HM 863 471 E
4
press stud 9,5 X 4 X 30
9,5 X 4 X 30
 N 900 936 01
5
Cover for lock carrier JETTA
 1H5 863 485
6
Cover for lock carrier GOLF
 1H6 863 485
7
Clip
 191 863 689
7A
Coverrear panel GOLF
 1HM 863 771 D
8
Filler piece GOLF
 1HM 863 471 B

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Engine codes on this plate
RA
Variant tags
diesel_turbo
Factory group
32 Dash panel / centre console
Factory subgroup
863080

Related factory diagrams

Other published dash panel centre console plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the luggage boot trims cover lock carrier diagram for the Mk3 Golf?
This diagram lists 33 OEM part numbers for the Mk3 Golf. The first three are 1HM 863 772 D 4 AY, 1HM 863 463 D 4 AY and 1HM 863 463 K 4 AY.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine code RA.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
