Luggage boot trims cover lock carrier — Mk3 Golf Dash Panel Centre Console (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Floor covering

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 18 Primary OEM: 1H6 863 463 P 1 BS, N 908 315 010 1C, 1H6 863 463 Q 1 BS

Luggage boot trims cover lock carrier for the Volkswagen Golf Mk3 (1997): factory exploded diagram 863080 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 18 OEM part numbers including 1H6 863 463 P 1 BS, N 908 315 010 1C and 1H6 863 463 Q 1 BS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 18 OEM part numbers across 18 numbered positions.

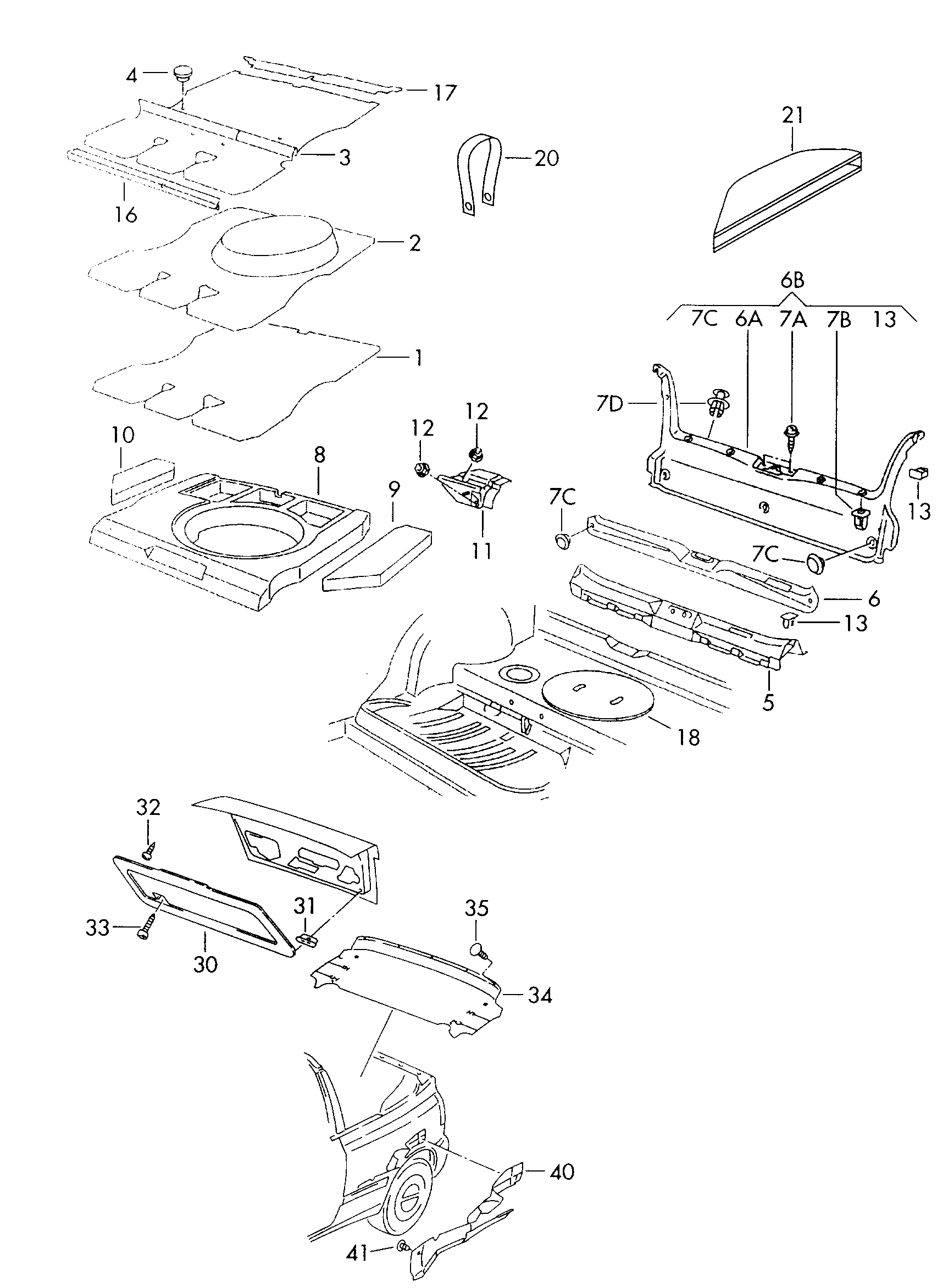

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	anthracite	1H6 863 463 P 1 BS
	Satin black 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 010 1C
	anthracite	1H6 863 463 Q 1 BS
	Black	1H5 863 463 B B 09
	Satin black	357 867 646 0 1C
	anthracite	1H6 863 463 L 1 BS
	Satin black	N 905 740 010 1C
(1)	luggage comp. floor covering	1H6 863 463 Q
(1)	luggage comp. floor coveringfor spare wheel with normaltirefor vehicles with highercargo platformmodify in workshop PVC PVC	1H5 863 463 B
(2)	luggage comp. floor coveringfor spare wheel with normaltire "BR."	1H6 863 463 P
(2)	luggage comp. floor coveringfor spare wheel with normaltire and raised boot floor	1H6 863 463 L
13	Clip	357 867 646
6B	cover for lock carrier withsecuring parts Rework if necessary	1H6 898 459 A
7A	Hexagon socket head panel bolt 4,8 X 16 4,8 X 16	N 907 750 01
7A	Oval hexagon socket head bolt ST 4,8 X 16-C ST 4,8 X 16-C	N 906 487 02
7B	insert nut	441 035 555
7C	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
7C	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 908 315 01
