Which VW part numbers are on the noise insulation diagram for the Mk3 Golf?

This diagram lists 3 OEM part numbers for the Mk3 Golf. The first three are 4A0 863 955, 323 863 950 and 191 863 893.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Noise insulation — Mk3 Golf Dash Panel Centre Console (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Floor covering

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 5 Primary OEM: 4A0 863 955, 323 863 950, 191 863 893

Noise insulation for the Volkswagen Golf Mk3 (1997): factory exploded diagram 863040 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 3 OEM part numbers across 5 catalogued positions including 4A0 863 955, 323 863 950 and 191 863 893. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 3 OEM part numbers across 5 numbered positions.

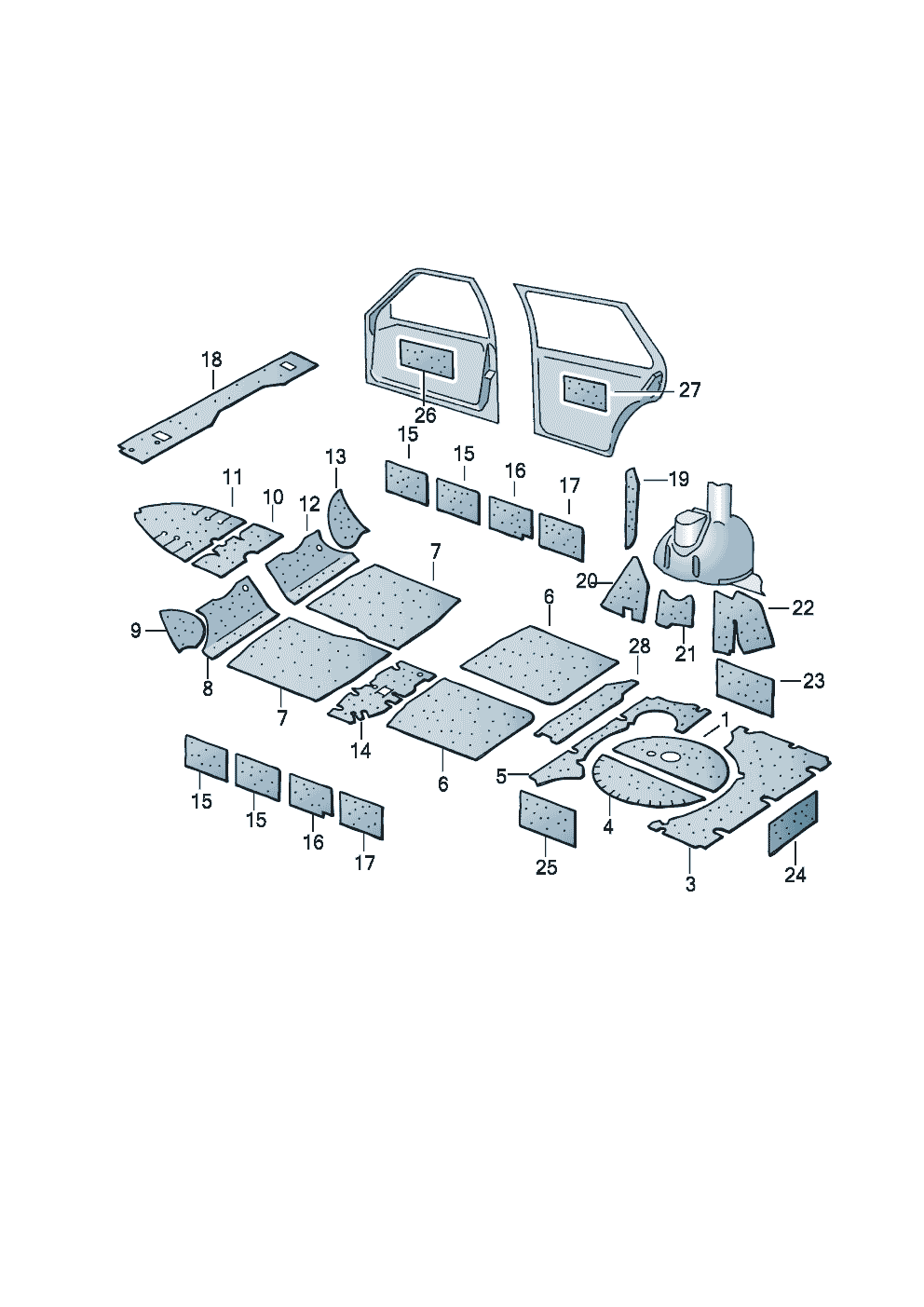

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(25)	heat-molded sound absorber'order unit 6' 550 X 250 X 2,3 550 X 250 X 2,3	4A0 863 955
(25)	sound absorber (self-adhesive)'order unit 6' 550 X 250 X 2 550 X 250 X 2	323 863 950
1	sound absorber for spare wheelwell	191 863 893
15-28	Damping make up from: 323 863 950 323 863 950	—
3-14	heat-molded sound absorber make up from: 4 A 0 863 955 4 A 0 863 955	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 32 Dash panel / centre console
Factory subgroup: 863040
