Oil pressure switch oil temperature sender temperature — Mk3 Golf Dash Panel Centre Console (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Distance sensor. Combi-instrument

Generation: Mk3 1994 - 1997 (RDW) Group: Dash panel / centre console Parts: 26 Primary OEM: 535 919 521, 251 919 501 D, 191 919 369 A

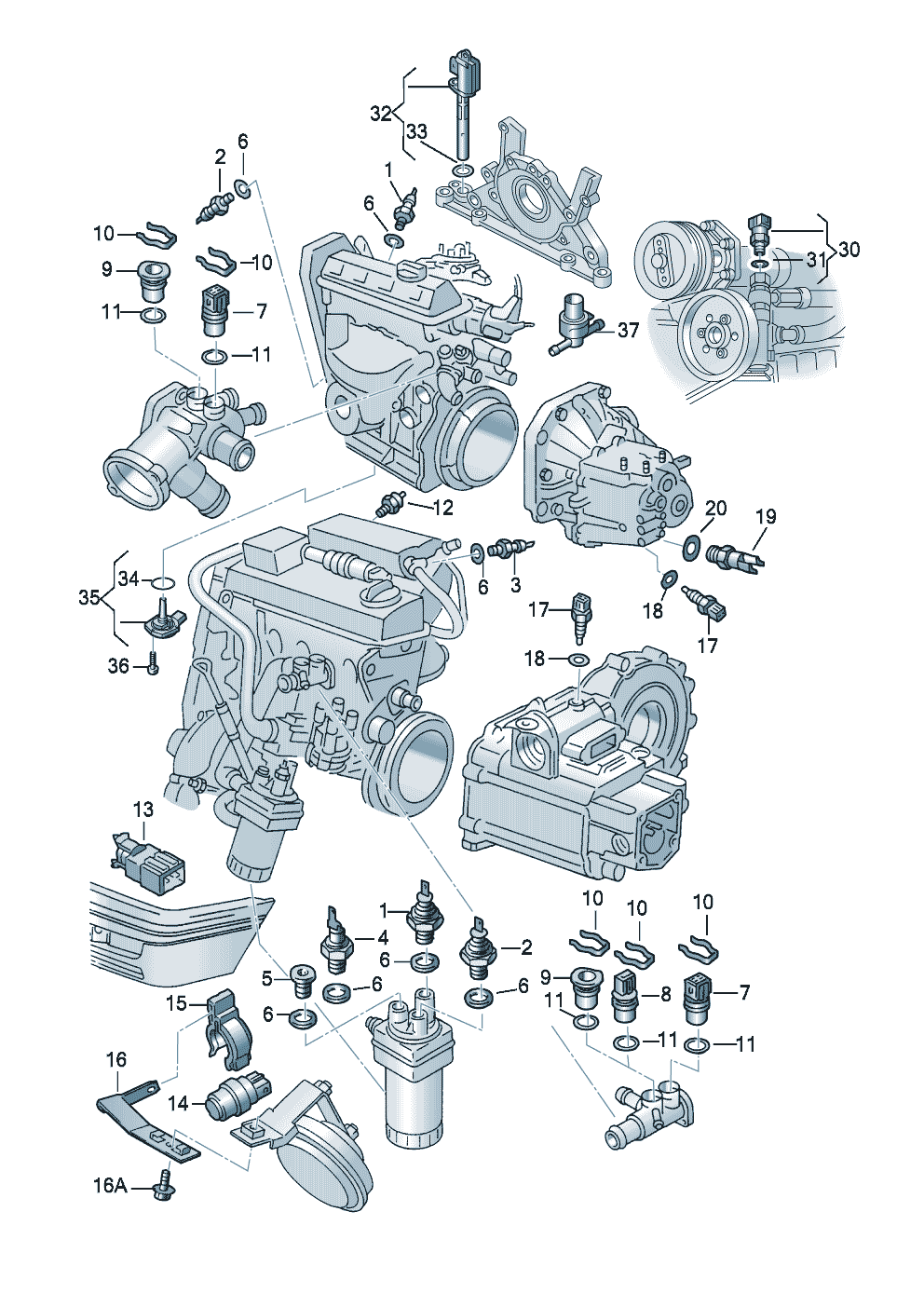

Oil pressure switch oil temperature sender temperature for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 919060 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 25 OEM part numbers across 26 catalogued positions including 535 919 521, 251 919 501 D and 191 919 369 A. Parts on this plate carry the engine codes 2E, AAM, ABS, ADY, ADZ, AEP, AGG and AKR. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 25 OEM part numbers across 26 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Oil pressure switch Oil temperature sender Temperature sensor Temperature sensortemperature switchswitch for reversing light 2 E,ABS,ADY,AEP,AAM,ADZ,AGG,AKR,ANN,ANP 2EAAMABSADYADZAEPAGGAKRANNANP	—
(12)	thermal switch For vehicles with radiator fanrun-on 90 C M 10 X 1 ADY 90 C M 10 X 1 ADY	535 919 521
(7)	Temperature sensorfor coolant temperaturegauge 20 MM ADY,ADZ,AGG,AKR,ANN 20 MM ADYADZAGGAKRANN	251 919 501 D
(8)	thermal switch For deactivating the air-conditioning system	191 919 369 A
1	Oil pressure switch 0,25 BAR M 10 X 1 0,25 BAR M 10 X 1	028 919 081 D
10	retaining spring	025 121 142
10	retaining spring	032 121 142
11	O-ring 19,6 X 3,65 19,6 X 3,65	N 903 168 01
12	thermal switchfor models withtowing facility For vehicles with radiator fanrun-on 100 C M 10 X 1 100 C M 10 X 1	191 919 521 D
13	External temperature sensor -40/+40 C -40/+40 C	357 919 379 A
14	temperature switch Temperature sensor 10/1,7 C 20 MM air condit. 10/1,7 C 20 MM	1H0 959 625
15	Clip air condit.	1H0 971 847
16	Bracket air condit.	1H0 907 531 A
16A	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
17	switch for reversing light M 12 X 1,5 M 12 X 1,5	020 945 415 A
18	seal ring	020 301 244
2	Oil pressure switch 1,8 BAR M 10 X 1 1,8 BAR M 10 X 1	056 919 081 E
20	seal ring 18 X 22 18 X 22	N 013 832 6
3	Fuel pressure switch 1,2 BAR M 10 X 1 2 E 1,2 BAR M 10 X 1 2E	357 919 081
4	Oil temperature sender 0-150 C M 10 X 1 0-150 C M 10 X 1	1H0 919 563
5	sealing plug M 10 X 1 M 10 X 1	N 016 024 1
6	seal ring A 10 X 14 A 10 X 14	N 013 806 4
6	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
7	Temperature sensorfor coolant temperaturegaugeandengine control 20 MM 20 MM	357 919 501 A
8	thermal switchfor vehicles with Radiator fan 3 stages 112 C 20 MM 2 E,ABS,ADY,AGG,AKR 112 C 20 MM 2EABSADYAGGAKR	357 919 369 F
9	Bungs	357 121 140

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Engine codes on this plate: 2E, AAM, ABS, ADY, ADZ, AEP, AGG, AKR
Factory group: 32 Dash panel / centre console
Factory subgroup: 919060
