Which VW part numbers are on the three point safety belt front diagram for the Mk3 Golf?

This diagram lists 46 OEM part numbers for the Mk3 Golf. The first three are 1H4 857 705 A 6 NS, 1H3 857 705 A B 41 and 1H3 857 705 A 6 NS.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Three point safety belt front — Mk3 Golf Dash Panel Centre Console (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Dashboard. dashboard fittings

Generation: Mk3 1997 (RDW) Group: Dash panel / centre console Parts: 49 Primary OEM: 1H4 857 705 A 6 NS, 1H3 857 705 A B 41, 1H3 857 705 A 6 NS

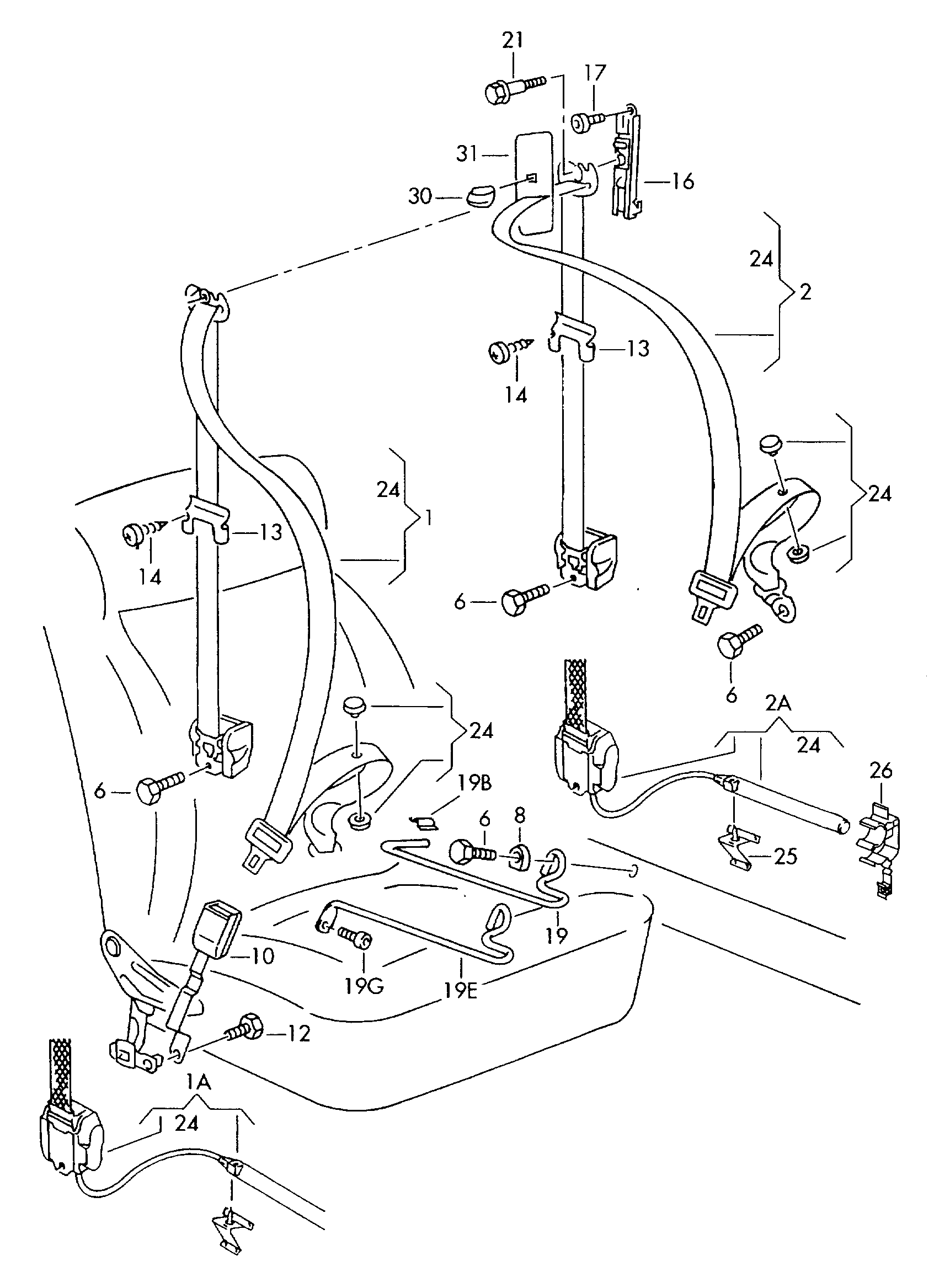

Three point safety belt front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 857060 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 46 OEM part numbers across 49 catalogued positions including 1H4 857 705 A 6 NS, 1H3 857 705 A B 41 and 1H3 857 705 A 6 NS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 46 OEM part numbers across 49 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	bright red -35 -35	1H4 857 705 A 6 NS
	Satin black	1H3 857 705 A B 41
	bright red -35 -35	1H3 857 705 A 6 NS
	flash red -35 -35	1H3 857 705 A 1 NQ
	Satin black	1H3 857 706 A B 41
	bright red -35 -35	1H3 857 706 A 6 NS
	flash red -35 -35	1H3 857 706 A 1 NQ
	Satin black	1H4 857 705 A B 41
	flash red -35 -35	1H4 857 705 A 1 NQ
	Satin black	1H4 857 706 A B 41
	flash red -35 -35	1H4 857 706 A 1 NQ
	bright red -35 -35	1H4 857 706 A 6 NS
	Satin black	1H0 857 755 0 1C
	satin black/fire red -35 GTI -35	1H0 857 755 F CN
	Satin black	1H1 857 755 0 1C
	Satin black	1H0 857 756 0 1C
	satin black/fire red -35 GTI -35	1H0 857 756 F CN
	Satin black	1H2 857 756 A 0 1C
	satin black/fire red -35 GTI -35	1H2 857 756 A F CN
	Satin black	1H0 857 817 A 0 1C
	soul (black)	443 857 847 B 4 PK
-	sheer bolt M 8 X 33 M 8 X 33	N 905 713 01
(10)	Belt latch with warningcontact	1H1 857 755
(10)	Belt latch with warningcontact	1H2 857 756 A
(10)	Belt latch	1H0 857 756
(13)	Seat belt guide	1H0 857 817 A
(17)	Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20	N 014 779 1
(19E)	guide arm	1H0 857 826 A
(1A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****	1H3 857 706 A
(2A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****	1H4 857 705 A
(2A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****	1H4 857 706 A
(2A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****	1H4 857 706 A
(2A)	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****	1H4 857 705 A
10	Belt latch	1H0 857 755
12	Hexagon bolt 7/16"X 25 7/16"X 25	111 857 799
14	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
16	seat belt heightadjuster	1H0 857 819
17	Socket head bolt withhexagon socket head M 8 X 16 M 8 X 16	N 014 739 2
19E	guide arm	1H0 857 825 A
19G	Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20	N 014 779 1
1A	three-point automatic seatbelt with belt tensioner*** Caution Hazardous ****	1H3 857 705 A
21	Locating bolt 7/16"X 22 7/16"X 22	1H0 857 846
24	knob	443 857 847 B
25	Mount.block for belt tensioner	1H0 858 891
26	Bracket see illustration: Use item: 853-0304 853-0304	—
30	see illustration: 867-065 867-065	—
31	see illustration: 867-065 867-065	—
6	Hexagon bolt 7/16"X 25 7/16"X 25	111 857 799
8	Cover cap	1H0 857 741 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 32 Dash panel / centre console
Factory subgroup: 857060
