Three point safety belt lap belt rear — Mk3 Golf Dash Panel Centre Console (1993 - 1996)

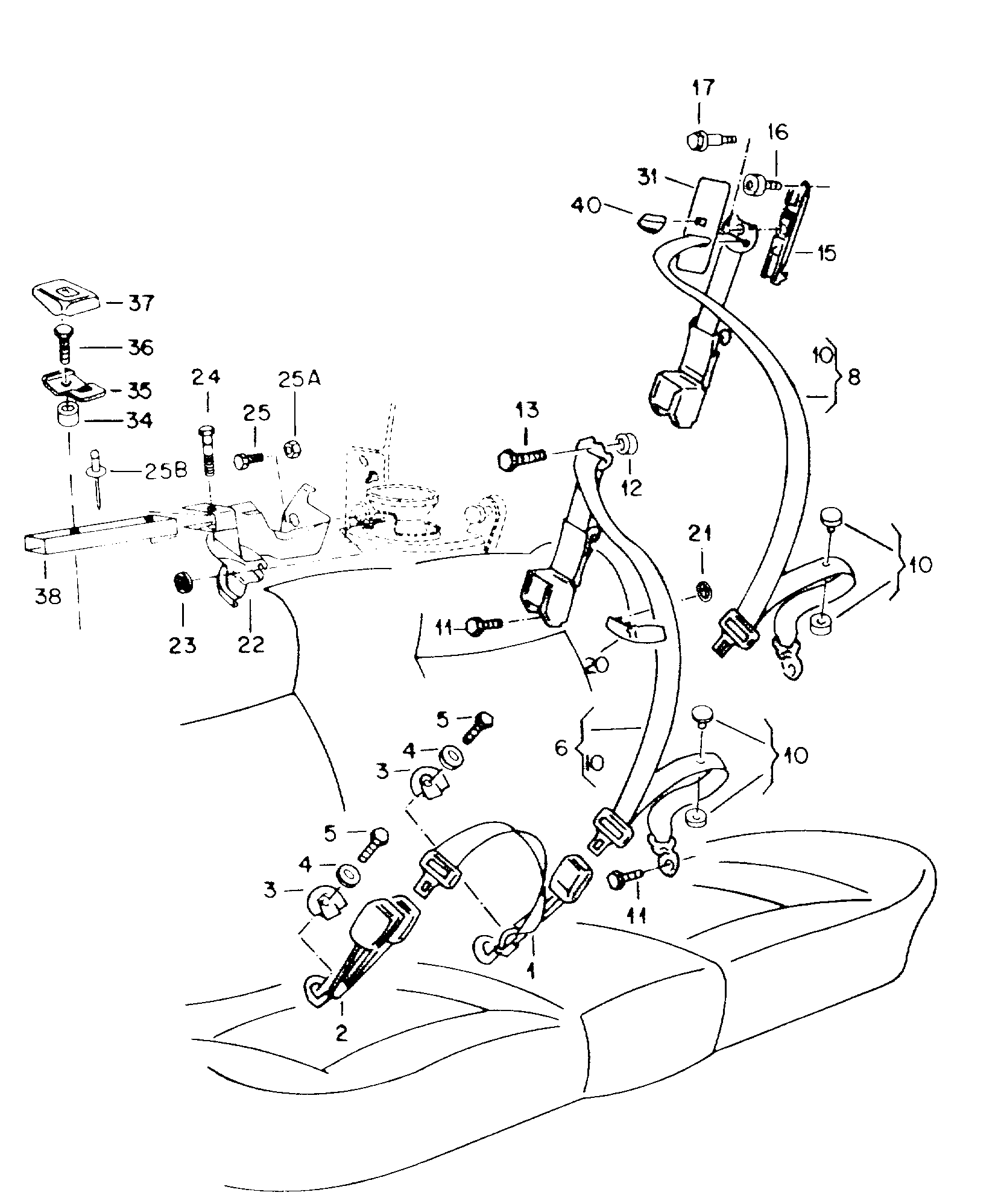

Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings
Three point safety belt lap belt rear for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857070 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 53 OEM part numbers across 55 catalogued positions including 1H3 858 883 B 41, 443 887 301 B 0 1C and 1H3 858 884 B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 53 OEM part numbers across 55 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1H3 858 883 B 41 | |
| Satin black | 443 887 301 B 0 1C | |
| Satin black | 1H3 858 884 B 41 | |
| Satin black | 1HM 857 805 B 41 | |
| Satin black | 1HM 857 805 Q B 41 | |
| Satin black | 1HM 857 806 Q B 41 | |
| Satin black | 1HM 857 805 M B 41 | |
| Satin black | 1HM 857 806 M B 41 | |
| Satin black | 1HM 857 805 R B 41 | |
| Satin black | 1HM 857 806 R B 41 | |
| soul (black) | 443 857 847 B 4 PK | |
| (1) | Lap belt with beltlock F >> 1 H-S-017 312* BENDIX BENDIX | 1HM 857 713 B |
| (1) | Lap belt with beltlock F 1 H-S-017 313>>* AUTOLIV AUTOLIV | 1HM 857 713 D |
| (11) | Hexagon bolt F 1 H-T-031 665>>*F 1 H-T-001 251>>* 7/16"-20 UNFX 20 "USA","CDN" 7/16"-20 UNFX 20 | 1H0 857 799 |
| (12) | spacer bush | 1H0 857 937 |
| (2) | Double belt latch F 1 H-S-017 313>>* AUTOSAFETY AUTOSAFETY | 1HM 857 739 B |
| (20) | Retainer for safety belt | 1H3 858 884 |
| (22) | Bracket For vehicles with child seat GOLF | 1H6 858 878 |
| (25) | Hexagon bolt F 1 H-T-031 665>>* 7/16"-20 UNFX 20 GOLF 7/16"-20 UNFX 20 | 1H0 857 799 |
| (34) | Shim 11,2 X 17 X 8,5 GOLF 11,2 X 17 X 8,5 | 810 019 829 |
| (5) | Hexagon bolt F 1 H-T-031 665>>*F 1 H-T-001 251>>* 7/16"-20 UNFX 20 "USA","CDN" 7/16"-20 UNFX 20 | 1H0 857 799 |
| (6) | Three-point safety belt F 1 H-T-000 001>>F 1 H-S-017 313>> AUTO SAFETY "USA","CDN" AUTO SAFETY | 1HM 857 805 Q |
| (6) | Three-point safety belt | 1HM 857 806 Q |
| (8) | Three-point safety belt | 1HM 857 805 R |
| (8) | Three-point safety belt "USA","CDN" | 1HM 857 806 M |
| (8) | Three-point safety belt | 1HM 857 806 R |
| 1 | Lap belt with beltlock REPA "USA","CDN" REPA | 1HM 857 713 |
| 10 | knob | 443 857 847 B |
| 11 | Hexagon bolt F >> 1 H-T-031 664*F >> 1 H-T-001 250* 7/16"X 25 "USA","CDN" 7/16"X 25 | 111 857 799 |
| 12 | Shim 11,2 X 17 X 8,5 11,2 X 17 X 8,5 | 810 019 829 |
| 13 | Hexagon bolt 7/16-20 UNFX 42 7/16-20 UNFX 42 | N 989 116 01 |
| 15 | seat belt heightadjuster | 1H0 857 819 |
| 16 | Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20 | N 014 779 1 |
| 17 | Locating bolt 7/16"X 22 7/16"X 22 | 1H0 857 846 |
| 2 | Double belt latch REPA "USA","CDN" REPA | 1HM 857 739 |
| 20 | Retainer for safety belt | 1H3 858 883 |
| 21 | nut,thread cutting 5 5 | N 038 601 1 |
| 22 | Bracket For vehicles with child seat GOLF | 1H6 858 877 |
| 23 | Hexagon nut M 8.0 GOLF M 8.0 | N 011 008 30 |
| 24 | Hexagon bolt M 8 X 35 GOLF M 8 X 35 | N 010 335 20 |
| 25 | Hexagon bolt F >> 1 H-T-031 664* 7/16"X 25 GOLF 7/16"X 25 | 111 857 799 |
| 25A | panel nut 5/16-18 JETTA 5/16-18 | N 989 514 01 |
| 25B | Pop rivet 4 X 9 JETTA 4 X 9 | N 905 763 01 |
| 3 | Cover cap | 1H0 857 741 |
| 31 | see illustration: 867-065 867-065 | — |
| 34 | Shim JETTA | 1H5 858 846 |
| 35 | Bracket GOLF | 443 887 269 |
| 36 | Hexagon bolt M 8 X 30 GOLF M 8 X 30 | N 010 244 16 |
| 37 | Cap GOLF | 443 887 301 B |
| 38 | Supporting rod GOLF | 1H6 857 875 |
| 4 | Washer 11,5 X 21 X 1,8 11,5 X 21 X 1,8 | N 011 655 2 |
| 40 | see illustration: 867-065 867-065 | — |
| 5 | Hexagon bolt F >> 1 H-T-031 664*F >> 1 H-T-001 250* 7/16"X 25 "USA","CDN" 7/16"X 25 | 111 857 799 |
| 6 | Three-point safety belt F >> 1 H-S-999 000 TRW REPA TRW REPA | 1HM 857 805 |
| 8 | Three-point safety belt "USA","CDN" | 1HM 857 805 M |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Factory group
- 32 Dash panel / centre console
- Factory subgroup
- 857070
