Which VW part numbers are on the three point safety belt lap belt rear diagram for the Mk3 Golf?

This diagram lists 16 OEM part numbers for the Mk3 Golf. The first three are 1E0 857 805 B B 41, 1E0 857 805 B 41 and 443 857 847 B 4 PK.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Three point safety belt lap belt rear — Mk3 Golf Dash Panel Centre Console (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Dashboard. dashboard fittings

Generation: Mk3 1994 - 1997 (RDW) Group: Dash panel / centre console Parts: 16 Primary OEM: 1E0 857 805 B B 41, 1E0 857 805 B 41, 443 857 847 B 4 PK

Three point safety belt lap belt rear for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 857070 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 16 OEM part numbers including 1E0 857 805 B B 41, 1E0 857 805 B 41 and 443 857 847 B 4 PK. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 16 OEM part numbers across 16 numbered positions.

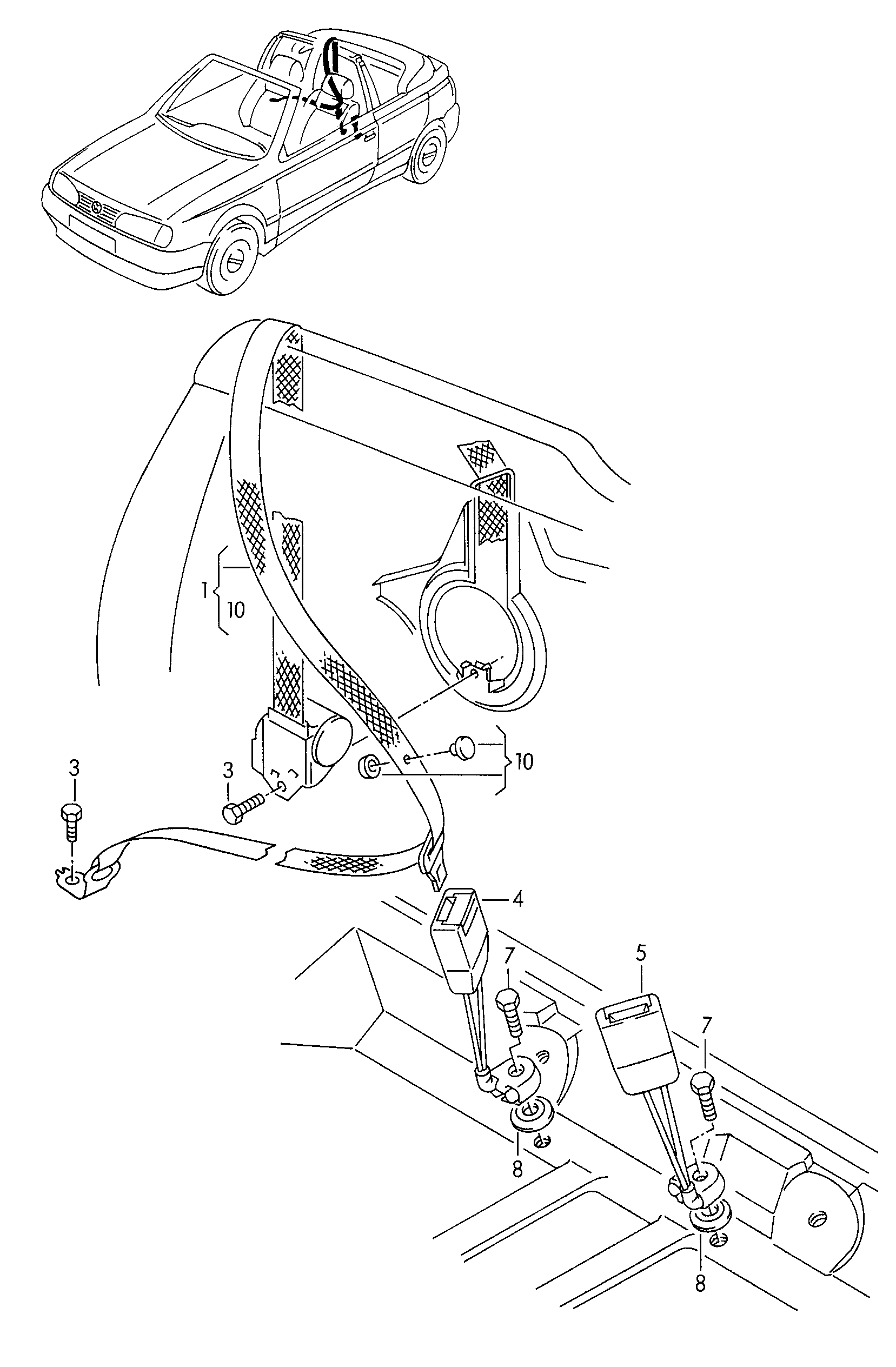

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1E0 857 805 B B 41
	Satin black	1E0 857 805 B 41
	soul (black)	443 857 847 B 4 PK
	satin black/fire red	1E0 857 740 F CN
	satin black/fire red	1E0 857 739 F CN
(1)	Three-point safety belt	1E0 857 805 B
1	Three-point safety belt	1E0 857 805
10	knob	443 857 847 B
10	knob 16 MM 16 MM	443 857 847 B
3	Hexagon bolt 7/16"X 20 7/16"X 20	111 857 799 A
3	Hexagon bolt 7/16"X 20 7/16"X 20	3B0 857 799
4	Belt latch	1E0 857 739
5	Belt latch	1E0 857 740
7	Hexagon bolt 7/16"X 35 7/16"X 35	803 019 837
8	seal ring	803 019 813
8	Seal	811 857 821

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these dash panel centre console diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 32 Dash panel / centre console
Factory subgroup: 857070
