Two point safety belt knee padding f 1 h r 012 658 front usa — Mk3 Golf Dash Panel Centre Console (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Dashboard. dashboard fittings

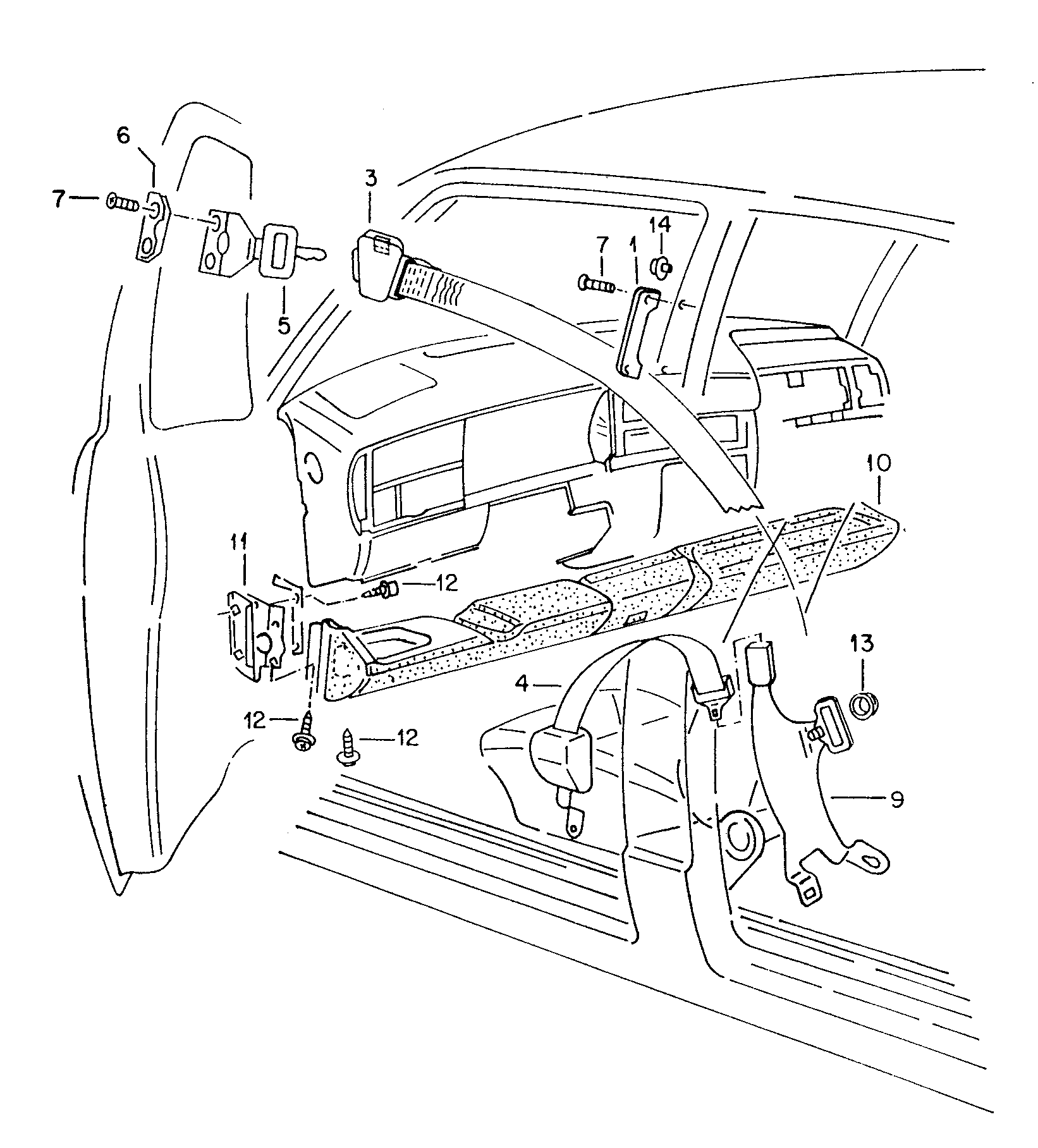

Two point safety belt knee padding f 1 h r 012 658 front usa for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 857065 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 31 OEM part numbers across 32 catalogued positions including 1H1 857 881 A 35, 1H1 857 882 Q 05 and 811 857 845 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 31 OEM part numbers across 32 numbered positions.
| № | Description | Part number |
|---|---|---|
| Black | 1H1 857 881 A 35 | |
| beaver | 1H1 857 882 Q 05 | |
| Satin black | 811 857 845 0 1C | |
| mauritius blue | 1H1 857 882 H 45 | |
| Black | 1H1 857 882 A 35 | |
| beaver | 1H1 857 881 A Q 05 | |
| mauritius blue | 1H1 857 881 A H 45 | |
| Black | 1H1 857 881 A A 35 | |
| beaver | 1H1 857 881 Q 05 | |
| Two-point safety belt Knee padding F >> 1 H-R-012 658 front "USA" front | — | |
| - | Clip | 1H0 858 263 |
| - | Cover | 1H0 880 739 |
| - | Hexagon bolt 7/16"X 20 7/16"X 20 | 3B0 857 799 |
| - | Cover cap | 811 857 845 |
| - | hex. nut M 10 X 1,25 M 10 X 1,25 | N 902 988 02 |
| - | Washer A 8,4 A 8,4 | N 011 525 13 |
| - | Hexagon nut M 8.0 M 8.0 | N 011 008 30 |
| - | Hexagon bolt 7/16"X 20 7/16"X 20 | 3B0 857 799 |
| (1) | Anchor plate | 1HM 880 553 |
| (10) | Knee padding diesel eng. | 1H1 857 881 A |
| (10) | Knee padding | 1H1 857 881 |
| (3) | Two-point safety belt withbelt latch | 1HM 880 703 D |
| (3) | Two-point safety belt withbelt latch | 1HM 880 703 E |
| (4) | Lap belt | 1HM 880 708 |
| (9) | Belt latch | 1HM 880 794 |
| 10 | Knee padding | 1H1 857 882 |
| 12 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 902 412 03 |
| 4 | Lap belt | 1HM 880 707 |
| 5 | Securing bracket | 1H0 880 835 |
| 6 | Anchor plate | 1H0 880 727 |
| 7 | countersunk bolt M 8 X 14 M 8 X 14 | N 902 401 02 |
| 9 | Belt latch | 1HM 880 793 |
