Warning lights — Mk3 Golf Dash Panel Centre Console (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Distance sensor. Combi-instrument

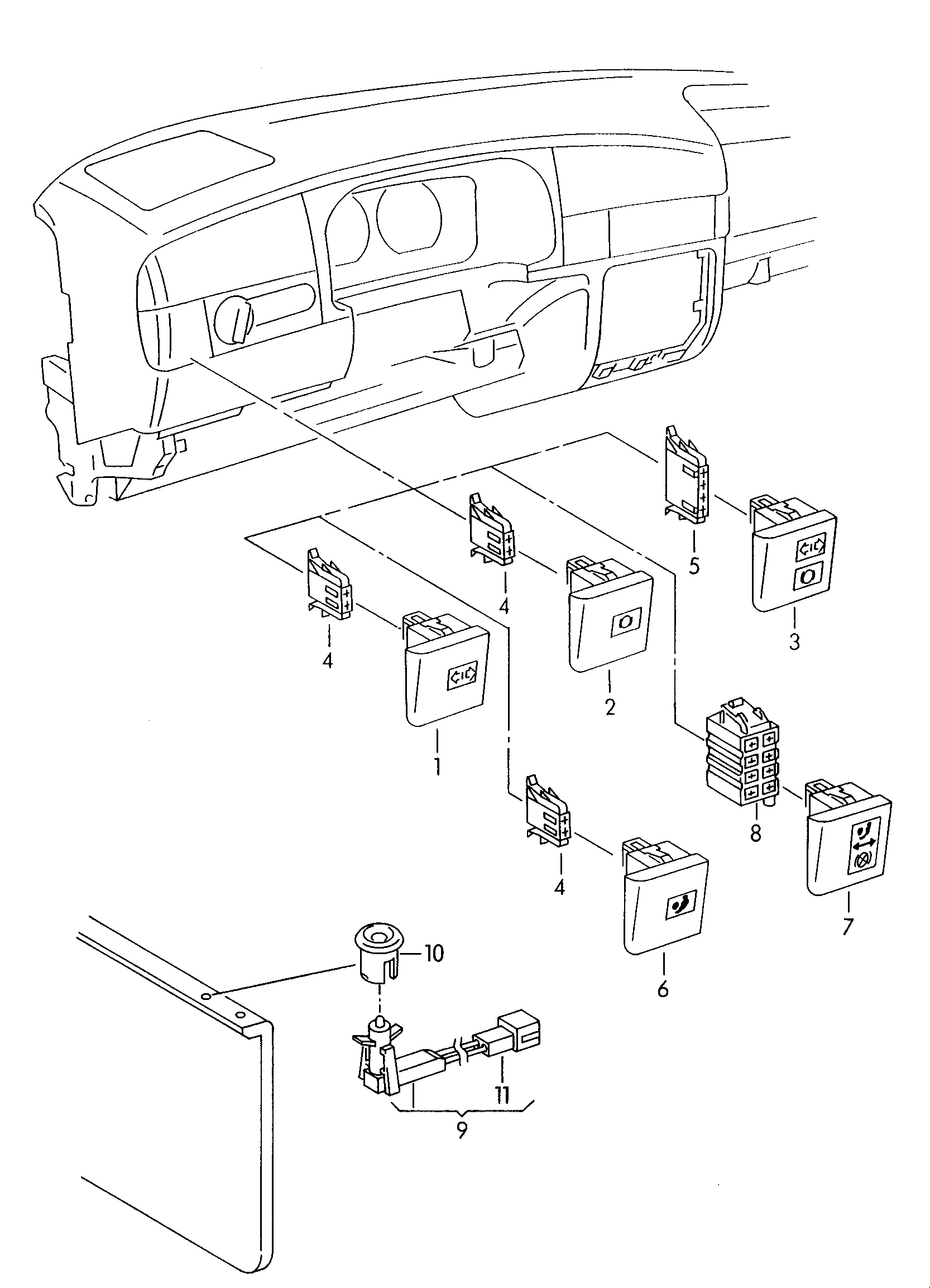

Warning lights for the Volkswagen Golf Mk3 (1997): factory exploded diagram 919085 from the Volkswagen ETKA parts catalogue, group 32 Dash panel / centre console, listing 21 OEM part numbers including 1H0 919 242 0 1C, 1H2 919 235 and 1H2 919 235 AA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 21 OEM part numbers across 21 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1H0 919 242 0 1C | |
| (1) | Control lamp for traileroperation | 1H2 919 235 |
| (7) | Control lamp for airbag,anti-lock braking system andsafety belt "J.." | 1H2 919 235 AA |
| (7) | Control lamp for airbagwith/without trailer function | 1H2 919 235 F |
| (7) | Control lamp for anti-lockbraking system with/withouttrailer operation and/orairbag | 1H1 919 235 AA |
| (7) | Control lamp for anti-lockbraking system with/withouttrailer operation and/orairbagfor models withside airbag | 1H1 919 235 AF |
| (7) | Control lamp for anti-lockbraking system with/withouttrailer operation and/orairbagfor models withside airbag | 1H2 919 235 AE |
| (7) | Control lamp for anti-lockbraking system with/withouttrailer operation and/orairbag | 1H2 919 235 T |
| (7) | Control lamp for airbag,anti-lock braking system andsafety belt "J.." | 1H1 919 235 AB |
| (8) | Flat contact housing | 1J0 972 706 |
| (8) | Flat contact housingfor models withside airbag | 535 972 706 |
| (8) | Flat contact housing | 535 972 707 |
| (8) | Flat contact housing | 191 972 706 |
| 1 | Control lamp for traileroperation | 1H1 919 235 |
| 10 | guide sleeve | 1H0 919 242 |
| 11 | Flat contact housing | 1J0 973 332 |
| 11 | Flat contact housing | 1H0 973 131 A |
| 4 | Flat contact housing | 191 972 702 |
| 4 | Flat contact housing withcontact locking mechanism | 1J0 972 702 |
| 7 | Control lamp for airbagwith/without trailer function | 1H1 919 235 G |
| 9 | warning lampfor vehicles with anti-theftalarm system and imobiliser | 1H0 919 238 |
