Glow plugcurrent rail spark plugignition — Mk3 Golf Engine Electrics (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Ignition lead. Spark plug. Glow plug. current rail. ignition transformer

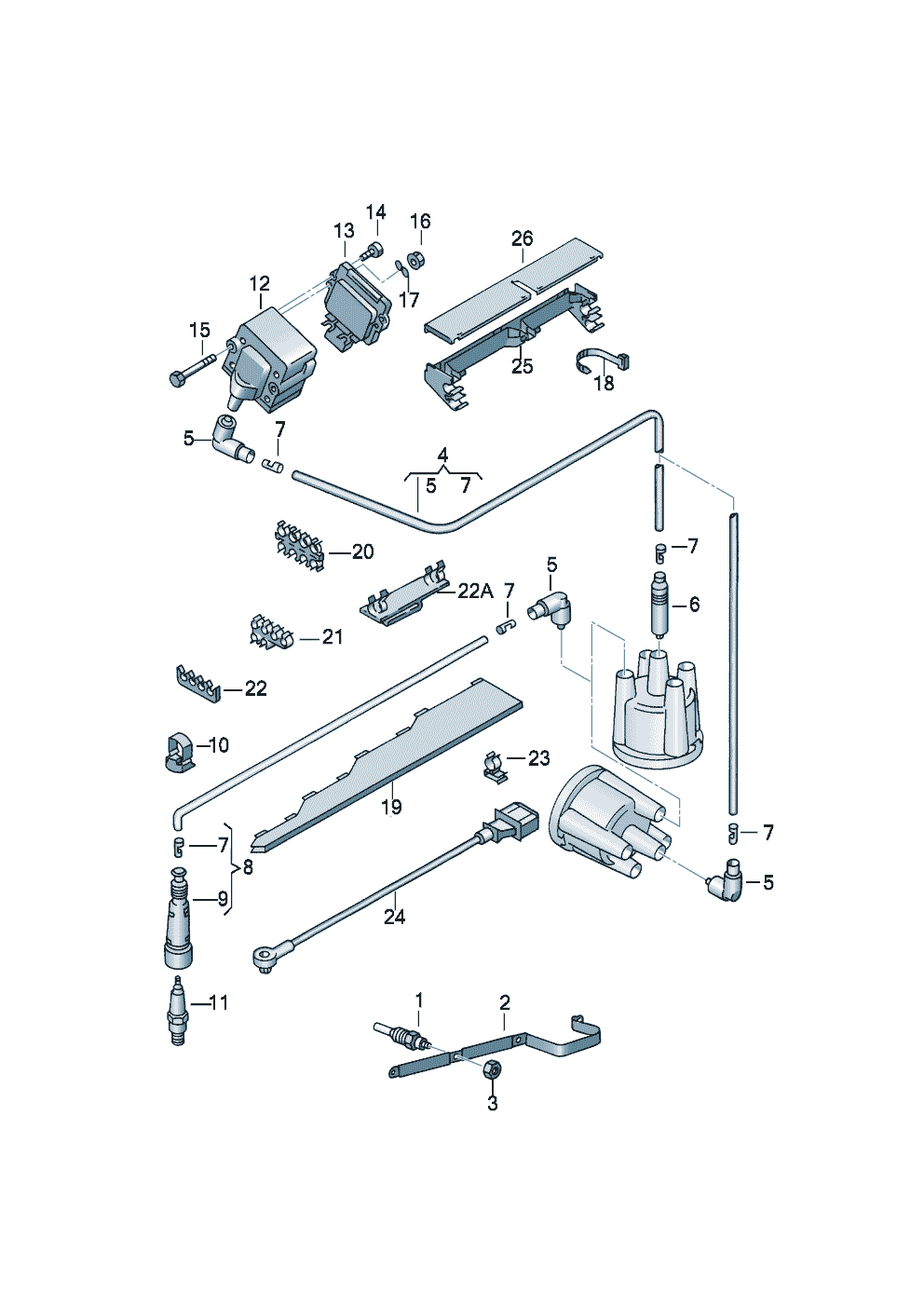

Glow plugcurrent rail spark plugignition for the Volkswagen Golf Mk3 (1997): factory exploded diagram 905010 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 64 OEM part numbers across 68 catalogued positions including 032 905 430 R, 032 905 430 T and N 018 385 1. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ABF, ACC, ADY and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 64 OEM part numbers across 68 numbered positions.
| № | Description | Part number |
|---|---|---|
| Glow plugcurrent rail Diesel eng.+1 Y,AAZ,1 Z,AHU,AFN,ALE 1ZAAZAFNAHUALE | — | |
| Glow plugcurrent rail Spark plugignition transformerignition lead diesel eng.4-cylinder | — | |
| ignition leadignition transformer Spark plug 4-cylinder+ABF,ADZ,AAMADY,AEP,AFT,AGG,ACC,AEE,AEX,AKS,APQ ACCADZAEEAEPAEXAFTAGGAKSAPQ | — | |
| - | ignition lead AEX,AEE AEEAEX | 032 905 430 R |
| - | ignition lead AEX,AEE AEEAEX | 032 905 430 T |
| - | ignition cable in coils of 50 m'order unit 50' D 1 D 1 | N 018 385 1 |
| - | ignition lead AEX,AEE AEEAEX | 032 905 430 Q |
| - | ignition lead AEX,AEE AEEAEX | 032 905 430 P |
| (1) | Glow plug M 10 X 1 X 25 1 Z,AHU,AEY,AFN,ALE M 10 X 1 X 25 1ZAEYAFNAHUALE | N 101 401 05 |
| (1) | Glow plugfor vehicles with glow plugheater M 12 X 1,25 X 21 1 Z,ALE,AHU, M 12 X 1,25 X 21 1ZAHUALE | N 103 021 02 |
| (1) | Glow plugfor vehicles with glow plugheater M 12 X 1,25 X 21 1 Y,AAZ,AFNAEY M 12 X 1,25 X 21 1YAAZ | N 102 130 01 |
| (11) | spark plug 'longlife' AKS AKS | 101 000 033 AC |
| (11) | spark plug 'longlife' AAM AAM | 101 000 036 AB |
| (11) | spark plug 'longlife' AAM AAM | 101 000 040 AC |
| (11) | spark plug 'longlife' EA 1,0 ADZ,AEX,AEE,ACC EA 1,0 ACCADZAEEAEX | 101 000 050 AC |
| (11) | spark plug 'longlife' EA 1,0 AAM EA 1,0 AAM | 101 000 050 AB |
| (11) | spark plug 'longlife' ABF ABF | 101 000 045 AA |
| (11) | spark plug 'longlife' ABF ABF | 101 000 033 AA |
| (11) | spark plug 'longlife' ADZ,ADY,AEP,AEE,AEX,AGG,ACC,AKR,APQ ACCADYADZAEEAEPAEXAGGAKRAPQ | 101 000 036 AA |
| (11) | spark plug 'longlife' ADZ,ADY,AEP,AEE,AEX,AGG,ACC,AKR,APQ ACCADYADZAEEAEPAEXAGGAKRAPQ | 101 000 040 AD |
| (11) | spark plug 'longlife' AFT AFT | 101 000 033 AA |
| (12) | ignition transformer AEX,ADY,AAM,ADZ,ABF,AGG,AEE,AKR,AFT AAMABFADYADZAEEAEXAFTAGGAKR | 6N0 905 104 |
| (19) | guide tube AEE,AEX,APQ AEEAEXAPQ | 032 905 487 B |
| (19) | guide tube AFT,AKS AFTAKS | 037 905 487 B |
| (26) | Cover Intake manifold ABF ABF | 037 905 497 A |
| (4) | ignition lead B 1 X 460 MM ADY,AEP,AGG,ADZ,AAM,AEE,AKR B 1 X 460 MM AAMADYADZAEEAEPAGGAKR | N 100 702 10 |
| (4) | ignition lead 300 MM ABF 300 MM ABF | N 100 529 01 |
| (4) | ignition lead B 4 X 440 AFT,AKS,AEX,APQ B 4 X 440 AEXAFTAKSAPQ | N 100 529 03 |
| (7) | connector for ignition leads | 030 905 423 A |
| (8) | ignition lead AFT,AKS AFTAKS | N 103 164 04 |
| (8) | ignition lead B 1 X 460 AAM,AEP,ADY,ADZ,AGG,AKR B 1 X 460 AAMADYADZAEPAGGAKR | N 100 502 05 |
| (8) | ignition lead B 6 X 400 APQ B 6 X 400 APQ | N 100 528 15 |
| (8) | No longer availableignition lead replacement: B 6 X 600032 905 430 P 032 905 430 Q 032 905 430 R 032 905 430 T AEX,AEE B 6 X 600032 905 430 P 032 905 430 Q 032 905 430 R 032 905 430 T AEEAEX | — |
| (8) | ignition lead B 6 X 600 AEX,AEE B 6 X 600 AEEAEX | N 100 528 17 |
| (8) | ignition lead B 6 X 280 APQ B 6 X 280 APQ | N 100 528 05 |
| (8) | ignition lead AFT,AKS AFTAKS | N 103 164 03 |
| (8) | ignition cable (screened)repair set AAM,AEP,ADY,ADZ,AGG,AKR AAMADYADZAEPAGGAKR | 200 998 031 |
| (8) | ignition lead B 6 X 580 APQ B 6 X 580 APQ | N 100 528 09 |
| (8) | ignition lead AEK AEK | N 102 436 07 |
| (8) | ignition lead AFT,AKS AFTAKS | N 103 164 01 |
| (8) | ignition lead AFT,AKS AFTAKS | N 103 164 02 |
| (8) | ignition lead B 1 X 800 MM ABF B 1 X 800 MM ABF | N 100 526 20 |
| (8) | ignition lead B 6 X 440 APQ B 6 X 440 APQ | N 100 528 08 |
| (9) | spark plug connector ABF ABF | 027 905 447 |
| 1 | Glow plugfor vehicles with glow plugheater M 12 X 1,25 X 21 1 Y,AAZ,AFNAEY M 12 X 1,25 X 21 1YAAZ | N 102 130 02 |
| 10 | Pull out ring ABF ABF Type 19 makes this → | 054 905 448 |
| 13 | ignition transformer | 6N0 905 104 |
| 14 | fillister hd. bolt M 5 X 12 M 5 X 12 | N 014 133 5 |
| 15 | Oval hexagon socket head bolt M 6 X 15 M 6 X 15 | N 100 292 06 |
| 16 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 17 | Spring washer 6,4 X 17 6,4 X 17 | 211 805 243 |
| 18 | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| 2 | current rail | 068 972 095 B |
| 20 | Bracket ABF ABF | 035 133 689 |
| 21 | Bracket ABF ABF | 026 133 689 C |
| 22 | retainer for ignition cables AAM,ADZ,ADY,AEP,AGG AAMADYADZAEPAGG | 037 905 471 |
| 22 | retainer for ignition cables AAM,ADZ,ADY,AEP,AGG AAMADYADZAEPAGG | 035 905 471 |
| 22A | Bracket ADY,AEP ADYAEP | 1H0 971 787 E |
| 25 | Cable guide - lower part ADZ ADZ | 051 906 465 |
| 26 | Cable guide - upper part ADZ ADZ | 051 906 467 |
| 3 | hexagon nut, self-locking M 5 M 5 | N 022 154 4 |
| 3 | hexagon nut, self-locking M 5 M 5 | N 022 154 1 |
| 4 | ignition lead B 4 X 520 B 4 X 520 | N 100 529 07 |
| 5 | connector (screened) forignition leads ABF,AEE,AEXADY,AEP,AGG,AKR,APQAAM,ADZ ABFADZAEEAEPAGGAKR | 036 035 281 A |
| 6 | connector (screened) forignition leads AAM,ADZADY,AEP,AGG,AKR AAMAEPAGGAKR | 052 035 281 |
| 9 | spark plug connector AAM,ADZ,ADY,AEP,AEE,AEX,AGG AAMADYADZAEEAEPAEXAGG | 036 035 255 E |
| 9 | spark plug connector AAM,ADZ,ADY,AEP,AEE,AEX,AGG AAMADYADZAEEAEPAEXAGG | 036 035 255 J |
| 9 | spark plug connector AAM,ADZ,ADY,AEP,AEE,AEX,AGG AAMADYADZAEEAEPAEXAGG | 032 035 255 |
