Air filter — Mk3 Golf Engine (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Air filter

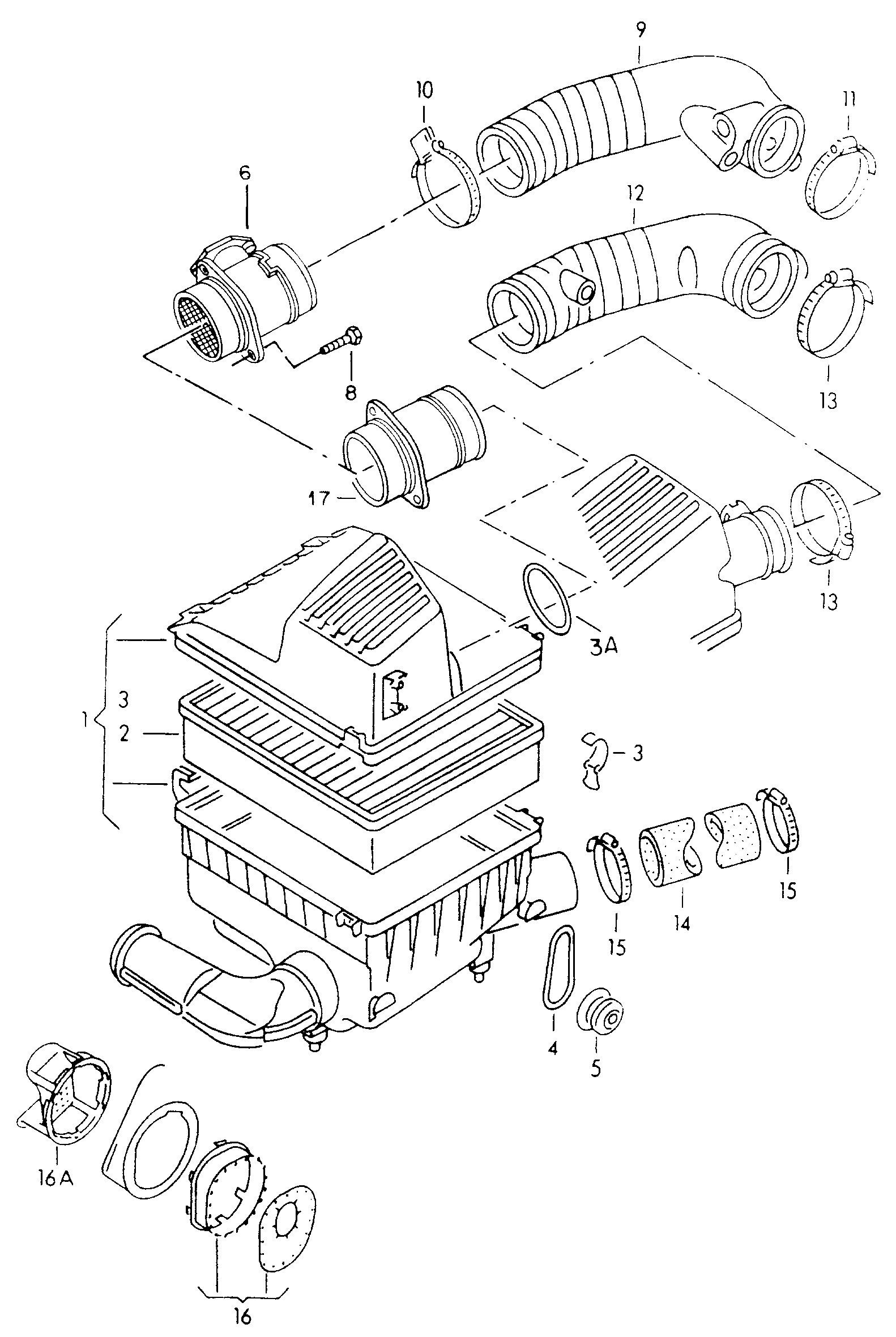

Air filter for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 129022 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 30 OEM part numbers across 31 catalogued positions including 035 129 630 B, 1H0 131 128 A and 113 129 832. Parts on this plate carry the engine codes ABA and ADC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 30 OEM part numbers across 31 numbered positions.
| № | Description | Part number |
|---|---|---|
| Air filter 2.0 Ltr. ABA,ADC 2.0 Ltr. ABAADC | — | |
| - | Double temperature controller | 035 129 630 B |
| - | Intake manifold F 1 H-T-140 500>>* CALIFORNIA+ABA | 1H0 131 128 A |
| - | Seal | 113 129 832 |
| - | Retaining plate | 113 129 830 |
| (1) | Air filter F 1 H-T-140 500>>* CALIFORNIA+ABA | 1HM 129 607 H |
| (1) | Air filter ABA ABA | 1HM 129 607 E |
| (1) | Air filter ADC ADC | 1HM 129 607 G |
| (2) | Air filter element "USA";"CDN"+ABA | 1H0 129 620 |
| (4) | Clamping ring | 1H0 129 833 |
| (5) | Bracket | 1H0 129 673 B |
| (6) | Air mass meter F >> 1 H-S-999 000 "CDN"+ABA"USA"+ABA | 037 906 461 A |
| (6) | Air mass meter "USA"+ABA | 037 906 461 CX |
| (6) | Air mass meter F 1 H-P-006 273>> 1 H-R-011 803 ABA ABA | 037 906 461 A |
| (6) | Air mass meter F 1 H-T-000 001>> "USA"+ABA | 037 906 461 C |
| (9) | air hose F >> 1 H-P-006 272* | 1HM 129 627 |
| (9) | air hose F 1 H-R-000 760>> 1 H-S-999 000 F 1 H-R-000 760>>F 1 H-P-007 110>> "USA"+ABA"USA"+ABA"MEX"+ABA | 1HM 129 627 B |
| (9) | air hose F 1 H-T-000 001>> "USA"+ABA | 1HM 129 627 D |
| (9) | air hose F 1 H-P-006 273>> 1 H-P-007 109* | 1HM 129 627 A |
| 10 | Clamp 7,5 X 72-82 7,5 X 72-82 | 191 129 647 A |
| 11 | Hose clamp 60-80 X 9 X 0,5 60-80 X 9 X 0,5 | N 024 522 3 |
| 14 | warm air hose 50,8 X 550 MM 50,8 X 550 MM | 027 129 627 E |
| 15 | Hose clamp 40-60 X 9 X 0,5 40-60 X 9 X 0,5 | N 024 504 4 |
| 16 | Gaiter | 1H0 129 954 A |
| 16A | Damper | 1H0 129 955 |
| 17 | connection piece ADC ADC | 1HM 129 464 |
| 2 | Air filter element "MEX" | 1HM 129 620 |
| 3 | Lock bar MANN+HUMMEL MANN+HUMMEL | 191 129 797 A |
| 3A | seal ring 69 X 6 ABA 69 X 6 ABA | 028 129 646 |
| 6 | Air mass meter F >> 1 H-P-006 272* ABA ABA | 037 906 461 A |
| 8 | Hexagon bolt M 6 X 15 M 6 X 15 | N 010 215 27 |
